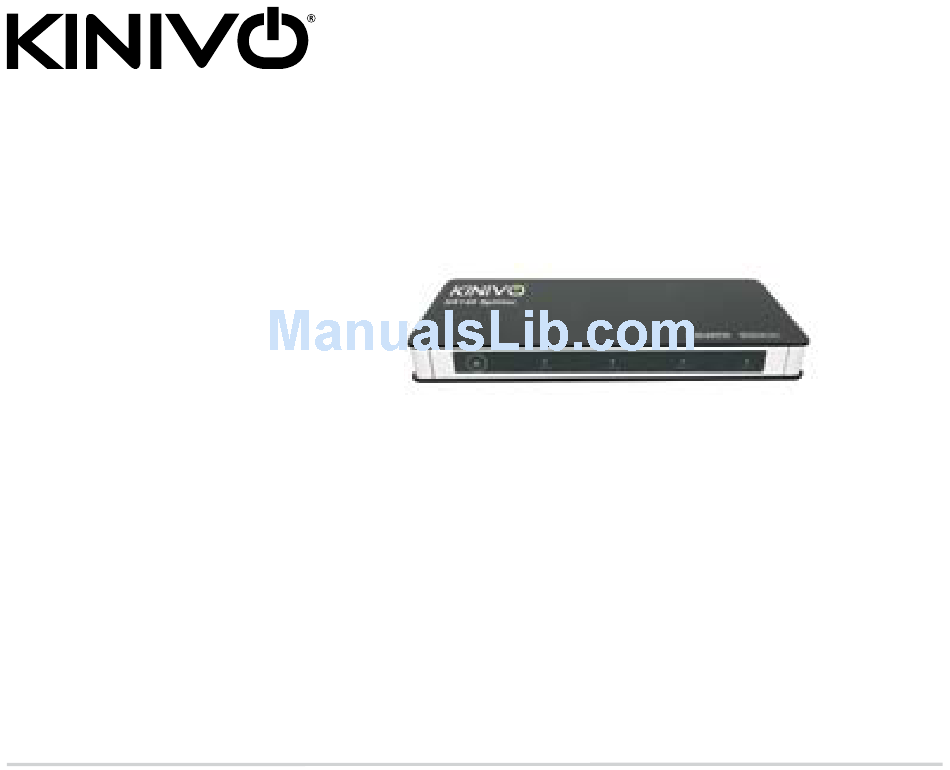

HS140 HDMI Splitter
User Manual
© 2012 Kinivo LLC. All rights reserved.
Kinivo is a trademark of Kinivo LLC. Bluetooth word mark and the Bluetooth logo are registered
trademarks of Bluetooth SIG. All other trade names are registered trademarks of respective
manufacturers. This manual may not be copied in any media or form without the written consent of
Kinivo LLC.
Kinivo Product Support
Online : http://support.kinivo.com
Email : support@kinivo.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kinivo HS140
Summary of Contents for Kinivo HS140
- Page 1 User Manual © 2012 Kinivo LLC. All rights reserved. Kinivo is a trademark of Kinivo LLC. Bluetooth word mark and the Bluetooth logo are registered trademarks of Bluetooth SIG. All other trade names are registered trademarks of respective manufacturers. This manual may not be copied in any media or form without the written consent of Kinivo LLC.
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions.................... 3 Function ..........................3 Installation ........................... 4 LED Indication ........................4 Specifications ........................5 Charts ........................... 6 Warranty ..........................7 Online Support / Contact Us ....................8 Kinivo HS140 HDMI Splitter... -
Page 3: Important Safety Instructions
Protect power cord from being pinched, particularly near plug points. Only use attachments/accessories specified by manufacturer. Function Simultaneously distributes HDMI signal to multi display devices. HS140 – HDMI 1*4 Splitter - Split one HDMI input signal to four HDMI output signals Kinivo HS140 HDMI Splitter... -
Page 4: Installation
This device is powered by a 5v external power supply (included) Note: Please insert or pull HDMI cable with caution. Do not exert force while inserting or removing cable. LED Indication Blue LED indicates “Active signal path” No LED indicates “No input signal” Kinivo HS140 HDMI Splitter... -
Page 5: Specifications
-15°C to +55°C, 5°F to 131°F Operating Humidity 5% - 90% RH (No condensation) Product Dimension HS140 – 10.2” x 4.5” x 1.2”, 260mm x 115mm x 27mm Supports LPCM 7.1, Dolby-AC3, DTS 7.1, DSD/Dolby True Supports Audio Format HD, DTS-HD Master Audio... -
Page 6: Charts
HDMI OUT 3 LED OUT 3 HDMI Display Device 2 HDMI OUT 2 LED OUT 2 HDMI Display Device 1 HDMI OUT 1 LED OUT 1 HDMI Signal Source HDMI In Power Switch with LED DC 5V Kinivo HS140 HDMI Splitter... -
Page 7: Warranty
In the unlikely event that the product proves to be defective, Kinivo will repair or replace the product free of charge. If replacement is required and if Kinivo then no longer carries the same product, then Kinivo reserves the right to substitute the product with a replacement product of like quality and size, suitable for the intended use. -
Page 8: Online Support / Contact Us
Online Support / Contact Us Please visit us at support.kinivo.com or www.kinivo.com for support information, downloads and how-to’s. You may also reach us via email or live chat (details below). Kinivo Product Support Email : support@kinivo.com Live chat : http://support.kinivo.com... - Page 9 This page intentionally left blank...
- Page 10 Kinivo Product Support Made in china Online : http://support.kinivo.com Email : support@kinivo.com...
