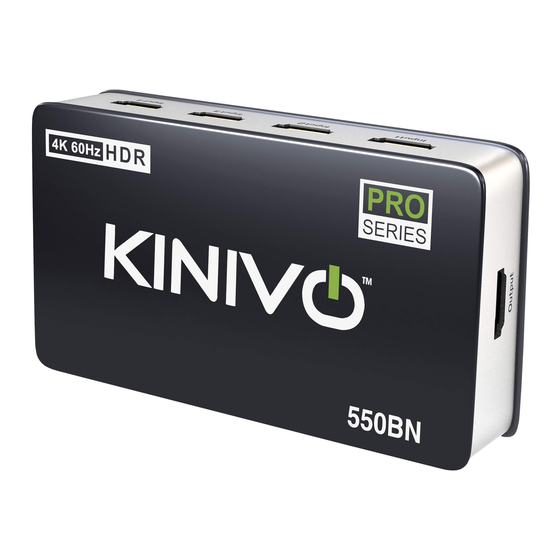

Kinivo 550BN 4K HDMI Switch
User Manual
© 2018 Kinivo, Inc. All rights reserved.
Kinivo is a trademark of Kinivo, Inc. HDMI word mark and the
HDMI logo are registered trademarks of HDMI Consortium.
All other trade names are registered trademarks of respective
manufacturers. This manual may not be copied in any media
or form without the written consent of Kinivo, Inc.
Kinivo Product Support
Online : http://support.kinivo.com
Email : support@kinivo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO 550BN and is the answer not in the manual?

Questions and answers

Summary of Contents for Kinivo PRO 550BN

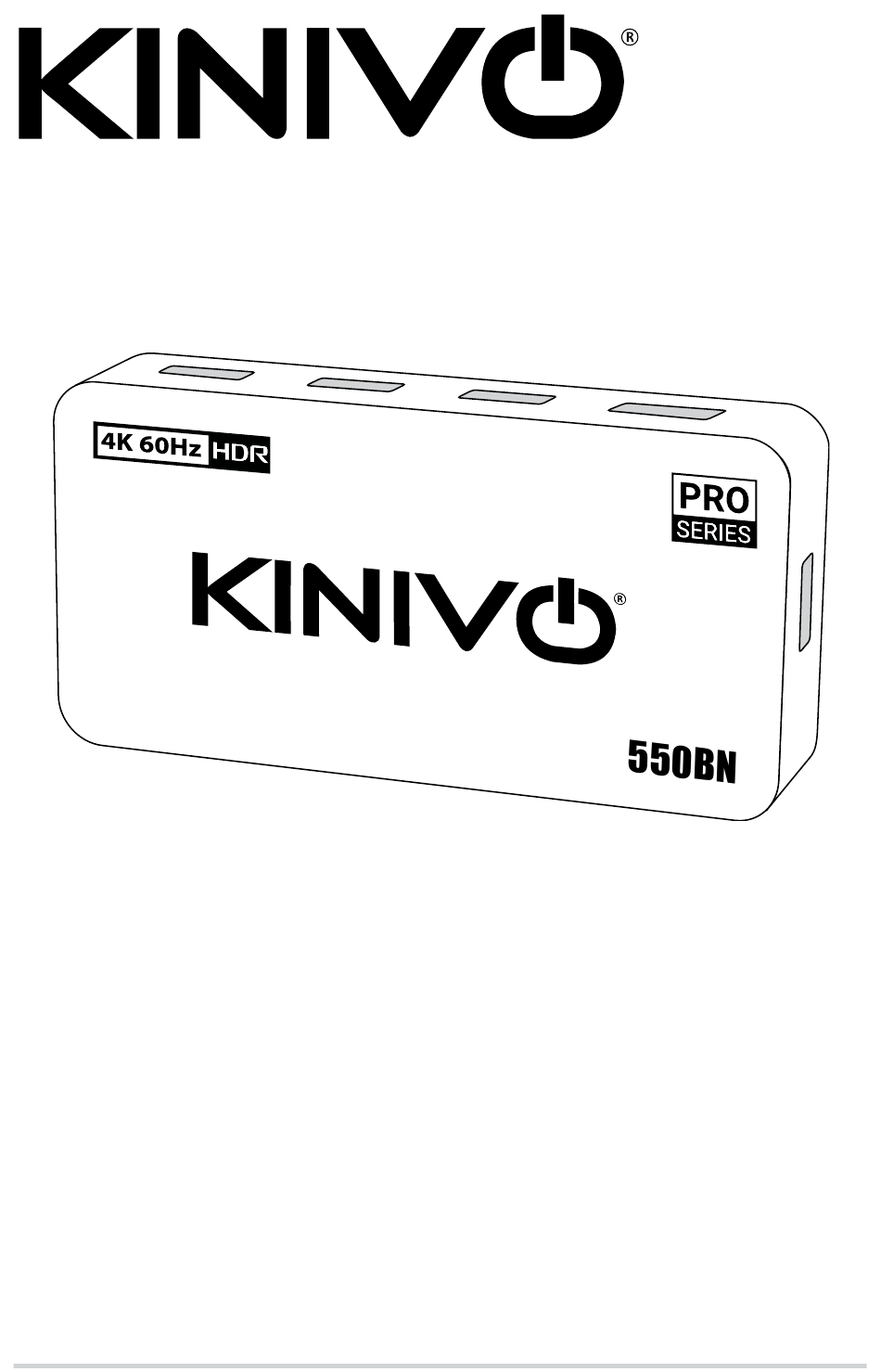

  • Page 1 Kinivo 550BN 4K HDMI Switch User Manual © 2018 Kinivo, Inc. All rights reserved. Kinivo is a trademark of Kinivo, Inc. HDMI word mark and the HDMI logo are registered trademarks of HDMI Consortium. All other trade names are registered trademarks of respective manufacturers.
  • Page 2 Sprachen verfügbar Español: Gracias por elegir Kinivo. Nuestros manuales de usuario están disponibles en varios idiomas en http:// downloads.kinivo.com Italiano: La ringraziamo per aver scelto Kinivo. I nostri manuali utente sono disponibili presso http://downloads. kinivo.com...
  • Page 3: Table Of Contents

    Table of Contents Introduction ..........4 Important Safety Instructions...... 5 Installation ............. 6 Operation ............11 Auto Switching ..........13 Specifications ..........14 Frequently Asked Questions (FAQ) ....15 FCC Statement ..........16 Warranty ............18 Online Support / Contact Us ......20...
  • Page 4: Introduction

    Thank You Dear Customer, Thank you for choosing Kinivo. Our company’s goal is to provide high-quality products and attentive customer service to valued customers like you. We hope to meet and exceed your expectations! Our development team continues to work hard producing high-quality, innovative products that will help you stay on the leading edge.
  • Page 5: Important Safety Instructions

    Do not install near any heat sources such as radiators, stoves, heat registers etc. Unplug during lightning storms or when unused for a long period of time. Protect power cord from being pinched, particularly near plug points. Kinivo 550BN 4K HDMI Switch...
  • Page 6: Installation

    Front and Side Panel Controls SWITCH Output Input 1 Input 2 Input 3 Input 4 Input 5 Power 1 Power Indicator 3 HDMI Output Indicator 2 IR Remote Sensor 4 to 8 HDMI Input Indicator Kinivo 550BN 4K HDMI Switch...
  • Page 7 Back and Side Panel Connectors Input 1 Input 2 Input 3 Input 4 HDMI Input 1 HDMI Input 2 HDMI Input 3 HDMI Input 4 Input 5 + DC 5V HDMI Input 5 DC Power Input Output HDMI Output Kinivo 550BN 4K HDMI Switch...
  • Page 8 HDMI Input 2 HDMI Input 5 HDMI Input 3 Screw Select a specific HDMI Input by choosing 1, 2, 3, 4 or 5 Press ‘Up’ or ‘Down’ buttons to select the previous or next input source. Kinivo 550BN 4K HDMI Switch...
  • Page 9 Connect Devices (Game Console, DVD Player, Streaming Media Player, etc) to the input ports on the HDMI Switch. Plug the included power adapter to the HDMI Switch and connect it to a AC power outlet. Kinivo 550BN 4K HDMI Switch...
  • Page 10 Connection Diagram HDMI In HDMI Cable HDTV Output Input 1 Input 2 Input 3 Input 4 HDMI Cables Game Console DVD Player Apple TV Cable Box or DVR Kinivo 550BN 4K HDMI Switch...
  • Page 11: Operation

    When the Switch senses audio/ video transmission on one of its HDMI Input ports, the corresponding HDMI Input Indicator is illuminated in Red color. When an HDMI Input is selected for use, the Kinivo 550BN 4K HDMI Switch...
  • Page 12 Input. Pressing the ‘Down’ button will move to the next connected HDMI Input. There are also direct input selection buttons on the remote control (Buttons 1, 2, 3, 4 & 5). Pressing each button selects the corresponding HDMI Input port, no Kinivo 550BN 4K HDMI Switch...
  • Page 13: Auto Switching

    HDMI signal, even when they appear to be turned off or asleep. These devices transmit a blank HDMI signal or black screen to the TV through our switch, even when asleep or turned off. Kinivo 550BN 4K HDMI Switch...
  • Page 14: Specifications

    8 seconds. The HDMI Output LED will flash 4 times and turn Blue. Note: Auto Switching is enabled by default. Specifications Supported Resolutions 4K 60Hz / 4K 30Hz / 1080p HDMI Version Kinivo 550BN 4K HDMI Switch...
  • Page 15: Frequently Asked Questions (Faq)

    1. What do I do if I have a HDCP error? HDCP errors are usually caused by syncing/ handshake issues. Simply unplug all your devices from the Switch. Unplug the Switch from the power source. Kinivo 550BN 4K HDMI Switch...
  • Page 16: Fcc Statement

    3. What do I do if Auto Switching is not working as advertised? Refer to “Auto Switching” section. FCC Statement This equipment has been tested and found to comply Kinivo 550BN 4K HDMI Switch...
  • Page 17 Consult the dealer or an experienced radio/ television technician for additional suggestions. You are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate such equipment. Kinivo 550BN 4K HDMI Switch...
  • Page 18: Warranty

    In the unlikely event that the product proves to be defective, Kinivo will repair or replace the product free of charge. If replacement is required and if Kinivo then no longer carries the same...
  • Page 19 Kinivo reserves the right to substitute the product with a replacement product of like quality and size, suitable for the intended use. This warranty is limited to repair or replacement of the mentioned product only, is non-transferable and...
  • Page 20: Online Support / Contact Us

    Online Support / Contact Us Please visit us at support.kinivo.com or www.kinivo.com for support information, downloads and how-to’s. You may also reach us via email or live chat (details below). Kinivo Product Support US Toll Free Number: 1-855-454-6486 Email : support@kinivo.com Live chat : http://support.kinivo.com...
