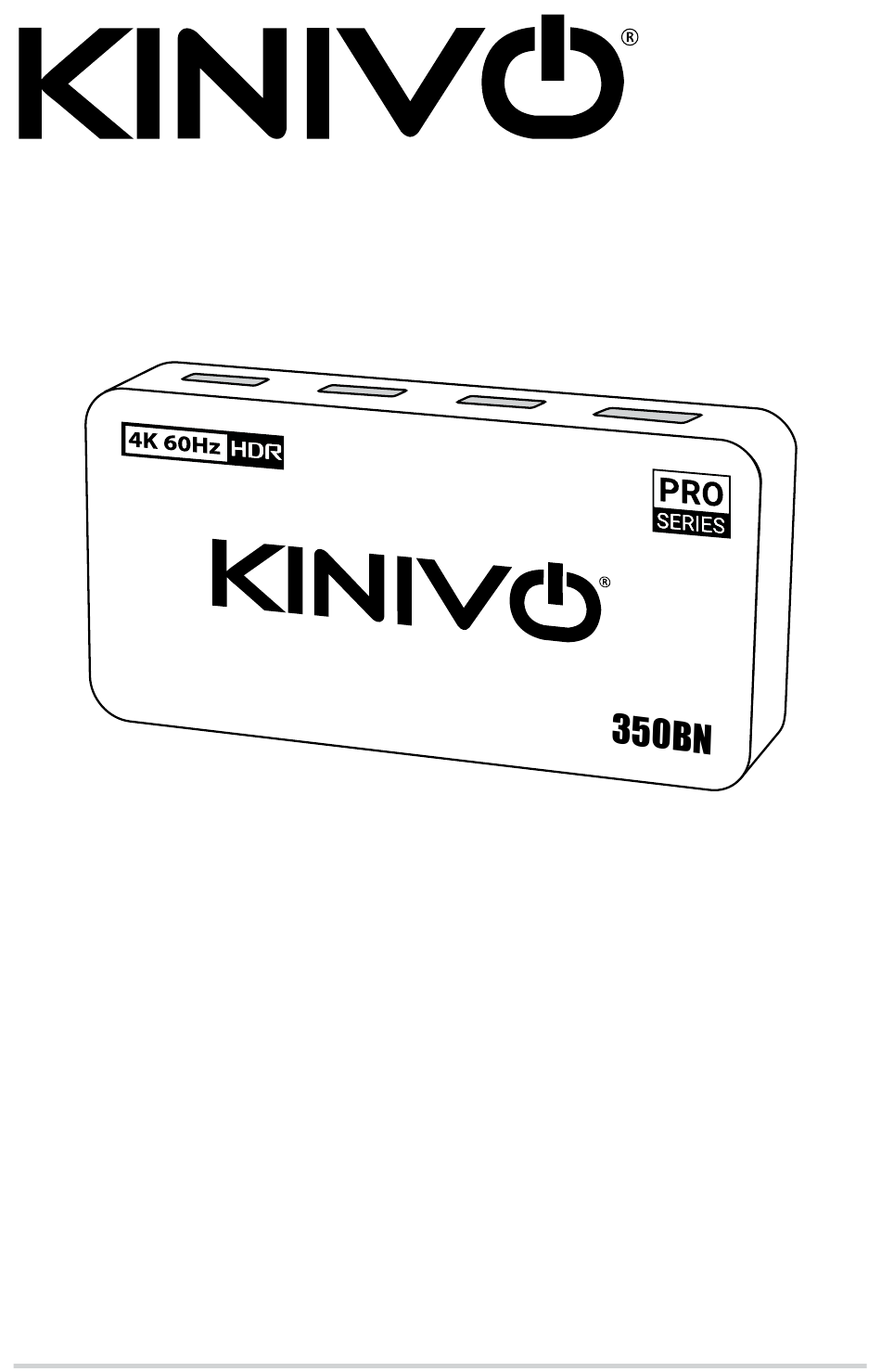

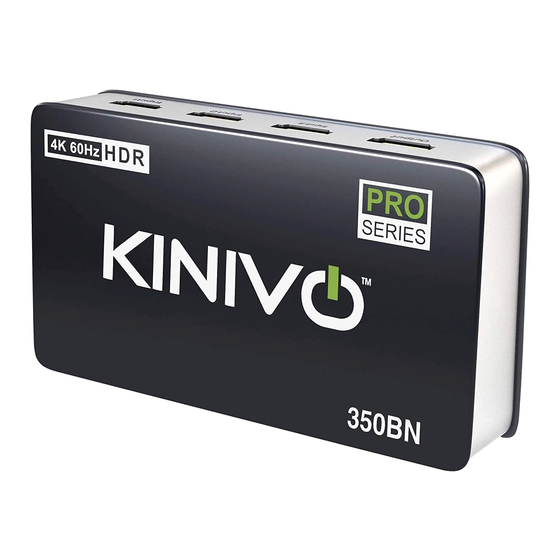

Kinivo 350BN 4K HDMI Switch
User Manual
© 2018 Kinivo, Inc. All rights reserved.
Kinivo is a trademark of Kinivo, Inc. HDMI word mark and the
HDMI logo are registered trademarks of HDMI Consortium.
All other trade names are registered trademarks of respective
manufacturers. This manual may not be copied in any media
or form without the written consent of Kinivo, Inc.
Kinivo Product Support
Online : http://support.kinivo.com
Email : support@kinivo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 350BN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kinivo 350BN

  • Page 1 Kinivo 350BN 4K HDMI Switch User Manual © 2018 Kinivo, Inc. All rights reserved. Kinivo is a trademark of Kinivo, Inc. HDMI word mark and the HDMI logo are registered trademarks of HDMI Consortium. All other trade names are registered trademarks of respective manufacturers.
  • Page 2 Sprachen verfügbar Español: Gracias por elegir Kinivo. Nuestros manuales de usuario están disponibles en varios idiomas en http:// downloads.kinivo.com Italiano: La ringraziamo per aver scelto Kinivo. I nostri manuali utente sono disponibili presso http://downloads. kinivo.com...
  • Page 3: Table Of Contents

    Table of Contents Introduction ........... 4 Important Safety Instructions....... 5 Installation ............6 Specifications ..........11 FAQ Frequently Asked Questions ....13 Operation ............15 Automatic Input Selection ......16 How to Enable or Disable Auto Switching ..18 FCC Statement ..........18 Warranty ............
  • Page 4: Introduction

    Yours Sincerely, Kinivo Introduction The Kinivo 350BN 4K HDMI switch enables up to three HDMI source devices (Such as the DVD player, cable box, gaming console etc.) to be connected to a single HDMI input port on your HDTV or video projector. It can be...
  • Page 5: Important Safety Instructions

    Do not install near any heat sources such as radiators, stoves, heat registers etc. Unplug during lightning storms or when unused for a long period of time. Protect power cord from being pinched, particularly near plug points. Kinivo 350BN 4K HDMI Switch...
  • Page 6: Installation

    Only use attachments/accessories specified by manufacturer. Warning Installation Front and Side Panel Controls SWITCH Output Input 1 Input 2 Input 3 Power 1 Power Indicator 3 HDMI Output Indicator 2 IR Remote Sensor 4 to 6 HDMI Input Indicator Kinivo 350BN 4K HDMI Switch...
  • Page 7 Back and Side Panel Connectors Input 1 Input 2 Input 3 Output HDMI Input 1 HDMI Input 2 HDMI Input 3 HDMI Output + DC 5V DC Power Input Kinivo 350BN 4K HDMI Switch...
  • Page 8 Press ‘Up’ or ‘Down’ buttons to select the previous or next input source. Note: The remote control uses infrared light signal and requires direct line-of-sight to the IR Remote Sensor. Please make sure that the IR Remote Sensor is not blocked. Kinivo 350BN 4K HDMI Switch...
  • Page 9 DC IN jack of the HDMI Switch (Shown under ‘Side Panel Connector’ on Page 2). Plug the power adapter into an AC power outlet. Your HDMI switch is now connected and ready for use. Kinivo 350BN 4K HDMI Switch...
  • Page 10 Connection Diagram HDMI Cable HDMI In HDTV Input 1 Input 2 Input 3 Output HDMI Cables Game Console Apple TV DVD Player Kinivo 350BN 4K HDMI Switch...
  • Page 11: Specifications

    Input Active *N/A active port signal port *N/A: Not Applicable Specifications 4Kx2K@60Hz/ 4Kx2K@30Hz Supports /1920x1200@60Hz/1080P/ resolution 1080i/720P/576P/576i/480P/480i Supports deep 36 bit, and for 8-bit, 10-bit, 12-bit color up to deep color per channel Kinivo 350BN 4K HDMI Switch...
  • Page 12 LPCM/Dolby-AC3/DTS7.1/DSD/ Supported Dolby true HD/DTS-HD master audio format audio Input video signal: 0.5 -1.5 Volts P-P DC input volts 5 Volts P-P Power 2.5W Consumption Power supply DC 5V Max working 500mA current Kinivo 350BN 4K HDMI Switch...
  • Page 13: Faq Frequently Asked Questions

    Storage 5 ~95% RH (No Condensation) Humidity Warranty 1 Year Warranty FAQ Frequently Asked Questions 1. What do I do if I have a HDCP error? HDCP errors are usually caused by syncing/ handshake problems. Kinivo 350BN 4K HDMI Switch...
  • Page 14 3. What do I do if Automatic Switching is not working as advertised? Refer to “Automatic Input Selection” section on page 18 to understand how auto-switching works. Kinivo 350BN 4K HDMI Switch...
  • Page 15: Operation

    Operation HDMI Input Indicator The 350BN Switch has three HDMI Input indicator lights on its front panel. When the switch senses audio/ video transmission on one of its HDMI Input ports, the corresponding HDMI Input Indicator is illuminated in Red color. When an HDMI Input is selected for use, the corresponding HDMI Input Indicator is illuminated in Blue.
  • Page 16: Automatic Input Selection

    Automatic Input Selection When the 350BN 4K HDMI Switch is powered on for the first time, it senses input ports automatically and switches to the input port source automatically in the sequence 1 ->...
  • Page 17 Blu-ray player if the Apple TV falls next in the sequence 1 -> 2 -> 3. You can contact support@kinivo.com if you need help in deciding the best assignment of ports. As a first step, you will need to test your input devices (such as the cable box, Blu-ray player etc.) for the above mentioned non-...
  • Page 18: How To Enable Or Disable Auto Switching

    How to Enable or Disable Auto Switching Note: The 350BN auto switching function is enabled by default. When the auto switch function is enabled the Output LED will emit a blue light. To disable the auto switch function, press and hold the “switch” button on the front panel of the 350BN for approximately 8 seconds.
  • Page 19 This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions Kinivo 350BN 4K HDMI Switch...
  • Page 20: Warranty

    In the unlikely event that the product proves to be defective, Kinivo will repair or replace the product free of charge. If replacement is required and if Kinivo then no longer carries the same...
  • Page 21 Kinivo’s control. The warranty does not cover or provide for the reimbursement or payment of incidental or consequential damage resulting from breach of the limited warranty described above.
  • Page 22: Online Support / Contact Us

    Online Support / Contact Us Please visit us at support.kinivo.com or www.kinivo.com for support information, downloads and how-to’s. You may also reach us via email or live chat (details below). Kinivo Product Support Toll Free Number: 1-855-454-6486 Email : support@kinivo.com Live chat : http://support.kinivo.com...
