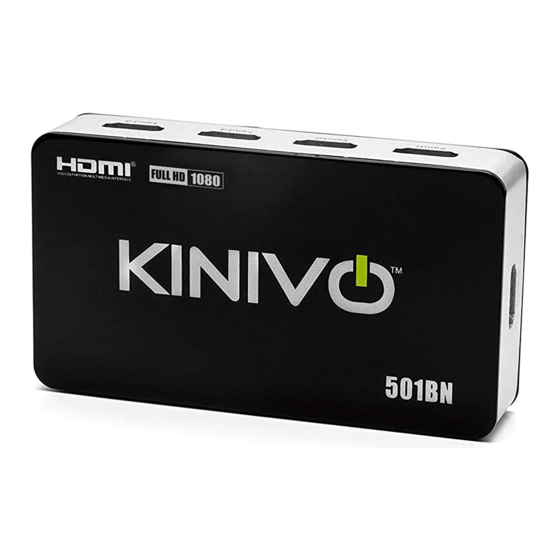

Model No: 501BN HDMI Switch – User Manual
Please read instructions carefully before operation - Important Safety Instructions
1) To prevent risk of electric shock, do not remove cover of the unit. Refer all servicing to qualified
service personnel only.
2) Do not use the switch near water.
3) Clean only with dry cloth.
4) Do not install or place this unit in a bookcase, built-in cabinet or in any other confined space.
Ensure the unit is well ventilated.
5) To prevent risk of electric shock or fire hazard, do not block the unit's ventilation openings.
6) Do not install near any heat sources such as radiators, stoves, heat registers etc.
7) Unplug during lightning storms or when unused for a long period of time.
8) Protect power cord from being pinched, particularly near plug points.
9) Only use attachments/accessories specified by manufacturer.
FCC Statement
This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in residential installations. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause interference to radio or television equipment reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Move the equipment away from the receiver.
Kinivo 501BN HDMI Switch Manual
CAUTION
RISK OF ELECTRC SHOCK.
DO NOT OPEN.
Page 1
Advertisement
Table of Contents
Related Manuals for Kinivo 501BN
Summary of Contents for Kinivo 501BN
- Page 1 Model No: 501BN HDMI Switch – User Manual Please read instructions carefully before operation - Important Safety Instructions 1) To prevent risk of electric shock, do not remove cover of the unit. Refer all servicing to qualified service personnel only.
- Page 2 Introduction The Kinivo HDMI switch enables up to five HDMI source devices (Such as the DVD player, cable box, gaming console etc.) to be connected to a single HDMI input port on your HDTV or video projector. It can be used to expand the number of HDMI ports on a single input HDMI equipped audio/video receiver.
- Page 3 3) HDMI Output Indicator 4) to 8) HDMI Input Indicator Back and Side Panel Connectors HDMI Output 1) to 4) HDMI Inputs; 5 Input located on the side panel beside the DC Power Jack Kinivo 501BN HDMI Switch Manual Page 3...
- Page 4 Your HDMI switch is now connected and ready for use. Note: The remote control uses infrared light signal and requires direct line-of-sight to the IR Remote Sensor. Please make sure that the IR Remote Sensor is not blocked. Kinivo 501BN HDMI Switch Manual Page 4...
- Page 5 1, 2, 3, 4 & 5. It bypasses the input ports without signal. During use, when there is a new active input, the 501BN HDMI Switch will sense this new active input with higher priority than the currently selected port.
- Page 6 Input DDC signal 5 volts p-p (TTL) Warranty The Kinivo 501BN switch product is covered by a limited 1 year hardware warranty. Please contact us at service@kinivo.com for warranty related information or any other questions. You can also visit www.kinivo.com for more information.
