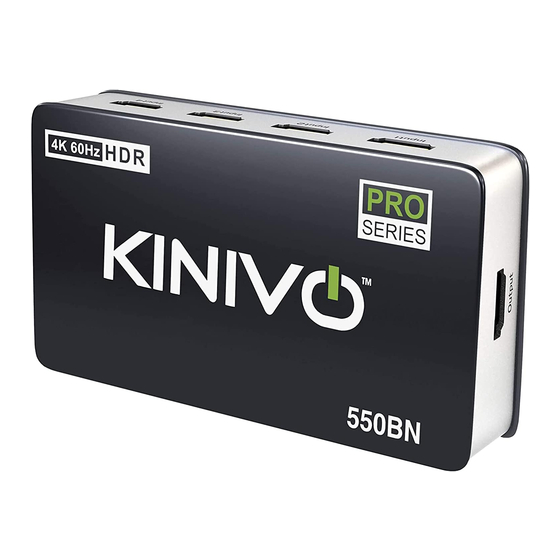

Kinivo 550BN HDMI Switch
User Manual
© 2015 Kinivo, Inc. All rights reserved.
Kinivo is a trademark of Kinivo, Inc. Bluetooth word mark and the Bluetooth logo are registered trademarks of
Bluetooth SIG. All other trade names are registered trademarks of respective manufacturers. This manual may
not be copied in any media or form without the written consent of Kinivo, Inc.
Kinivo Product Support
Online : http://support.kinivo.com
Email : support@kinivo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 550BN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kinivo 550BN

  • Page 1 © 2015 Kinivo, Inc. All rights reserved. Kinivo is a trademark of Kinivo, Inc. Bluetooth word mark and the Bluetooth logo are registered trademarks of Bluetooth SIG. All other trade names are registered trademarks of respective manufacturers. This manual may not be copied in any media or form without the written consent of Kinivo, Inc.
  • Page 2 English: Thank you for choosing Kinivo. Our user manuals are available in multiple languages at http:// downloads.kinivo.com français: Merci d’avoir choisi Kinivo. Nos modes d’emploi sont disponibles en plusieurs langues sur http:// downloads.kinivo.com Deutsch: Danke für die Wahl von Kinivo. Unsere Bedienungsanleitungen sind unter http://downloads.
  • Page 3: Table Of Contents

    Table of Contents Important Safety Instructions......................4 Introduction .............................5 Panel Description ..........................5 Front and Side Panel Controls ............................5 Back and Side Panel Connectors ..........................6 Remote Control .................................7 Typical Setup ..................................8 Connection Diagram ...............................8 LED Indication ..................................9 Specifications ...........................9 FAQ Frequently Asked Questions ....................11 Operation ............................12 HDMI Input Indicators ..............................12 Input Selection with the Front Panel Button ......................12...
  • Page 4: Important Safety Instructions

    Do not install near any heat sources such as radiators, stoves, heat registers etc. Unplug during lightning storms or when unused for a long period of time. Protect power cord from being pinched, particularly near plug points. Only use attachments/accessories specified by manufacturer. Warning Kinivo 550BN HDMI Switch...
  • Page 5: Introduction

    Introduction The Kinivo 550BN 4K HDMI switch enables up to three HDMI source devices (Such as the DVD player, cable box, gaming console etc.) to be connected to a single HDMI input port on your HDTV or video projector. It can be used to expand the number of HDMI ports on a single input HDMI equipped audio/video receiver.
  • Page 6: Back And Side Panel Connectors

    Back and Side Panel Connectors Input 1 Input 2 Input 3 Input 4 1) to 4) HDMI Inputs; 5 Input located on the side panel beside the DC Power Jack Output HDMI Output Kinivo 550BN HDMI Switch...
  • Page 7: Remote Control

    HDMI Input 5 DCPower Jack Remote Control Down Functioning Directly select a specific HDMI Input by choosing 1, 2, 3, 4 or 5 Press ‘Up’ or ‘Down’ buttons to select the previous or next input source. Kinivo 550BN HDMI Switch...
  • Page 8: Typical Setup

    Game Console Cable Box or DVR DVD Player Note: The remote control uses infrared light signal and requires direct line-of-sight to the IR Remote Sensor. Please make sure that the IR Remote Sensor is not blocked. Kinivo 550BN HDMI Switch...
  • Page 9: Led Indication

    36 bit, and for 8-bit, 10-bit, 12-bit deep color per Supports deep color up to channel Supports Supports Supports bandwidth up to 18Gbps and transfer bitrates up to 6 Gbps per channel Compatible with Standard HDMI devices Supports TMDS clock frequency range 25~600Mhz Kinivo 550BN HDMI Switch...
  • Page 10 ≤10m(1080P)/ 5m (4K) AWG24 HDMI standard cable Operating temperature range 0 to + 40°C (-41 to 95°F) Operating humidity range 5 to 90% RH (No Condensation) Storage Temperature -15 to 55°C Storage Humidity 5 ~95% RH (No Condensation) Warranty 1 Year Warranty Kinivo 550BN HDMI Switch...
  • Page 11: Faq Frequently Asked Questions

    HDMI cable. Try pressing the input number on the remote corresponding to where the input is connected 3. What do I do if Automatic Switching is not working as advertised? Refer to “Automatic Input Selection” section on page 13 to understand how auto-switching works. Kinivo 550BN HDMI Switch...
  • Page 12: Operation

    Operation HDMI Input Indicators The 550BN Switch has five HDMI Input indicator lights on its front panel. When the switch senses audio/video transmission on one of its HDMI Input ports, the corresponding HDMI Input Indicator is illuminated in Red color. When an HDMI Input is selected for use, the corresponding HDMI Input Indicator is illuminated in Blue.
  • Page 13: Automatic Input Selection

    Automatic Input Selection When the 550BN 4K HDMI Switch is powered on for the first time, it senses input ports automatically and switches to the input port source automatically in the sequence 1 -> 2 -> 3 -> 4-> 5. It bypasses input ports without signal.
  • Page 14: How To Enable Or Disable Auto Switching

    When enabling the auto switch function, press and hold the “switch” button on the front panel of the 550BN for approximately 8 seconds. The output light will flash 4 times and turn blue. Output LED will stay blue when Auto switching is enabled (default).
  • Page 15: Warranty

    In the unlikely event that the product proves to be defective, Kinivo will repair or replace the product free of charge. If replacement is required and if Kinivo then no longer carries the same product, then Kinivo reserves the right to substitute the product with a replacement product of like quality and size, suitable for the intended use.
  • Page 16: Online Support / Contact Us

    If your product is not functioning or you have any concerns please contact Kinivo Support before returning the product.
  • Page 17 This page intentionally left blank...
  • Page 18 Made in china hardware warranty www.kinivo.com Technical Support (Email) : support@kinivo.com...
