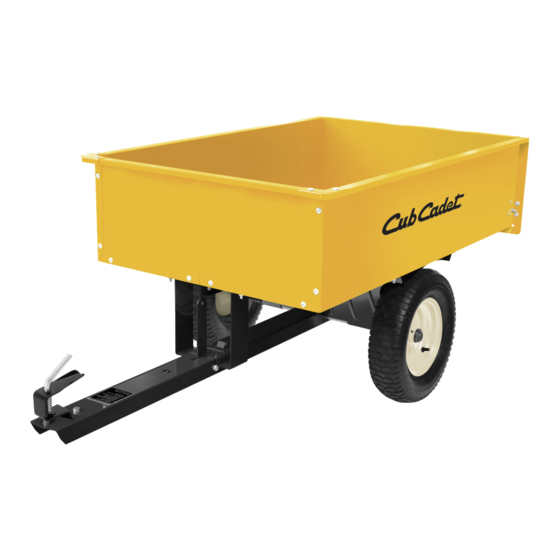

- Page 1 CC-3048HKD 12 cu ft STEEL DUMP CART READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT 6004384 - REV B 10/19...
-
Page 2: Safety Rules
Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Read and understand all safety rules and operating instructions before using this tractor attachment. -
Page 3: Warranty
Paint that is worn or faded due to normal use or exposure. To arrange for product repair visit ohiosteel.com/customer-support and fill out the warranty repair form. You can also call 1-800-652-2321, ext. 212 to speak to our Customer Service Team This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. -
Page 4: Carton Contents
Carton Contents 3 (x1) 1 (x1) 4 (x1) 5 (x2) 6 (x1) 2 (x1) 10 (x1) 9 (x1) 7 (x1) 8 (x1) 19 (x1) 21 (x2) 20 (x4) 18 (x2) 22 (x1) (x1) 24 (x46) 25 (x46) 23 (x2) TOOLS REQUIRED FOR ASSEMBLY: •... - Page 5 Assembly Instructions Place body halves (1&2) on a smooth, flat surface so they are square, and fasten together with hardware (24&25) as shown. Attach Front Support (9) to body and tighten with hardware (24 & 25) as shown. Attach Undercarriage (6) to body and tighten with hardware (24 &...
- Page 6 Assembly Instructions Attach Front Gate (3) to inside of body with supplied hardware (24 & 25) as shown. Attach Corners (5) to body of cart and tighten with hardware (24 & 25) as shown. Insert Axle (19) into Undercarriage (6) halfway as shown.
- Page 7 Assembly Instructions Slide Axle (19) completely through Undercarriage (6); be sure to catch the Drawbar (11) and Spacer (22) when sliding the Axle. Align Drawbar (11) with the Front Support (9) and press down to latch. Slide Washers (20), Spacers (21), and Wheels (18) onto Axle (19) and secure with Hairpins (23) as shown.
- Page 8 Assembly Instructions Attach gate retainers (7 & 8) to rear and sides of body (1 & 2) and tighten with hardware (24 & 25) as shown. Attach Tailgate (4) to body as shown. No hardware is required, tailgate should move freely up or down.
- Page 9 Operating Instructions Before Using Dump Cart: Apply grease to wheels using grease gun until grease can be seen squeezing out from both sides of the wheel. Check tire pressure and inflate to 30 psi if needed. Read all Safety Rules found on page 1. How to Use Dump Cart: Attach Dump Cart to your tractor using the supplied hitch pin.
-
Page 10: Repair Parts
Repair Parts ITEM PART NO DESCRIPTION QTY ITEM PART NO DESCRIPTION 401011-Y1 BODY HALF, RIGHT SPRING, LATCH 401021-Y1 BODY HALF, LEFT HEX BOLT, 3/8-16 X 3/4" 6004319-B2 401031-Y1 GATE, FRONT HEX BOLT, 3/8-16 X 4" 401041-Y1 TAILGATE LOCKNUT, 3/8-16" 401051-Y1 CORNER 6002415-C WHEEL (BUSHINGS INCL) 401061-B2 UNDERCARRIAGE 300001... - Page 11 Designed And Tested In Columbus, Ohio Manufactured In The U.S.A. From Domestic And Imported Components MODEL # CC-3048HKD (800) 652-2321 (800) 652-2321...
