Summary of Contents for ANTAIRA ARS-7235-5E-AC Series

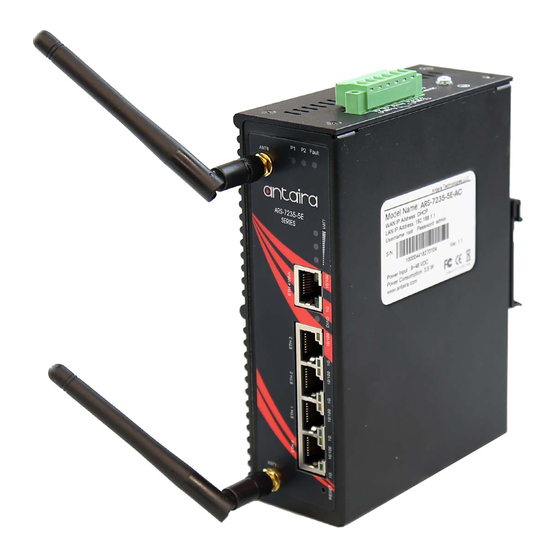

- Page 1 ARS-7235-5E-AC Series Industrial 5-Port Gigabit Ethernet with Dual Radio IEEE 802.11a/b/g/n/ac Wireless Access Point/Client/Bridge/Repeater/Router Hardware Manual Version 1.0 (December 2021)
- Page 2 Antaira Technologies, LLC may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is ●...
- Page 4 Hardware Manual Version 1.0 (December 2021) The manual supports the following models: ARS-7235-5E-AC ● ARS-7235-5E-AC-T ● This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Top View Panel 2.4 LED Indicators... -
Page 6: Overview
9V. Based on IEEE 802.11 a/b/g/n/ac, the access point supports high-speed data transmission of up to 867Mbps. The ARS-7235-5E-AC series is capable of operating in different modes, which makes it suitable for a wide variety of wireless applications including long-distance deployments. The unit also allows the user to position the wireless antennas in a better signal-broadcasting location for improved wireless coverage and signal strength or simply in a more convenient location. -
Page 7: Safety Precaution
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 Wall mounting bracket set with screws Set of antennas 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 8: Hardware Description
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 54mm x 99mm x 142mm... -
Page 9: Front View Panel
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel... -
Page 10: Top View Panel
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 2.3 Top View Panel Figure 2.3, below, shows the top panel of the product series: Figure 2.3 - Top View Panel 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial wireless access point that display the power status and network status. -
Page 11: Reset Button
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 Green LED 3 less than 75% signal strength Green LED 4 less than 100% signal strength Flashing Unit not ready / Boot sequence Diagnostics Unit ready... -
Page 12: Cabling
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 without changing the straight-through or crossover cabling. See the figures below for straight-through and crossover cabling schematics. RJ45 Pin Assignments ● Crossover Cable Straight Through Cable... -
Page 13: Wireless Antenna
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 2.8 Wireless Antenna The 2.4GHz/5GHz antennas are connected with SMA connectors. Other external antennas can be used. 2.9 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. -
Page 14: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 2.10 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only), and form a normal open circuit. -
Page 15: Grounding Note
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 2.11 Grounding Note Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown below in Figure 2.9. -
Page 16: Mounting Installation
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial wireless access point from the factory. If the DIN-Rail is not on the industrial wireless access point, please see Figure 3.1 to learn how to install the DIN-Rail on the wireless access point. -
Page 17: Wall Mounting
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 Figure 3.1 - Rear View of the Switch and DIN-Rail Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting... - Page 18 Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 5. To remove the wall mount bracket, do the opposite from the steps above. Figure 3.4 - Remove DIN-Rail bracket from the Switch...
-
Page 19: Hardware Installation
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial wireless access point: Caution: This device is intended for indoor use. -
Page 20: Maintenance And Service
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 ● The Ethernet port’s (RJ45) LED on the industrial wireless access point will turn on when the cable is connected to the networking device. Please refer to the LED Indicators section for LED light indication. - Page 21 Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the...
-
Page 22: Technical Specifications
Antaira Technologies - Industrial Wireless Access Points ARS-7235-5E-AC Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.11a/b/g/n/ac Wireless LAN IEEE 802.3 10Base-T Ethernet Standards IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet... - Page 23 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
