Summary of Contents for ANTAIRA ARX-7235-AC-PD-T

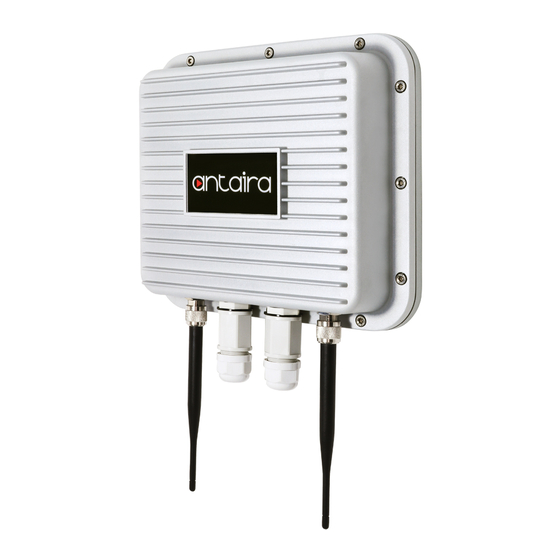

- Page 1 ARX-7235-AC-PD-T Industrial Outdoor IP67 Metal Housing IEEE 802.11a/b/g/n/ac Wireless Access Point/Client/Bridge/Repeater/Router with PoE PD; EOT: -40°C to 70°C Hardware Manual Version 1.0 (November 2020) ...
- Page 2 Antaira Technologies, LLC may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made ...
- Page 3 Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 Reorient or relocate the receiving antenna. ● ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is ...
- Page 4 Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 Industrial Wireless Access Points Industrial Grade Wireless Access Points Hardware Manual Version 1.0 (November 2020) The manual supports the following model: ● ARX-7235-AC-PD-T This document is the current official release hardware manual. Please check our website ...
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 Table of Contents 1 Overview 1 1.1 Product Hardware Features 1 1.2 Product Software Features 1 1.3 Package Contents 2 1.4 Safety Precaution 2 2 Hardware Description 4 ... -
Page 6: Overview
867Mbps. The ARX-7235-AC-PD-T is capable of operating in different modes, which makes it suitable for a wide variety of wireless applications including long-distance deployments. With the extended operating temperature range of -40°C to 70°C and the metal housing IP67 rated, this wireless access point is built ... -
Page 7: Safety Precaution
Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial wireless access point’s hardware specs, ports, cabling information, and wiring ... -
Page 8: Hardware Description
Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1 , below, shows the physical dimensions of this product: (W x D x H) is 269mm x 239mm x 81mm ... -
Page 9: Front View Panel
Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2 , below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 Ethernet Ports ● RJ45 Ports ... -
Page 10: Cabling
Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 RJ45 Pin Assignments ● Crossover Cable Straight Through Cable Pin Number / Signal Pin Number / Signal Pin Number / Signal Pin Number / Signal 1 / RX+ ... - Page 11 Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 2.5 Wireless Antenna The 2.4GHz/5GHz antennas are connected with N-Type connectors. Other external antennas can be used. 6 ...
-
Page 12: Mounting Installation
Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 3 Mounting Installation 3.1 Pole Mounting This unit has a pole mounting kit on the rear panel. Please see F igure 3.1 for diagram on how to pole ... -
Page 13: Wall Mounting
Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 3.2 Wall Mounting Follow the steps below to mount the industrial wireless AP using the wall mounting bracket as shown below in F igure 3.2 . ... -
Page 14: Hardware Installation
Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial wireless access point: Installation Steps 1. Unpack the industrial wireless access point from the original packing box. ... -
Page 15: Troubleshooting
Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 4.3 Troubleshooting Select the proper UTP or STP cable in order to construct the network. Use an unshielded ● twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ45 connections: 100Ω Category 5e for ... -
Page 16: Technical Specifications
Antaira Technologies - Industrial Wireless Access Points ARX-7235-AC-PD-T - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.11a/b/g/n/ac Wireless LAN IEEE 802.3 10Base-T Ethernet Standards IEEE 802.3u 100Base-TX Fast Ethernet ... - Page 17 (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com / upport@antaira.com www.antaira.eu / nfo@antaira.eu www.antaira.com.tw / nfo@antaira.com.tw Any changes to this material will be announced on the Antaira website. 12 ...
