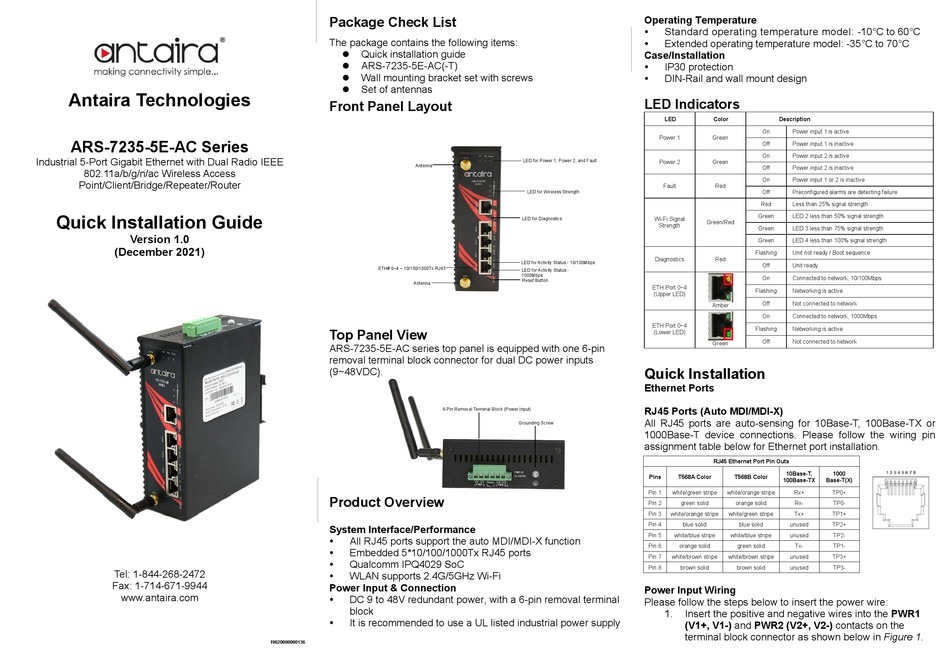

ANTAIRA ARS-7235-5E-AC Series Quick Installation Manual

Antaira Technologies
ARS-7235-5E-AC Series
Industrial 5-Port Gigabit Ethernet with Dual Radio IEEE
802.11a/b/g/n/ac Wireless Access
Point/Client/Bridge/Repeater/Router
Quick Installation Guide
Version 1.0
(December 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
Quick installation guide

ARS-7235-5E-AC(-T)

Wall mounting bracket set with screws

Set of antennas


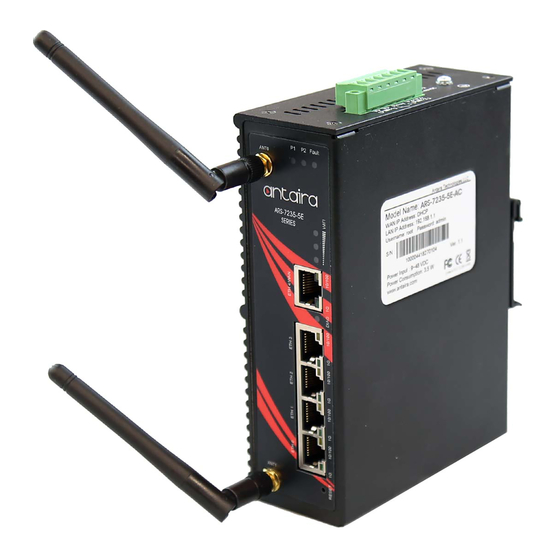

Front Panel Layout
Antenna
ETH# 0~4 – 10/100/1000Tx RJ45
Antenna
Top Panel View
ARS-7235-5E-AC series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(9~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance
All RJ45 ports support the auto MDI/MDI-X function

Embedded 5*10/100/1000Tx RJ45 ports

Qualcomm IPQ4029 SoC

WLAN supports 2.4G/5GHz Wi-Fi

Power Input & Connection
DC 9 to 48V redundant power, with a 6-pin removal terminal

block
It is recommended to use a UL listed industrial power supply

19020000000136
Operating Temperature
Standard operating temperature model: -10°C to 60°C

Extended operating temperature model: -35°C to 70°C

Case/Installation
IP30 protection

DIN-Rail and wall mount design

LED Indicators
LED
Power 1
LED for Power 1, Power 2, and Fault
Power 2
Fault
LED for Wireless Strength
LED for Diagnostics Wi-Fi Signal
Strength
Diagnostics
LED for Activity Status - 10/100Mbps
LED for Activity Status -
1000Mbps
Reset Button
ETH Port 0~4
(Upper LED)
ETH Port 0~4
(Lower LED)
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI/MDI-X)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX or
Grounding Screw
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
Pins T568A Color
Pin 1 white/green stripe
Pin 2 green solid
Pin 3 white/orange stripe
Pin 4 blue solid
Pin 5 white/blue stripe
Pin 6 orange solid
Pin 7 white/brown stripe
Pin 8 brown solid
Power Input Wiring
Please follow the steps below to insert the power wire:
1. Insert the positive and negative wires into the PWR1
(V1+, V1-) and PWR2 (V2+, V2-) contacts on the
terminal block connector as shown below in Figure 1.
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
On Power input 1 or 2 is inactive
Red
Off Preconfigured alarms are detecting failure
Red Less than 25% signal strength
Green LED 2 less than 50% signal strength
Green/Red
Green LED 3 less than 75% signal strength
Green LED 4 less than 100% signal strength
Flashing Unit not ready / Boot sequence
Red
Off Unit ready
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
Amber
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
Green
RJ45 Ethernet Port Pin Outs
10Base-T, 1000
T568B Color
100Base-TX Base-T(X)
white/orange stripe Rx+ TP0+
orange solid Rx- TP0-
white/green stripe Tx+ TP1+
blue solid unused TP2+
white/blue stripe unused TP2-
green solid Tx- TP1-
white/brown stripe unused TP3+
brown solid unused TP3-
