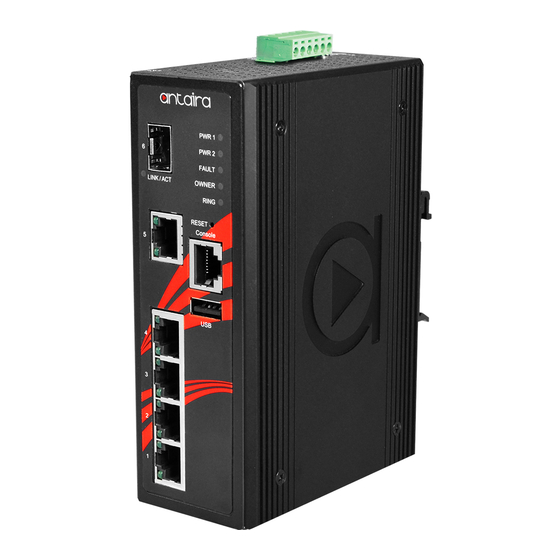

ANTAIRA LMX-0601G-SFP Series User Manual

6-port industrial gigabit managed ethernet switches 5*10/100/1000tx and 1*100/1000 sfp slot, 12~48vdc power input
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

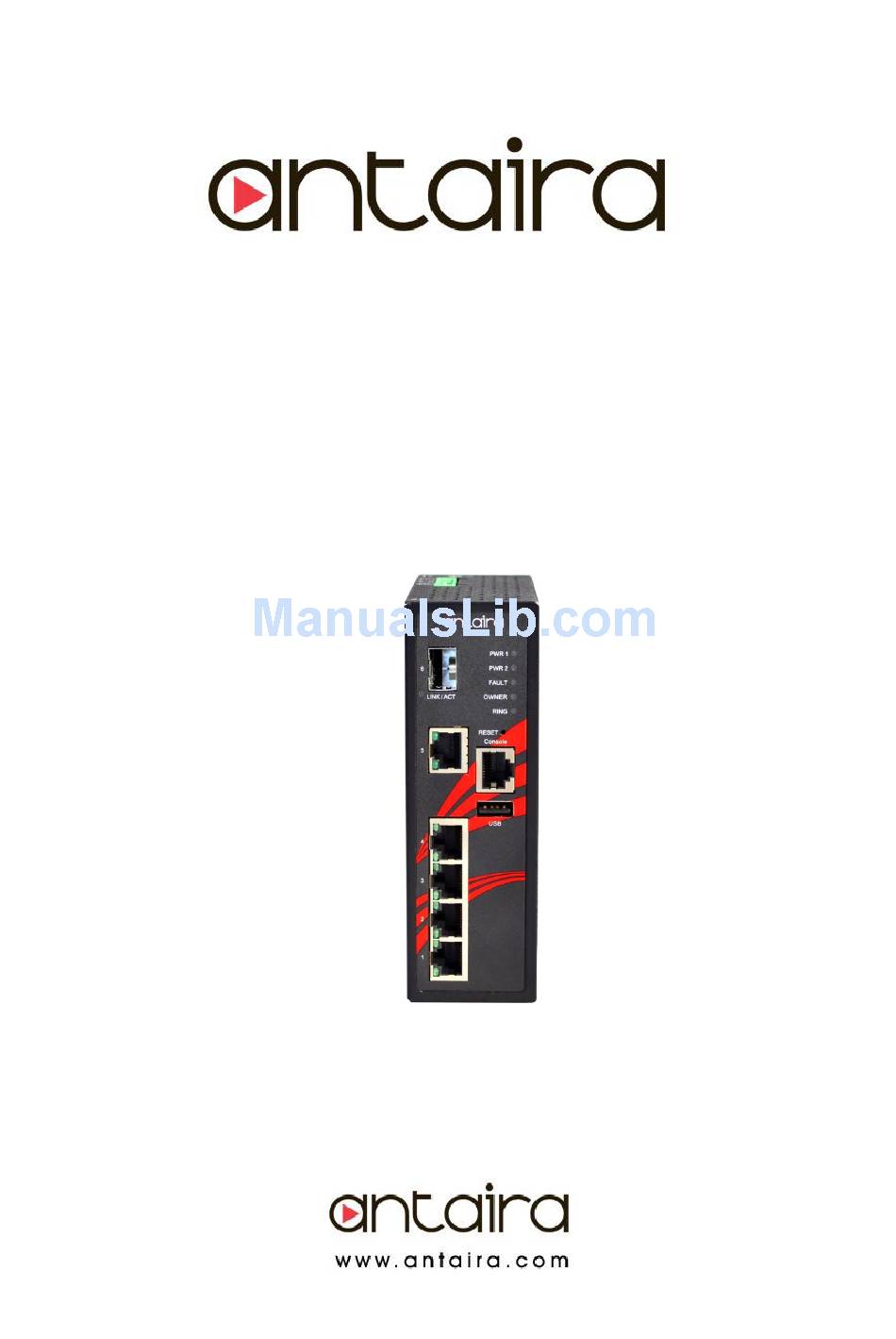

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.0
LMX-0601G-SFP Series
6-Port Industrial Gigabit Managed Ethernet Switches
5*10/100/1000Tx and 1*100/1000 SFP Slot,
12~48VDC Power Input

User Manual

Version 1.0
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMX-0601G-SFP Series and is the answer not in the manual?

Questions and answers

Related Manuals for ANTAIRA LMX-0601G-SFP Series

Summary of Contents for ANTAIRA LMX-0601G-SFP Series

  • Page 1: User Manual

    Antaira Industrial Ethernet Switches LMP-0601G-SFP Series User Manual V1.0 LMX-0601G-SFP Series 6-Port Industrial Gigabit Managed Ethernet Switches 5*10/100/1000Tx and 1*100/1000 SFP Slot, 12~48VDC Power Input User Manual Version 1.0...
  • Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.

  • Page 3: Fcc Warning

    Industrial Grade Gigabit Managed Ethernet Switches User Manual Version 1.0 (November 2014) This manual supports the following models:  LMX-0601G-SFP  LMX-0601G-SFP-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).

  • Page 4: Table Of Contents

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Table of Contents 1. Introduction ..............1 1.1 Product Overview ..........1 1.2 Product Software Features ........ 1 1.3 Product Hardware Features ....... 2 1.4 Package Contents ..........2 1.5 Safety Precaution ..........2 2.
  • Page 5 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.2 Basic Setting ............ 16 5.2.1 System Information ........16 5.2.2 Admin &Password ........17 5.2.3 IP Setting............. 18 5.2.4 System Time ..........19 5.3Port Management ..........20 5.3.1 Port Status ..........20 5.3.2 Port Configuration ........
  • Page 6 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.7.2 802.1Q VLAN Settings ........ 39 5.8. IGMP Snooping ..........39 5.8.1 IGMP Settings ..........40 5.8.2 IGMP Snooping Status Table ...... 41 5.9 QoS (Traffic Prioritization) ........ 41 5.9.1 QoS Classification ........42 5.9.2 CoS Mapping ..........
  • Page 7 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.13.1 MAC Address Table ........52 5.13.2 MAC Table Configuration ......52 5.14 Maintenance ..........53 5.14.1 Upgrade ............ 53 5.14.2 Reboot ............54 5.14.3 Default ............54 5.15 Configuration ..........54 5.15.1...

  • Page 8: Introduction

    (SNMP). 1.1 Product Overview Antaira’s LMX-0601G-SFP series is a 5-port industrial Gigabit managed Ethernet switch that is embedded with 5*10/100/1000Tx Ethernet ports and 1*100/1000 dual rate SFP slot for fiber connection. This series is a fully manageable industrial Ethernet switch with a pre-loaded Layer 2 network management web console that supports a low voltage redundant power input range from 12~48VDC with a voltage booster.

  • Page 9: Product Hardware Features

     Installation in pollution degree to environment  DIN-Rail and wall mount design 1.4 Package Contents  1– LMX-0601G-SFP series: 5-Port industrial managed Ethernet switch, with 5*10/100/1000Tx, and 1*100/1000 SFP Slot  1-Product CD  2-Wall mounting brackets and screws ...

  • Page 10: Hardware Description

    LMX-0601G-SFP Series User Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-0601G-SFP series: 6-port industrial managed Ethernet switch with 5*10/100/1000Tx, and 1*100/1000 SFP slot; 12~48VDC power input. (W x D x H) is 46mm x 99mm x 142mm Figure2.1...

  • Page 11: Front Panel

    Figure 2.2 - The Front Panel of LMX-0601G-SFP Series 2.3 Top View Figure 2.3, below, shows the top panel of the LMX-0601G-SFP series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC).

  • Page 12: Led Indicators

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.

  • Page 13: Ethernet Ports

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 2.5 Ethernet Ports  RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX, and 1000Base-T connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling.
  • Page 14 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 The following figures show the cabling schematics for straight-through and crossover. Figure 2.4 Straight-through Cable Schematic Figure 2.5 Crossover Cable Schematic The following figures show the 10/100/1000 Ethernet RJ-45 pin outs.

  • Page 15: Cabling

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 2.6 Cabling  Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded twisted pair (STP) cable. The cable must comply with the IEEE 802.3u 100Base TX standard (e.g. Category 5, 5e, or 6). The cable between the equipment and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
  • Page 16 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0  Second, insert the fiber cable of the LC connector into the transceiver as shown below in Figure2.11. Figure 2.11 - LC Connector to the Transceiver  To remove the LC connector from the transceiver, please follow the steps shown below: ...

  • Page 17: Wiring The Power Inputs

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 2.7 Wiring the Power Inputs Please follow the steps below to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.6.

  • Page 18: Wiring The Fault Alarm Contact

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 2.8 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and forma normally open circuit.

  • Page 19: Mounting Installation

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN- Rail on the switch.

  • Page 20: Wall Mounting

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.

  • Page 21: Hardware Installation

    LMX-0601G-SFP Series User Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMX-0601G-SFP0 series: 6-port industrial gigabit managed Ethernet switch with 5*10/100/1000Tx RJ45 ports, and 1*100/1000 SFP Slot; 12~48VDC power input. Installation Steps 1.

  • Page 22: Web Management

    This section introduces the configuration by web browser. 5.1.1 About Web-Based Management All of Antaira’s industrial managed switches are embedded with HTML web console interfaces that have a flash memory on the CPU board. It is a “user friendly” design with advanced management features that allow users to manage the switch from anywhere on the network through any Internet browser, such as Internet Explorer (version 9.0 or above is recommended),...

  • Page 23: Basic Setting

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 3. The login screen appears. 4. Key in the default username: admin and password admin. 5. Click the “Login” button, then the main (status) page of the web console will appear (Figure 5.2).

  • Page 24: Admin &Password

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Terms Value Description Factory Default: Switch *Users can assign any name label to identify this managed node. By convention, a domain name is a text string drawn from System Name the alphabet (A-Z, a-z), digits (0-9), minus sign (-). No space characters are permitted as part of a name.

  • Page 25: Ip Setting

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Terms Value Description New Password Users can assign a new password, and the maximum string length allowed is 0 to 31 characters. Confirmation Re-type the new password. Click “Apply” to save changes.

  • Page 26: System Time

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Subnet Mask Assign the subnet mask of the IP address. If the DHCP client function is enabled, the user is not required to assign the subnet mask. Gateway Assign the network gateway for the switch. If the DHCP client function is enabled, the user is not required to assign the Gateway.

  • Page 27: Port Management

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.3Port Management 5.3.1 Port Status The following information provides the current port status. Figure 5.11 – Port Status Interface 5.3.2 Port Configuration Users can assign or insert a “value/label” for each port under each “Port Name” box; enable or disable each port function;...
  • Page 28 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Terms Value Description Port No. It shows each port status: Up for link active, and Down for link inactive. Users can create or insert a value or label for each port’s identification.

  • Page 29: Erps

    Antaira is proud to introduce and implement Ethernet Ring Protection Switching (ERPS) protocol as a standard ring solution for network redundancy with all new industrial managed Ethernet switches.

  • Page 30: Erps Status

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.5.1 ERPS Status Below, Figure 5.18, shows the network redundancy ring status with the Ethernet Ring Protection Switch (ERPS) protocol. Figure 5.14 – Redundant Ring Network – ERPS Status 5.5.2 ERPS Configuration Below, Figure 5.19, shows the ERPS configuration interface.
  • Page 31 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Terms Value Description “Enable” or “Disable” ERPS protocol Protocol ERPS ring port 0, can be mapped to port 1 – port 6. Ring Port 0 Do not set the same as Ring port 1.

  • Page 32: Before Configuring Erps

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.5.3 Before Configuring ERPS Before configuring ERPS, the rapid spanning tree protocol (RSTP), or multiple spanning tree protocol is required to disabled, because only one protocol can be exclusively running within a switch.
  • Page 33 ITU-T G.8032 defines three roles in ERPS, which are “RPL Owner Node”, “RPL Neighbor Node”, and “Normal Node”. Below are two scenarios describing how to configure the ERPS in Antaira’s industrial managed Ethernet switches. Users can reference it to configure the managed switch as RPL-...
  • Page 34 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.5.3.1 Scenario A – RPL Configured Architecture Under scenario A, there are three major roles that are required to be configured within the ERPS configuration. Figure 5.20 – RPL-Configured Architecture Caution: Before enabling any ERPS protocols on any of the Ring Nodes, please DO NOT connect all switches to form a loop (ring) network just yet.
  • Page 35 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 [RPL Owner Node] There is only one RPL Owner Node that can be set in a ring network. In order to set up the RPL Owner Node, choose a switch and enable the “Protocol” under the ERPS Configuration interface, and follow the steps below (Figure 5.25).
  • Page 36 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 [RPL Neighbor Node] Users should choose a second managed switch that is adjacent to the first managed switch and set it up as the RPL neighbor node. For configuration, users should login to the second managed switch’s ERPS configuration interface and choose a specific port number under...
  • Page 37 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 [Normal Node] Then user should setup the rest of the managed switches’ “Role” of both “Ring Port 0 and 1” as “Normal Node” as shown above in Figure 5.23. Please be sure no duplicate port number has been chosen within a managed switch’s ERPS ring setting, the incorrect configurations...
  • Page 38 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.5.3.2 Scenario B – Non-Configured Architecture In some situations, users can choose not to configure the RPL owner and neighbor node; the ERPS could still work well under the mechanism by blocking one of the ring ports in the ERPS ring topology.

  • Page 39: Spanning Tree

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Figure 5.25 – Non-Configured Architecture Setup Example 5.6 Spanning Tree The Spanning Tree Protocol (STP), defined in the IEEE Standard 802.1d, can be created within a mesh network of connected layer-2 switches.

  • Page 40: Rstp Status

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.6.1 RSTP Status Figure 5.26 shows the RSTP algorithm results. Figure 5.26 – RSTP Information Interface 5.6.2 RSTP Configuration Users can enable/disable the RSTP function, and set the parameters for each port.
  • Page 41 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Terms Value Description Users can select the RSTP or MSTP function to be Mode enabled or disabled before configuring the related parameters. A value used to identify the root bridge. The bridge with...

  • Page 42: Msti Status

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 the port as an edge port, set the port to “True”. The port includes the STP mathematic calculation. Admin Non STP True is not including STP mathematic calculation. False is including the STP mathematic calculation.

  • Page 43: Msti Configuration

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.6.4 MSTI Configuration Users can display the MSTI root status and port status by selecting the “Instance ID” number from 1 to 15 by clicking on the dropdown box from the “MSTI Status” interface.
  • Page 44 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Click the “Apply” button to save changes. Figure 5.31 – MSTI Configuration –Terms & Value Description Figure 5.32 – MSTI Port Configuration Interface Terms Value Description Users can select Instance Tab #1~#15 to configure each Instance Tabs MSTI port “Cost”...

  • Page 45: 802.1Q Vlan

    PVID. All of Antaira’s industrial managed switches’ have a default VLAN setting set to “none” for each port, so the users can login to the VLAN setting interface to create a VLAN Group name and choose “Tag”...

  • Page 46: 802.1Q Vlan Settings

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.7.2 802.1Q VLAN Settings Figure 5.35 – 802.1Q VLAN Settings Interface Terms Value Description PVID Users can assign a Port VLAN ID for each port. Users can choose any port be “Tagged” or “Untagged”.

  • Page 47: Igmp Settings

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 decreases the workload at the end hosts since their network cards (or operating system) will not receive and filter all the multicast traffic generated in the network. IGMP has 3 versions, IGMP v1, v2, and v3, and support query group up to 256 groups.

  • Page 48: Igmp Snooping Status Table

    Traffic Prioritization includes three modes: port base, 802.1p/COS, and TOS/DSCP. By traffic prioritization function, users can classify the traffic into four classes for differential network application. All of Antaira’s industrial managed switches support four priority queues.

  • Page 49: Qos Classification

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.9.1 QoS Classification Figure 5.40 – QoS Classification Interface Terms Value Description Users can set it as “Weighted” or “Strict”. Weighted Mode: An 8, 4, 2, 1 weighting is applied to each round robin priority queue.

  • Page 50: Cos Mapping

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 clicking from dropdown box; of which 0 is the Highest, and 7 is the lowest. Click the “Apply” button to save changes. Figure 5.41 – QoS Classification Terms & Value Description 5.9.2 CoS Mapping...

  • Page 51: Tos Mapping

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.9.3 ToS Mapping ToS is an acronym for Type of Service. It is implemented as the IPv4 ToS priority control. It is fully decoded to determine the priority from the 6-bit ToS field in the IP header. The most significant 6 bits of the ToS field are fully decoded into 64 possibilities, and the singular code that results is compared against the corresponding bit in the IPv4 ToS priority control bit (0~63).

  • Page 52: Port Mirroring

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.10 Port Mirroring Enable or disable the mirroring feature. When enabled, a copy of matched frames will be mirrored to the destination port specified in the port mirroring interface. Figure 5.46 – Port Mirroring Configuration Interface...

  • Page 53: Snmp

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.11 SNMP Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.

  • Page 54: Snmp Trap Setting

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.11.2 SNMP Trap Setting Figure 5.50 – SNMP Trap Setting Terms Value Description Enable SNMP Trap Enable the SNMP Trap function by checking the box. Users can insert the Server IP address as the Trap Trap Destination IP Destination IP info.

  • Page 55: System Warning

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.12 System Warning System warning function is very important for managing a switch. Users can manage the switch by “Syslog”, “System Event Log”, and “Email Server” setup for Advanced Notice in any event type, “Event Type Selection”, and “Fault Alarm”...

  • Page 56: 2System Event Log

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Click the “Apply” button to save changes. Figure 5.53 – SYSLOG Setting Terms & Value Description 5.12.2System Event Log Users can view and display the system event log by clicking the “Apply” button on the right bottom corner of the interface.

  • Page 57: Smtp Setting

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.12.3 SMTP Setting The Simple Mail Transfer Protocol (SMTP) is for e-mail transmission across the Internet. Figure 5.55 – SMTP Setting Interface Terms Value Description E-mail Alert Enable/Disable transmission system warning events by e-mail.

  • Page 58: Event Selection

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.12.4 Event Selection Users can select any event type through the “Event Selection” interface, such as “System Cold Start”, any ports’ “Link Up”, “Link Down”, “Link Up & Link Down” and send the system warning massage to either SYSLOG or SMTP, or both at the same time.

  • Page 59: Mac Table

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.13 MAC Table The MAC address table is the filtering database that supports queries by the forwarding process, as to whether a frame received by a given port with a given destination MAC address is to be forwarded through a given potential transmission port.

  • Page 60: Maintenance

    Antaira is continuously developing new functions and features for specific application requirements for the industrial managed switches. Users can download the latest firmware from Antaira’s website and store it within their local PC, server, or USB drive. Figure 5.61 – Firmware Upgrade Interface...

  • Page 61: Reboot

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.14.2 Reboot Users can click the “Apply” button under the “Reboot” interface to reboot the switch. Figure 5.63 – Switch Reboot Interface 5.14.3 Default Users can reset the switch to “Factory Default” by clicking the “Apply” button under the default interface.

  • Page 62: Save

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 5.15.1 Save Users can click the “Save” button under the “SAVE CONFIGURATION” interface, once all the settings have been configured. Figure 5.65 – Save Setting Interface 5.15.2 Backup & Store Figure 5.66 – Backup & Restore Setting Interface...

  • Page 63: Auto Load & Backup

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 then finish by clicking the “Upload” button. USB Management Fill in the folder and filename and click the “Backup” button. If the folder or filename does not exist, the Save Running Config to USB system will generate it automatically.

  • Page 64: Logout

    6. Command Line Interface Management 6.1 About CLI Management Besides WEB-based management, LMX-0601G-SFP series also supports CLI management. Users can use console or telnet to manage their switch by CLI. CLI Management Using RS-232 Serial Console (115200, 8, none, 1, none) Before configuring using an RS-232 serial console, use an RJ45 to DB9-F cable to connect the switches’...
  • Page 65 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Step 2: Input a name for the new connection. Step 3: Select a certain COM port number.
  • Page 66 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Step 4: The COM port property settings are as follows: 115200 for “Bits per second”, 8 for “Data bits”, None for Parity, 1 for “Stop bits” and none for “Flow control”.
  • Page 67 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 CLI Management by Telnet Users can use “TELNET” to configure the switches. The default value is below:  IP Address: 192.168.1.254  Subnet Mask: 255.255.255.0  Default Gateway: none  User Name: admin ...
  • Page 68 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 Commander Groups Command Mode Group hostname [Switch] configure system location [none] configure system contact [none] configure no system location configure no system contact configure show system uptime configure show system mac...
  • Page 69 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 ntp sync hour [time] configure ntp sync day [time] configure ntp sync month [time] configure ntp sync weekly [time] configure no ntp client enable Configure no ntp client timeserver configure no clock timezone...
  • Page 70 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 show administrate interface show name interface show link status interface show link state interface show link speed interface show duplex interface show link rx interface show link tx interface show link summary...
  • Page 71 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 disable g8032 rpl [port0 | port1] [owner | neighbor] g8032 aps-channel [channel ID] g8032 revertive g8032 clear g8032 port0 interface [interface name] g8032 port1 interface [interface name] g8032 g8032 g8032 ring-id [erps ring ID]...
  • Page 72 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 spanning-tree admin-edge on interface spanning-tree stp disable interface no spanning-tree enable configure no spanning-tree mode configure no spanning-tree priority configure no spanning-tree forward-time configure no spanning-tree hello-time configure no spanning-tree max-age...
  • Page 73 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 no spanning-tree mst revision configure no spanning-tree mst instance [instance_ID] vlan configure no spanning-tree mst [instance_ID] cost interface no spanning-tree mst [instance_ID] port-priority interface show spanning-tree mst name configure show spanning-tree mst revision...
  • Page 74 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 event syslog authentication-failure enable configure event syslog erps-change enable configure event syslog interface [INTERFACE_NAME] [up | down] configure no event syslog power1 configure no event syslog power2 configure no event syslog cold-start...
  • Page 75 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 smtp sender [E-MAIL_ADDR] configure smtp subject [subject_text] configure smtp server address [GMAIL_SMPT_SERVER] configure smtp server port [GMAIL_SMPT_SERVER] configure smtp authentication enable configure smtp authentication username [GMAIL_ACCOUNT] configure smtp authentication password [GMAIL_PASS]...
  • Page 76 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 show snmp server enable configure show snmp server community [ro | rw] configure show snmp server v3 level [admin| user] configure show snmp server v3 auth [admin | user] configure show snmp server v3 encryption [admin | user]...
  • Page 77 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 SNMP show snmp trap v3 engine-ID configure show snmp trap v3 auth configure show snmp trap v3 encryption configure copy running-config startup-config configure FILE copy startup-config running-config configure monitor enable configure...
  • Page 78 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 igmp snooping fast-leave enable interface no igmp snooping enable configure no igmp snooping query max-respond-time configure no igmp snooping query interval configure IGMP no igmp snooping last-member count configure no igmp snooping last-member interval...
  • Page 79 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 2. CLI : enable -> configure terminal ->copy startup-config usb (path) Fill in the folder and filename behind the “copy startup-config usb” command. Ex: file1, / folder /file2. 3. CLI :enable -> configure terminal ->copy usb startup-config (path) Fill in the folder and filename behind the “copy usb startup-config”...
  • Page 80 Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 4. CLI : enable -> configure terminal ->copy usb firmware (path) Fill in the folder and filename behind the “copy usb startup-config” command. Ex: file1, / folder /file2. CLI : enable -> configure terminal -> Syslog mode (usb or all) Select USB or ALL, it can auto save the waning file to the USB.

  • Page 81: Technical Specifications

    Antaira Industrial Ethernet Switches LMX-0601G-SFP Series User Manual V1.0 7. Technical Specifications Table 7.1 has the technical specifications for Antaira’s LMX-0601G-SFP series: 6-port industrial gigabit managed Ethernet switch with 5*10/100/1000Tx, 1*100/1000 SFP Slot; 12~48VDC power input. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u...
  • Page 82 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
