Summary of Contents for ANTAIRA ARY-7235-AC-PD

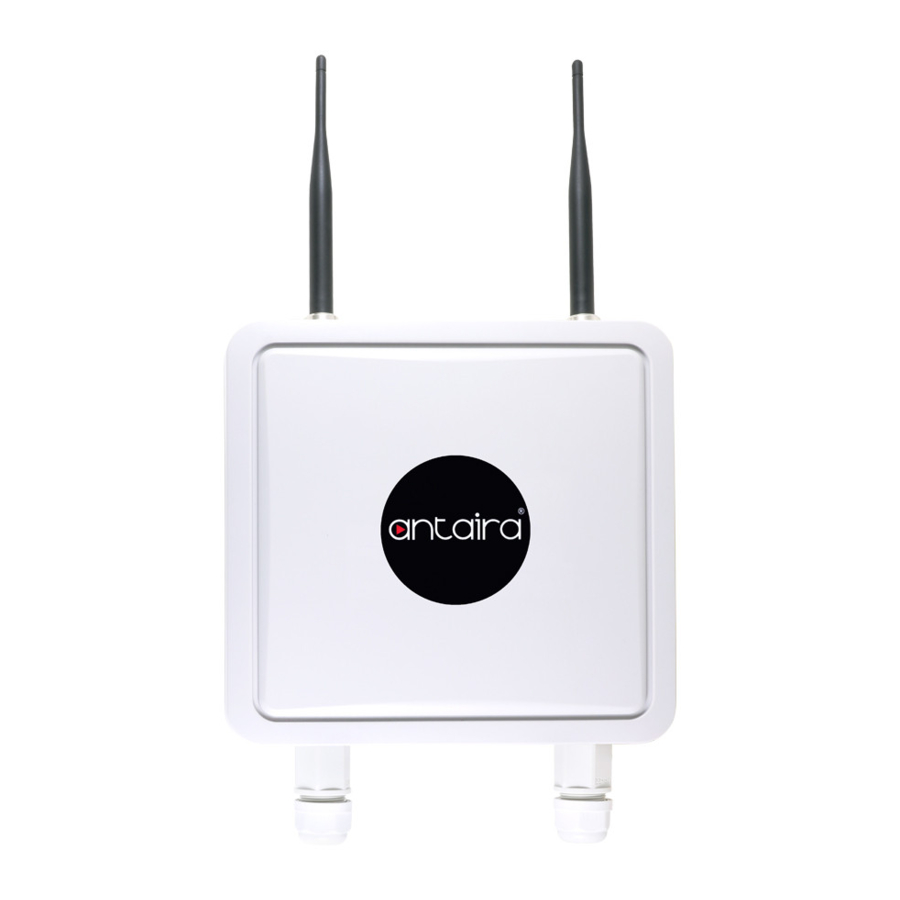

- Page 1 ARY-7235-AC-PD Industrial Outdoor IP67 Plastic Housing IEEE 802.11a/b/g/n/ac Wireless Access Point/Client/Bridge/Repeater/Router with PoE PD Hardware Manual Version 1.0 (November 2020) ...
- Page 2 Antaira Technologies, LLC may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made ...
- Page 3 Antaira Technologies - Industrial Wireless Access Points ARY-7235-AC-PD - Hardware Manual - v1.0 Reorient or relocate the receiving antenna. ● ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is ...
- Page 4 Antaira Technologies - Industrial Wireless Access Points ARY-7235-AC-PD - Hardware Manual - v1.0 Industrial Wireless Access Points Industrial Grade Wireless Access Point Hardware Manual Version 1.0 (November 2020) The manual supports the following models: ● ARY-7235-AC-PD This document is the current official release hardware manual. Please check our website ...
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Wireless Access Points ARY-7235-AC-PD - Hardware Manual - v1.0 Table of Contents 1 Overview 1 1.1 Product Hardware Features 1 1.2 Product Software Features 1 1.3 Package Contents 2 1.4 Safety Precaution 2 2 Hardware Description 4 ... -
Page 6: Overview
Based on IEEE 802.11a/b/g/n/ac, the access point supports high-speed data transmission of up to 867Mbps. The ARY-7235-AC-PD is capable of operating in different modes, which makes it suitable for a wide variety of wireless applications including long-distance deployments. With the standard operating ... -
Page 7: Safety Precaution
Antaira Technologies - Industrial Wireless Access Points ARY-7235-AC-PD - Hardware Manual - v1.0 Set of antennas 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial wireless access point’s hardware specs, ports, cabling information, and wiring ... -
Page 8: Hardware Description
Antaira Technologies - Industrial Wireless Access Points ARY-7235-AC-PD - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1 , below, shows the physical dimensions of this product: (W x D x H) is 230mm x 230mm x 58mm ... -
Page 9: Front View Panel
Antaira Technologies - Industrial Wireless Access Points ARY-7235-AC-PD - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2 , below, shows the front panel of the product: Figure 2.2 - Front View Panel 2.3 Ethernet Ports ● RJ45 Ports ... -
Page 10: Cabling
Antaira Technologies - Industrial Wireless Access Points ARY-7235-AC-PD - Hardware Manual - v1.0 RJ45 Pin Assignments ● Crossover Cable Straight-Through Cable Pin Number / Signal Pin Number / Signal Pin Number / Signal Pin Number / Signal 1 / RX+ ... - Page 11 Antaira Technologies - Industrial Wireless Access Points ARY-7235-AC-PD - Hardware Manual - v1.0 2.5 Wireless Antenna The 2.4GHz/5GHz antennas are connected with N-Type connectors. Other external antennas can be used. 6 ...
-
Page 12: Mounting Installation
Antaira Technologies - Industrial Wireless Access Points ARY-7235-AC-PD - Hardware Manual - v1.0 3 Mounting Installation 3.1 Pole Mounting The unit has a pole mounting kit on the rear panel. Please see F igure 3.1 for diagram on how to pole ... -
Page 13: Hardware Installation
Antaira Technologies - Industrial Wireless Access Points ARY-7235-AC-PD - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial wireless access point: Installation Steps 1. Unpack the industrial wireless access point from the original packing box. ... -
Page 14: Troubleshooting
Antaira Technologies - Industrial Wireless Access Points ARY-7235-AC-PD - Hardware Manual - v1.0 4.3 Troubleshooting Always verify the right power cord or adapter is being used. Never use a power supply or adapter ● with a non-compliant DC output voltage or it will burn the equipment. ... -
Page 15: Technical Specifications
Antaira Technologies - Industrial Wireless Access Points ARY-7235-AC-PD - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.11a/b/g/n/ac Wireless LAN IEEE 802.3 10Base-T Ethernet Standards IEEE 802.3u 100Base-TX Fast Ethernet ... - Page 16 (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com / upport@antaira.com www.antaira.eu / nfo@antaira.eu www.antaira.com.tw / nfo@antaira.com.tw Any changes to this material will be announced on the Antaira website. 11 ...
