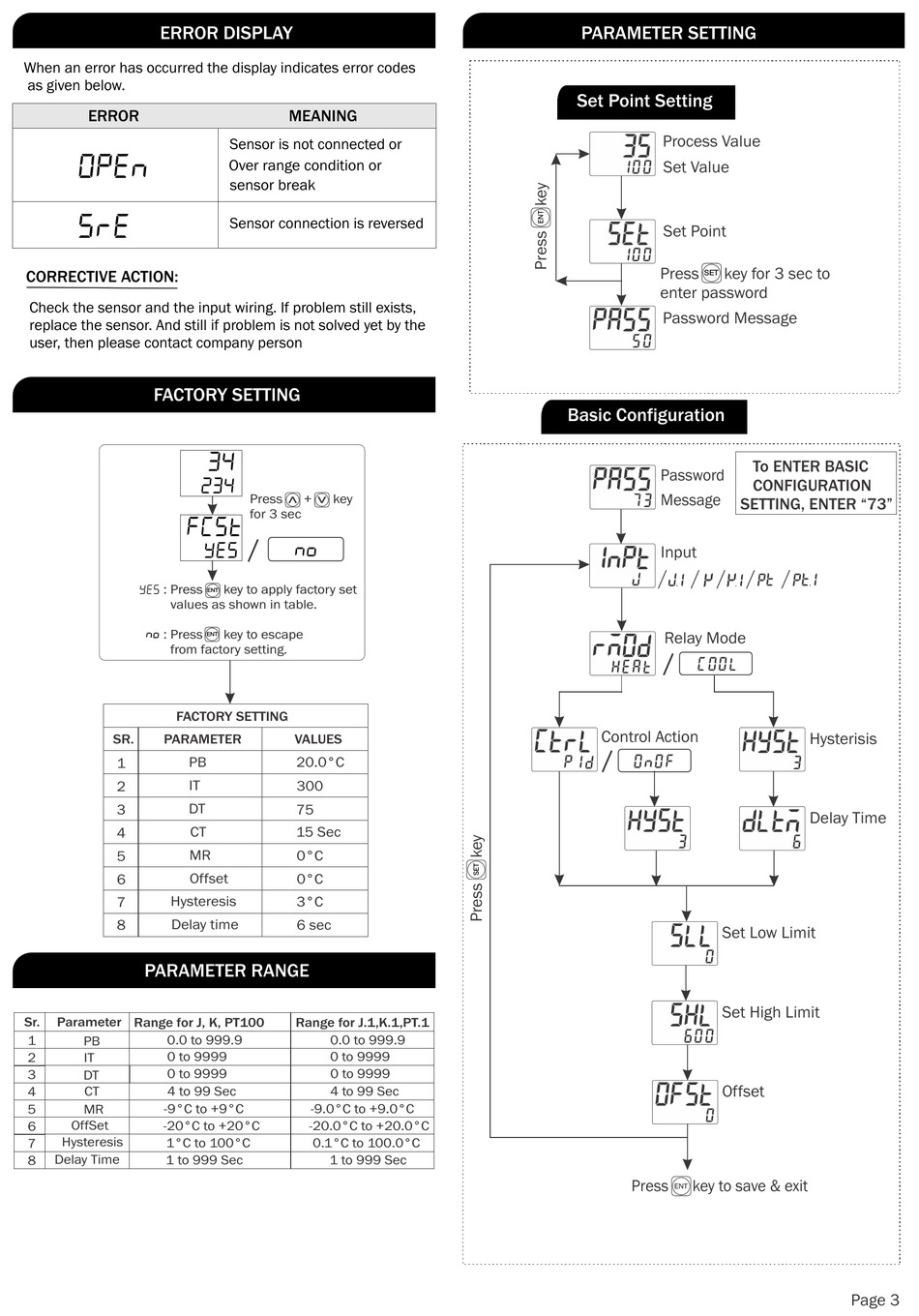

MULTISPAN UTC-121G Manual page 3

ERROR DISPLAY
When an error has occurred the display indicates error codes
as given below.
ERROR
OPEN
SRE
CORRECTIVE ACTION:
Check the sensor and the input wiring. If problem still exists,
replace the sensor. And still if problem is not solved yet by the
user, then please contact company person
FACTORY SETTING
fCst
yes : Press
values as shown in table.
no
: Press
from factory setting.
FACTORY SETTING
SR. PARAMETER
PB
1
IT
2
DT
3
CT
4
MR
5
Offset
6
Hysteresis
7
8 Delay time
PARAMETER RANGE
Sr. Parameter Range for J, K, PT100
1 0.0 to 999.9
PB
0 to 9999
2 IT
0 to 9999
3 DT
4 CT 4 to 99 Sec
5 MR -9°C to +9°C
OffSet -20°C to +20°C
6
Hysteresis
1°C to 100°C
7
Delay Time 1 to 999 Sec
8
MEANING
Sensor is not connected or
Over range condition or
sensor break
Sensor connection is reversed
34
234
Press + key
for 3 sec
no
YES
key to apply factory set
ENT
key to escape
ENT
VALUES
20.0°C
300
75
15 Sec
0°C
0°C
3°C
6 sec
Range for J.1,K.1,PT.1
0.0 to 999.9
0 to 9999
0 to 9999
4 to 99 Sec
-9.0°C to +9.0°C
-20.0°C to +20.0°C
0.1°C to 100.0°C
1 to 999 Sec
PARAMETER SETTING
Set Point Setting
Process Value
Set Value
Set Point
Press key for 3 sec to
SET
enter password
Password Message
Basic Configuration
Password
Message
SETTING, ENTER "73"
Input
Relay Mode
Control Action
Set Low Limit
Set High Limit
Offset
Press key to save & exit
ENT
To ENTER BASIC
CONFIGURATION
Hysterisis
Delay Time
Page 3
