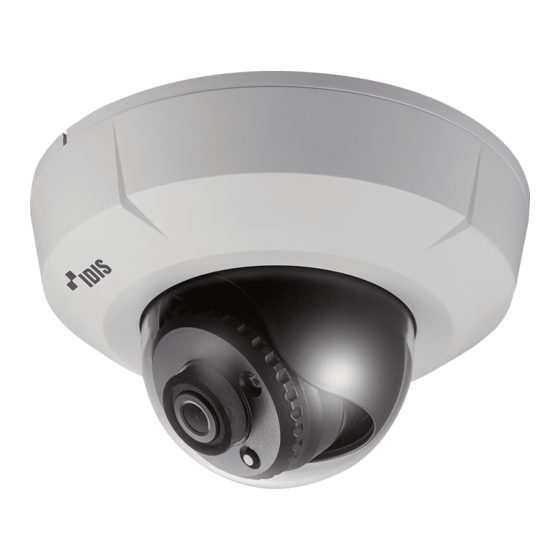

- Page 1 Network Camera Quick Guide DC-D2212R / DC-D2212WR Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading Do not overload wall outlets and extension cords as this can result All the safety and operating instructions should be read before the appliance is operated. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. - Page 4 DC-D2212WR only.) DC-D2212WR Desiccant (included with only.) Screws Insulator (included with DC-D2212R only.) Overview • Product color and design may vary depending on the model. • For more details on each part name, refer to the manual. Dome Cover Body...
-
Page 5: Camera Installation
Camera Installation DC-D2212WR Removing the Dome Cover DC-D2212R Turn the dome cover counterclockwise. Remove the dome cover. Dome Cover Screw Lens Hole IR LED Bottom Cover Wall/Ceiling Power Installation Hole Factory Reset Button Cable Access Hole SD Memory Card Slot... - Page 6 Inserting a SD Memory Card Installation Push the SD memory card until it disengages DC-D2212R from the slot, and then pull it out. Insert a SD memory card into the SD memory card slot with the ‘microSD’ printed facing upward.
- Page 7 Use the screws, anchor provided with the camera DC-D2212WR to secure the bottom cover on a wall or a ceiling. Route the network cable and wires of the power adapter through the rubber. Wires Rubber When routing the network cable, use the enclosed network connector cover.
- Page 8 Use the screws, anchor provided with the camera Closing the Dome Cover to secure the bottom cover on a wall or a ceiling. DC-D2212R Attach the enclosed desiccant in the bottom cover to prevent moisture. Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover.
- Page 9 DC-D2212WR Angle Adjustment DC-D2212R Lens Rotation Horizontal Rotation Vertical Rotation Specifications Vandal Resistance Yes ( DC-D2212WR model only) Out-door Ready DC-D2212WR IP66 ( model only) Operating Temperature -10˚C ~ 50˚C (14˚F ~ 122˚F) Boot Up Temperature 0˚C ~ 50˚C (32˚F ~ 122˚F)
- Page 10 Memo...
- Page 11 Memo...
- Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
