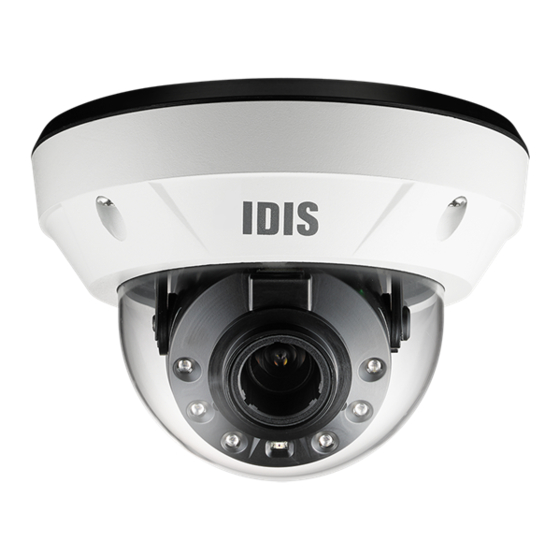

  • Page 1 Network Camera Quick Guide DC-D4831HRX DC-D4535HRX DC-D4831HRX-A DC-D4535HRX-A Powered by...
  • Page 2: Safety Precautions

    Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated.
  • Page 3: Fcc Compliance Statement

    IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements.
  • Page 4: Dome Cover

    Desiccant (3 ea.), double-sided tape (3 ea.) Allen Wrench Guide Pattern Please download software (IDIS Discovery, IDIS Center, IDIS Solution Suite Compact) and product manual from this link : -IDIS Website (www.idisglobal.com) - Search IDIS Discovery, IDIS Center, IDIS Solution Suite Compact.
  • Page 5: Camera Installation

    Camera Installation IR LED Network Port Lens Cable Rubber Removing the Dome Cover Factory Reset Button SD Memory Card Slot Wall/Ceiling Alarm I/O, Audio I/O Loosen the screws counterclockwise using the Installation Hole Allen wrench provided with the product. Power Dome Cover Assembly Part Remove the dome cover.
  • Page 6: Inserting A Sd Memory Card

    Inserting a SD Memory Card It is recommended to use lubricant to move the LAN cable smoothly. Insert a SD memory card into the SD memory card slot with the ‘micro SD’ print facing upward. Pull the cable slightly and arrange the rubber as shown below.
  • Page 7: Angle Adjustment

    Angle Adjustment Attach the enclosed desiccant in the bottom to prevent moisture. Use the screws, anchor provided with the camera Lens Rotation Horizontal Rotation to secure the install body on a wall or a ceiling. Vertical Rotation Use the provided guide pattern to check the distance between the screws.
  • Page 8: Closing The Dome Cover

    Closing the Dome Cover Attach the double-sided tape to the desiccant first, and attach it to the specified location inside the dome cover as shown below. Check the location of drain hole and wall/ceiling installation hole. Wall/ceiling installation hole Drain hole Before closing the dome cover, make sure that the gasket ring is securely fixed.
  • Page 9: Specifications

    Boot Up Temperature -20°C ~ +55°C (-4°F ~ +131°F) Operating Humidity 0% ~ 90% Power Source , PoE (IEEE 802.3af Class 3) Power DC-D4831HRX , 1.2A = 14.4W Consumption PoE (IEEE 802.3af Class 3), 12.4W DC-D4831HRX-A DC-D4535HRX , 0.99A=11.88W DC-D4535HRX-A PoE, IEEE 802.3af (Class 3), 11.3W...
  • Page 11 Сетевая камера Краткое руководство пользователя DC-D4831HRX DC-D4535HRX DC-D4831HRX-A DC-D4535HRX-A На основе технологии...
  • Page 12: Правила Техники Безопасности

    Правила техники безопасности ПРЕДУПРЕЖДЕНИЕ ОПАСНОСТЬ ПОРАЖЕНИЯ ЭЛЕКТРИЧЕСКИМ ТОКОМ НЕ ОТКРЫВАТЬ ПРЕДУПРЕЖДЕНИЕ: ДЛЯ СНИЖЕНИЯ ОПАСНОСТИ ПОРАЖЕНИЯ ЭЛЕКТРИЧЕСКИМ ТОКОМ, НЕ СНИМАЙТЕ КРЫШКУ (ИЛИ ЗАДНЮЮ ПАНЕЛЬ). ВНУТРИ НАХОДЯТСЯ ДЕТАЛИ, ТЕХНИЧЕСКОЕ ОБСЛУЖИВАНИЕ КОТОРЫХ МОГУТ ПРОИЗВОДИТЬ ТОЛЬКО КВАЛИФИЦИРОВАННЫЕ СПЕЦИАЛИСТЫ. ДЛЯ ПРОВЕДЕНИЯ ТЕХНИЧЕСКОГО ОБСЛУЖИВАНИЯ ОБРАТИТЕСЬ К КВАЛИФИЦИРОВАННОМУ СПЕЦИАЛИСТУ. Важные...
  • Page 13: Авторские Права

    IEC 60417, № 5031 Постоянный ток Авторские права © 2021 IDIS Co., Ltd. Корпорация IDIS, Ltd. сохраняет за собой все права на данный документ. Частичное или полное использование или копирование этого документа без предварительного получения согласия корпорации IDIS, Ltd. строго запрещено.
  • Page 14 Осушитель (3 шт.), двусторонний скотч (3 шт.) Торцовый ключ Шаблон для ориентира Пожалуйста, скачайте программное обеспечение (IDIS Discovery, IDIS Center, IDIS Solution Suite Compact) и руководство пользователя по следующей ссылке: - Веб-сайт IDIS (www.idisglobal.com) - Найдите IDIS Discovery, IDIS Center, IDIS Solution Suite Compact.
  • Page 15: Установка Камеры

    Установка камеры ИК-светодиод Сетевой порт Объектив Кабельная резина Съем купольной крышки Кнопка сброса до Слот карты памяти SD заводских настроек Отверстие для Тревожный вход/ Открутите винты против часовой стрелки установки на стене/ выход, аудио вход/ с помощью торцового ключа, который потолке...
  • Page 16 Установка SD-карты памяти Для упрощения протягивания сетевого кабеля рекомендуется использовать смазку. Вставьте SD-карту памяти в соответствующее гнездо, при этом надпись «micro SD» должна быть сверху. Немного потяните кабель и расположите резину, как показано ниже. Нажимайте на SD-карту памяти до тех пор, пока она...
  • Page 17 Регулирование угла Чтобы предотвратить образование влаги, прикрепите к низу корпуса осушитель. Закрепите корпус на стене или потолке Поворот Поворот по с помощью винтов и дюбелей, которые объектива горизонтали поставляются вместе с камерой. Поворот по Используйте поставляемый шаблон для вертикали ориентира, чтобы проверить расстояние между...
  • Page 18 Закрытие купольной крышки Сначала закрепите двусторонний скотч к осушителю, и затем закрепите осушитель в указанном месте купольной крышки, как показано ниже. Проверьте расположение сливного отверстия и отверстия для установки на стене/потолке. Отверстие для Wall/ceiling установки на стене/ installation потолке hole Drain hole Сливное...
  • Page 19: Технические Характеристики

    Внешние габариты (Ø x В) 155 мм x 104,4 мм (6,10 дюймов x 4,09 дюймов) Масса (основного блока) 1,02 кг (2,24 фунта) Производитель: IDIS Co., Ltd • • Адрес: Республика Корея, 8-10, Techno 3-ro, Yuseong-gu, Daejeon, 34012 Импортер: ООО «Авикс Дистрибьюторский Центр» (ООО «Авикс ДЦ») •...
