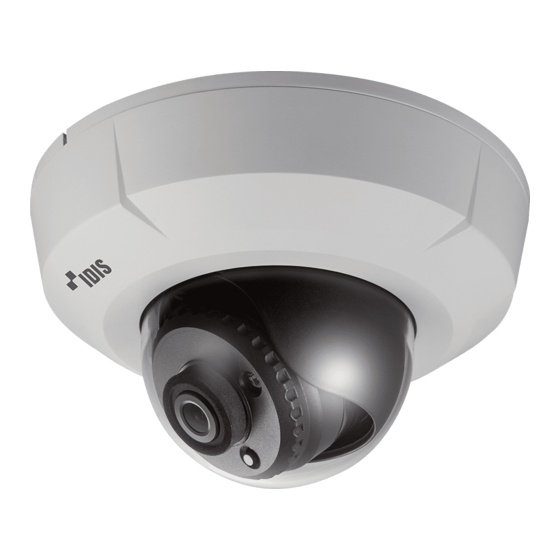

  • Page 1 Network Camera Operation Manual DC-D2212R / DC-D2212WR Powered by...
  • Page 2 Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 - Remote Setup ........7 Camera Protocol.
  • Page 6 Part 2 - IDIS Web ........

  • Page 7: Part 1 - Remote Setup

    - The DirectIP™ NVR also allows you to control all camera settings directly from the NVR, without the Launch the IDIS Discovery program and from the list, need for a computer. select a camera whose protocol you wish to change.

  • Page 8: Remote Setup

    Part 1 - Remote Setup Remote Setup Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. Click on the Setup icon. Select Remote Setup from the Setup menu to load the Remote Setup screen.

  • Page 9: Quick Setup

    There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the IDIS Discovery program. Change the camera’s system information, add users/...

  • Page 10: Date/Time

    Part 1 - Remote Setup • Setup Date/Time - Load Default Setup: Restores all settings other than Date/Time to their factory defaults. Select Include Network Setup to load default network settings as well. For more information on network setup, refer to the Network on page 12. - Import Setup: Open a setup file and apply its settings to the camera.

  • Page 11: User/Group

    Part 1 - Remote Setup User/Group • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups.

  • Page 12: Network

    Part 1 - Remote Setup Network • Type: Select the type of network you are using. If this option has been changed, Remote Setup will terminate after applying the current settings. - Manual: Select if using a static IP. You will then be able to configure the related settings manually.

  • Page 13: Fen

    Server’s help desk information will be shown in the Help Desk fields next time you enter the FEN setup The FEN Server operated by IDIS is a service to its screen. clients and may go offline without notice for server...

  • Page 14: Port/Qos

    Record, and Search ports are enabled by default and cannot be disabled. By enabling IDIS Web and RTSP ports, you will be able to use the IDIS Web program or a media player that supports RTSP (Real-Time Streaming Protocol) service to connect to the camera.

  • Page 15: Bandwidth Control

    Video > Streaming if a network Port Number/ (If Use HTTPS has been enabled, bandwidth limit has been set. enter https instead of http). Camera's IDIS Web port number and RTSP port number must be configured correctly in order to establish a connection this way.

  • Page 16: Security

    Part 1 - Remote Setup Security • SSL: Select this option to enable SSL (Secure Sockets Layer). Enabling this option applies SSL protocol protection on data transmitted out. However, programs and systems that do not support SSL will not be able to connect to the camera. If this option has been changed, Remote Setup will terminate after applying the current settings.

  • Page 17: Ieee 802.1X

    Part 1 - Remote Setup Video IEEE 802.1X Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication. Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options. • Certificates: Upload a certificate or a private key. You may be prompted to enter a password for the private key.
  • Page 18 Part 1 - Remote Setup • Mirroring: Select Horizontal Reverse or Vertical • Backlight Compensation: Enable/disable the Reverse to flip the image horizontally or vertically. Backlight Compensation feature. - OFF: Disables the BLC function. • Pivot: Enable this option and choose the direction of the pivot.
  • Page 19 Part 1 - Remote Setup White Balance Exposure Configure White Balance settings. Configure Exposure settings. • Preset: Use preconfigured white balance settings. • AE Target Gain: Specify exposure compensation’s target gain. Exposure is compensated automatically - Auto: Allow the system to adjust the white based on the specified target gain.
  • Page 20 Part 1 - Remote Setup • Anti-Flicker: If the lights in the area where the Day & Night camera is located use alternating current, specify Configure Day & Night settings. the frequency of the lights to minimize flickering. Matching the frequencies can reduce flickering. (NTSC: 60Hz, PAL: 50Hz) •...
  • Page 21 Part 1 - Remote Setup • IR Cut Filter: IR Cut Filter blocks out the infrared Miscellaneous spectrum. You can ensure clear images at all times by Configure Miscellaneous settings. blocking out the infrared spectrum in high-lighting conditions and allowing the infrared spectrum to pass through in low-lighting conditions.

  • Page 22: Streaming

    Part 1 - Remote Setup Streaming • Bitrate Control: Choose a bitrate control mode for H.264 compression. - CBR (Fixed Bitrate): Maintains the current bitrate regardless of motion change in the video. - VBR (Variable Bitrate): Bitrate varies depending on motion changes in the video. Less movement places less load on the network and takes up less storage space.

  • Page 23: Webcasting

    Part 1 - Remote Setup Select On and then specify the streaming area’s Webcasting resolution. Use the webcasting service to view live images from the camera on a web site. • HTML Code: Copy and paste the html code shown on the screen within the code of the web page you want the video to be displayed.

  • Page 24: Mat

    Part 1 - Remote Setup • Inactivity Period: Set the Inactivity Period. If motion is not detected for the duration of time specified, video is transmitted and recorded using the frame Select the MAT option to use the MAT (Motion Adaptive rate designated below until movement is detected Transmission) feature during video transmission and again.

  • Page 25: Privacy Masking

    Part 1 - Remote Setup Privacy Masking • Privacy Masking Setup: Set up privacy masks. (Up to 16) Select Privacy Masking to set up a privacy mask over a specific area. The section on which a privacy mask is applied will appear as black when monitoring video. (Select)/ (Unselect): Set or remove a privacy mask.

  • Page 26: Event Action

    Part 1 - Remote Setup Event Action Email Select Email to send out emails. Designate event detection alert actions. • SMTP Server/Port: Enter the SMTP server’s IP address (or domain name) and port number you received from the network administrator. If a DNS server has been set up during network configuration, you can enter a domain name instead of an IP address.

  • Page 27: Remote Callback

    Select FTP Upload to upload .jpg image of the event remote system. detected to an FTP server. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.
  • Page 28 Part 1 - Remote Setup - Resolution/Quality: Choose the resolution and quality of the images to upload to the FTP server. Range of resolution settings you can use here can vary depe nding on the resolution setting applied under Video > Streaming. - Base File Name: Enter a name for the files to be uploaded to the FTP server and then choose file identification options.

  • Page 29: Record

    Part 1 - Remote Setup Record Schedule Select the Schedule tab and set up a recording schedule. Select Record to record video on the SD memory card. First, make sure that an SD memory card (Class 6 or • Mode: Choose a recording mode. higher) has been properly inserted.
  • Page 30 Part 1 - Remote Setup - Preference: Designate recording stream priority. Settings Select the Settings tab and configure recording Recording using the Time-Lapse/ settings. Pre-Event and Event streams Recording designated above. Record from the remote program using the designated recording streams.

  • Page 31: Event

    • Recordings saved on the SD memory card can be searched and played back from the IDIS Solution Suite Compact program or remotely from the remote program. For more information, refer to each program's operation manual.

  • Page 32: Motion Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 33: Trip-Zone

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 34: Tampering

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 35: System Event

    Action must be configured correctly in order to send out emails and messages. • Remote Callback is not supported on IDIS Web. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 36: Part 2 - Idis Web

    – Tools → Internet Options → Advanced → Security → Use TLS 1.0 (select) • If connecting by entering an IP address and a port number, you can connect by entering just the IP address if IDIS Web connection port number has been set to 80 (443 when entering https).
  • Page 37 Run as administrator option. Otherwise, certain IDIS Web functions might not be available. • When running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown.

  • Page 38: Web Live Mode

    2013-05-29 16:25:22 2013-05-29 16:25:22 Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 39 Part 2 - IDIS Web Shows login information. Indicates the camera's number. This function is not suported. Used to adjust live video quality. This function is not supported. Event status window at the bottom of the screen displays a list of events detected at remote locales.

  • Page 40: Web Search Mode

    113.49 NC-D320-IP & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays time information of the video recording from the remote locale. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 41 Part 2 - IDIS Web Click to switch over to Web Live mode. TYPE 1 Shows login information. Indicates the camera's number. Zoom in or out on the video. Adjust image brightness. Apply image filters (Sharpen, Blur, Equalizer, Interpolation, and Revert) to the images.
  • Page 42 Part 2 - IDIS Web Right-click on the screen to display the pop-up menu. • Change Camera Title: Used to change the camera's name. Renaming the camera in Web Search mode does not affect the camera's name on the remote system. If no name is entered for the camera, the name used at the remote locale is shown on the screen.

  • Page 43: Part 3 - Appendix

    Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Event Action Email Remote Callback FTP Upload Record Event...

  • Page 44: Index

    Part 3 - Appendix Index Network Bandwidth Limit Admin/Watch/Recording/Search Ports ONVIF Protocol Bitrate Control Quality Camera Name Resolution Compression RTSP Port Date/Time SNMP DSCP FEN Name Time Sync FEN Server Frame Rate Use FEN Use HTTPS IPFiltering User/Group Use UPnP V1.2...
