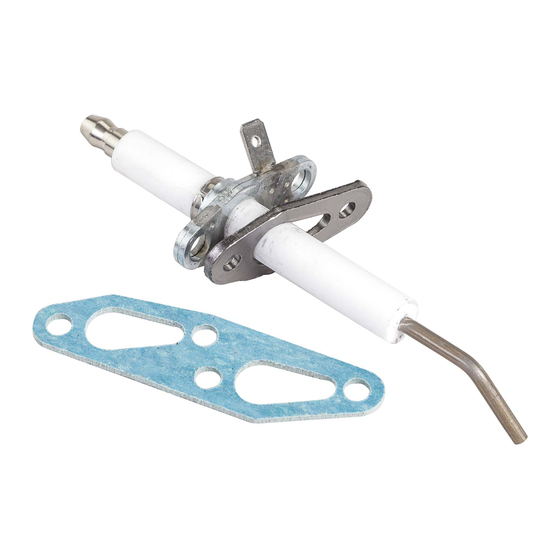

HTP Phoenix 7100P-124 Installation Start-Up Maintenance Parts

Light commercial gas fired water heaters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation
Start-Up
Maintenance
Parts
Warranty
PH76* Models
* "LP" Denotes Propane Gas
"S" Denotes Solar Model
This manual must only be used by a qualified installer / service technician. Read all instructions in this manual before installing.
Perform steps in the given order. Failure to do so could result in substantial property damage, severe personal injury, or death.
Improper installation, adjustment, alteration, service, or maintenance could void product warranty and cause property
damage, severe personal injury, or death.
California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, birth
defects, or other reproductive harm.
HTP reserves the right to make product changes or updates without notice and will not be held liable for typographical errors
in literature.
The surfaces of these products contacted by potable (consumable) water contain less than 0.25% lead by weight as required
by the Safe Drinking Water Act, Section 1417.
NOTE TO CONSUMER: PLEASE KEEP ALL INSTRUCTIONS FOR FUTURE REFERENCE.
272 Duchaine Blvd.
Light Commercial
Gas Fired Water Heaters
New Bedford, MA 02745
Phoenix
www.htproducts.com
lp-441 Rev. 002 Rel. 008 Date 8.23.18
