HTP Crossover RGH40-75F Installation Start-Up Maintenance

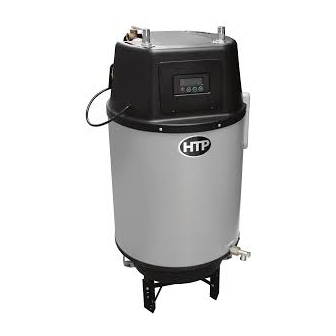

Residential hybrid floor mounted water heaters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation
Start-Up
Maintenance
Parts
Warranty
RGH20-75F / RGH20-76F / RGH20-100F
RGH40-75F / RGH40-76F / RGH40-100F
RGH-75F / RGH-76F / RGH-100F Models
This manual must only be used by a qualified installer / service technician. Read all instructions in this manual before installing.
Perform steps in the given order. Failure to do so could result in substantial property damage, severe personal injury, or death.
Improper installation, adjustment, alteration, service, or maintenance could void product warranty and cause property
damage, severe personal injury, or death.
California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, birth
defects, or other reproductive harm.
The manufacturer reserves the right to make product changes or updates without notice and will not be held liable for
typographical errors in literature.
The surfaces of these products contacted by potable (consumable) water contain less than 0.25% lead by weight as required
by the Safe Drinking Water Act, Section 1417.
NOTE TO CONSUMER: PLEASE KEEP ALL INSTRUCTIONS FOR FUTURE REFERENCE.
272 Duchaine Blvd.
Residential Hybrid Floor
Mounted Water Heaters
This Manual For Use With Water Heaters Manufactured Before September 4, 2018
New Bedford, MA 02745
Crossover
www.htproducts.com
LP-605 Rev. 000 Rel. 009 Date 8.16.18
