EMP-Centauri S16/4PCN-W3 Instruction Manual

Instruction Manual
S16/4PCN-W3
Dear Customer,
congratulations on the purchase of the EMP-Centauri product. Before its
installation and putting into operation, read carefully the entire operation manual.
Keep the purchase and rework (if any) records for future need.

1) Field of Application, Warranty

The product is designed for the distribution of satellite TV and radio signals.
EMP-Centauri΄s PROFI CLASS products are covered under 6 (six) years warranty
from the date of purchase. The warranty shall not apply to the product used for
other than the specified purpose. The user will be responsible for injury or material
damage which may arise in consequence of any product use in contradiction with
the manual.
Repairs or any interventions in the product may be performed only by EMP-
Centauri company, or other companies authorized by EMP-Centauri.

2) Technical Specifications

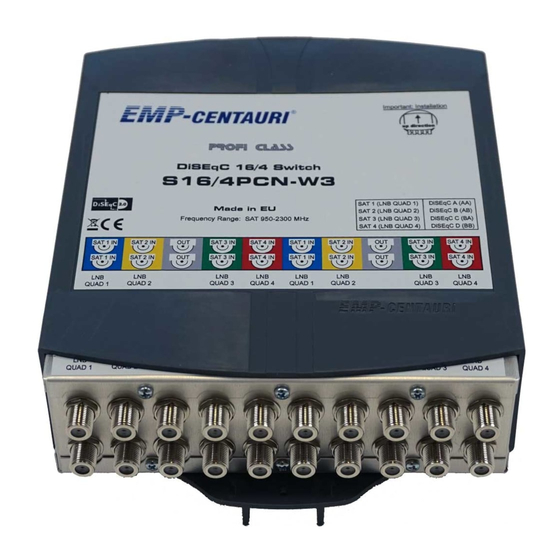

S16/4PCN-W3 is a DiSEqC-Multiswitch in the weatherproof housing for
distribution of satellite signals from 4 Quad LNBs to 4 users. It is controlled by
DiSEqC 1.0 / 2.0 commands from a receiver. The multiswitch transmits DC
voltage, 22 kHz and DiSEqC commands. The inputs are short-circuit protected.
Specifications
Inputs / Outputs
Frequency Range
Insertion Loss (avg)*
Isolation (min)
Current Consumption
LNB current (max)
Dimensions (w,d,h)
Temperature Range
*avg - average value, there is tolerance of ±3 dB in specified range
S16/4PCN-W3
16 / 4
950–2300 MHz
4 dB
25 dB
35 mA (18V) from satellite receiver
400 mA
17.2 x 20.0 x 6.9 cm
−30°C – +70°C
1 of 4
1003957-EN A
