EMP-Centauri S2/1PCNpos-W1 Instruction Manual

9 S ymbols Explanation
certificate of conformity
international standard for digital satellite equipment control,
number (1.0, 1.1, 1.2 or 2.0) determines DiSEqC version
According to EU directive, electric and electronic devices which
are identified by one of the following symbols must not be
disposed of together with municipal waste. When disposing of the
old device, use local waste collection and separation systems.

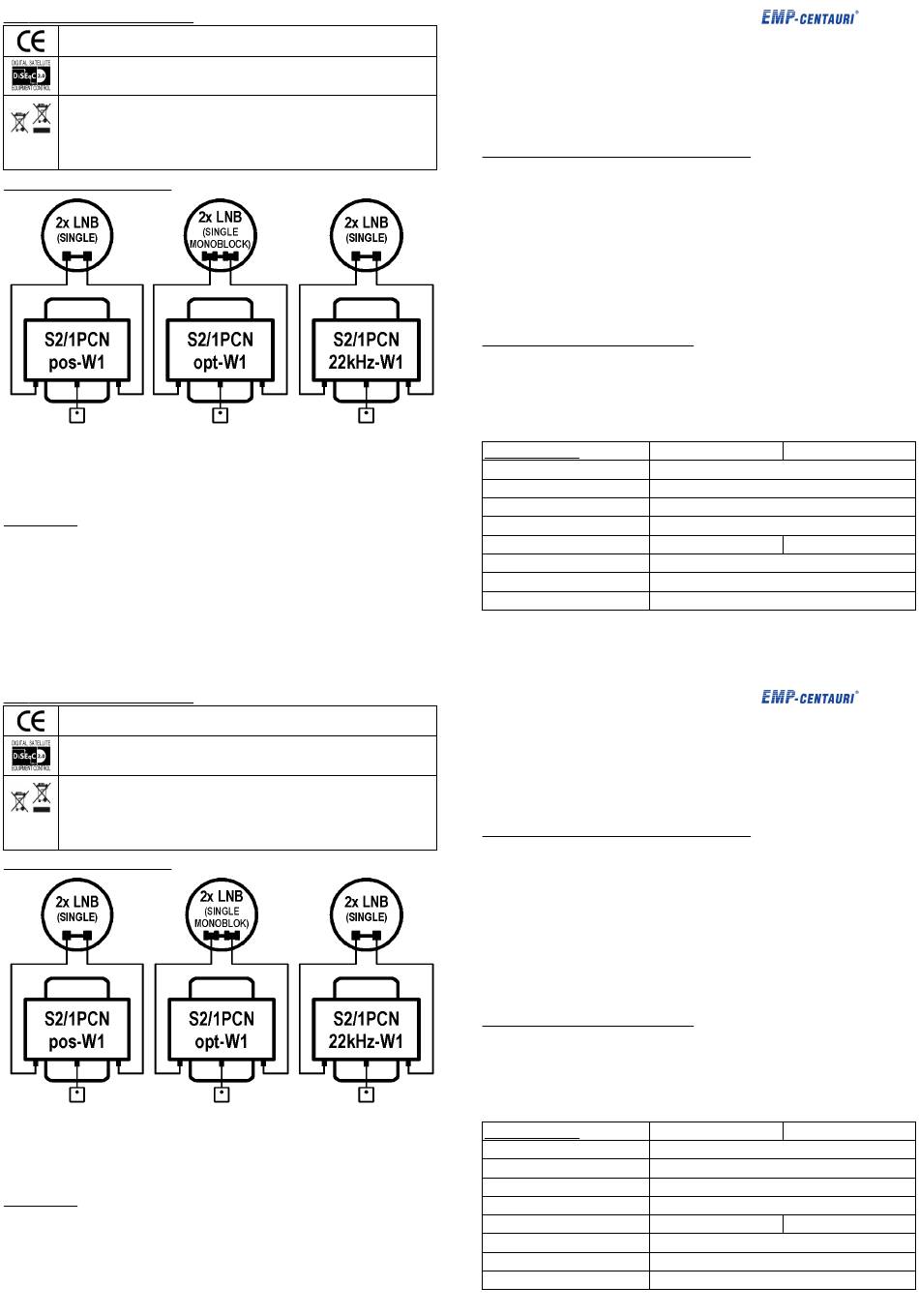

10 Wiring Diagrams
11 Contact
EMP-Centauri s.r.o.
5. kvetna 690
339 01 Klatovy 4
Czech Republic
9 S ymbols Explanation
certificate of conformity
international standard for digital satellite equipment control,
number (1.0, 1.1, 1.2 or 2.0) determines DiSEqC version
According to EU directive, electric and electronic devices which
are identified by one of the following symbols must not be
disposed of together with municipal waste. When disposing of the
old device, use local waste collection and separation systems.
10 Wiring Diagrams
11 Contact
EMP-Centauri s.r.o.
5. kvetna 690
339 01 Klatovy 4
Czech Republic
tel: (+420) 376 314 852
fax: (+420) 376 314 367
info@emp-centauri.cz
www.emp-centauri.eu
4 of 4
tel: (+420) 376 314 852
fax: (+420) 376 314 367
info@emp-centauri.cz
www.emp-centauri.eu
4 of 4
Instruction Manual
1/003201 A
S2/1PCNpos-W1 S2/1PCNopt-W1 S2/1PCN22kHz-W1
Dear Customer, congratulations on the purchase of the EMP-
Centauri product. Before its installation and putting into operation,
read carefully the entire operation manual. Keep the purchase and
rework (if any) records for future need.
1 Field of Application, Warranty
The product is designed for the distribution of satellite (SAT), TV and radio
signals. We recommend the device to be installed and serviced by the
qualified technician. EMP-Centauri's PROFI CLASS products are covered
under 6 (six) years warranty from the date of purchase. The warranty shall
not apply to the product used for other than the specified purpose. The user
will be responsible for injury or material damage which may arise in
consequence of any product use in contradiction with the manual. Repairs or
any interventions in the product may be performed only by EMP-Centauri
company, or other companies authorized by EMP-Centauri.
2 Technical Specifications
The products are switches in the weatherproof housing for distribution of
satellite signals from 2 satellite positions to 1 user. They are controlled from a
receiver by analogue (S2/1PCN22kHz-W1) or DiSEqC 2.0 (S2/1PCNpos-W1,
S2/1PCNopt-W1) commands. The switches transmit DC voltage, 22 kHz and
DiSEqC commands. The inputs are short-circuit protected.
Specifications S2/1PCNpos,opt-W1 S2/1PCN22kHz-W1
Number of inputs / Outputs 2/1
Frequency Range SAT 950-2300 MHz
Insertion Loss (avg) SAT 5 dB
Isolation (min) SAT 25 dB (between inputs)
Control DiSEqC 2.0
Current Consumption 30 mA (18 V DC) from satellite receiver
LNB Current (max) 400 mA (18 V DC)
Dimensions (w,d,h) 8.2 x 7.7 x 2.3 cm
Instruction Manual
1/003201 A
S2/1PCNpos-W1 S2/1PCNopt-W1 S2/1PCN22kHz-W1
Dear Customer, congratulations on the purchase of the EMP-
Centauri product. Before its installation and putting into operation,
read carefully the entire operation manual. Keep the purchase and
rework (if any) records for future need.
1 Field of Application, Warranty
The product is designed for the distribution of satellite (SAT), TV and radio
signals. We recommend the device to be installed and serviced by the
qualified technician. EMP-Centauri's PROFI CLASS products are covered
under 6 (six) years warranty from the date of purchase. The warranty shall
not apply to the product used for other than the specified purpose. The user
will be responsible for injury or material damage which may arise in
consequence of any product use in contradiction with the manual. Repairs or
any interventions in the product may be performed only by EMP-Centauri
company, or other companies authorized by EMP-Centauri.
2 Technical Specifications
The products are switches in the weatherproof housing for distribution of
satellite signals from 2 satellite positions to 1 user. They are controlled from a
receiver by analogue (S2/1PCN22kHz-W1) or DiSEqC 2.0 (S2/1PCNpos-W1,
S2/1PCNopt-W1) commands. The switches transmit DC voltage, 22 kHz and
DiSEqC commands. The inputs are short-circuit protected.
Specifications S2/1PCNpos,opt-W1 S2/1PCN22kHz-W1
Number of inputs / Outputs 2/1
Frequency Range SAT 950-2300 MHz
Insertion Loss (avg) SAT 5 dB
Isolation (min) SAT 25 dB (between inputs)
Control DiSEqC 2.0
Current Consumption 30 mA (18 V DC) from satellite receiver
LNB Current (max) 400 mA (18 V DC)
Dimensions (w,d,h) 8.2 x 7.7 x 2.3 cm
analogue (0/22 kHz)
1 of 4
analogue (0/22 kHz)
1 of 4
