EMP-Centauri S16/1PCP-W3 Instruction Manual

Instruction Manual
S16/1PCP-W3
Dear Customer
congratulations on the purchase of the EMP-Centauri product. Before its
installation and putting into operation, read carefully the entire operation manual.
Keep the purchase and rework (if any) records for future need.

1) Field of Application, Warranty

The product is designed for the distribution of satellite TV and radio signals. EMP-
Centauri's PROFI CLASS products are covered under 6 (six) years warranty from
the date of purchase. The warranty shall not apply to the product used for other
than the specified purpose. The user will be responsible for injury or material
damage which may arise in consequence of any product use in contradiction with
the manual. Repairs or any interventions in the product may be performed only by
EMP-Centauri company, or other companies authorized by EMP-Centauri.

2) Technical Specifications

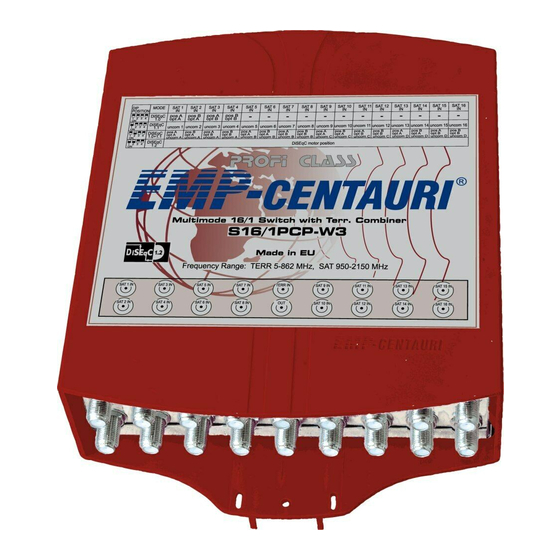

S16/1PCP-W3 is antenna switch for distribution terrestrial and satellite signals
from 16 satellite positions for 1 user in outdoor housing. Terrestrial input is
provided. The switch is controlled from satellite receiver by DiSEqC 1.0, 1.1 or 1.2
commands (according to selected operation mode). The switch passes through
DC voltage, 22 kHz and DiSEqC commands, its LNB inputs are short-circuit
protected, terr. input is DC-blocked.
Specifications
Number of inputs / Outputs 17 (16 x SAT + 1 TERR) / 1
Frequency Range
Insertion Loss (avg)
Isolation (min)
Control
Current Consumption
LNB Current (max)
Dimensions (w,d,h)
Temperature Range
1/003832-EN
S16/1PCP-W3
TERR 5–862 MHz, SAT 950–2150 MHz
TERR 2 dB, SAT 5 dB
SAT 25 dB (between inputs)
DiSEqC 1.0, 1.1, 1.2
80 mA (18 V DC) from satellite receiver
400 mA (18V DC)
17.2 x 20 x 6.9 cm
−30 °C – +70 °C
1 of 4
