WARNING: If the information in this manual is
not followed exactly, fire or explosion may result
causing property damage, personal injury or loss
of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
∗
Do not try to light any appliance.
∗
Do not touch any electrical switch; do not use
any phone in your building.
∗
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
∗
If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
Installer: Please leave this manual with the appliance owner for future reference
For use with natural gas or propane*
U
SERS'
O
PERATION AND
M
AINTENANCE
This appliance may be installed in an
af t e rm a rk et
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
*Conversion kit required for Propane use
7116 Beatty Dr
Mission, BC V2V 6B4
Canada

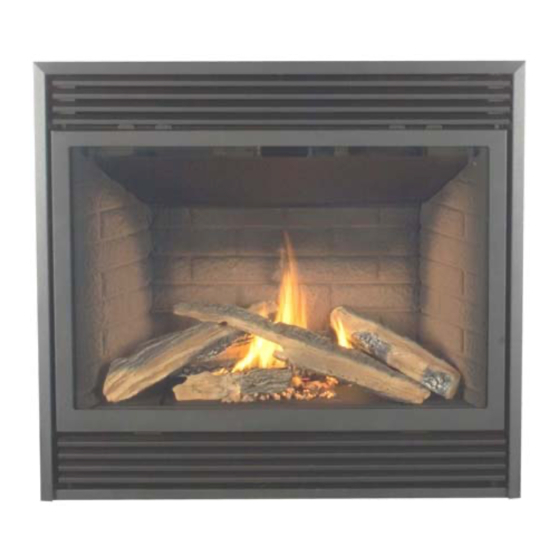

Optima 3600
Optima 3600
Direct Vented
Top or Rear Vent
Gas Room Heater
I
NSTALLATION
p e rm a n en t l y
M
ANUAL
l o c at ed,
200-0217
DECEMBER 2005
