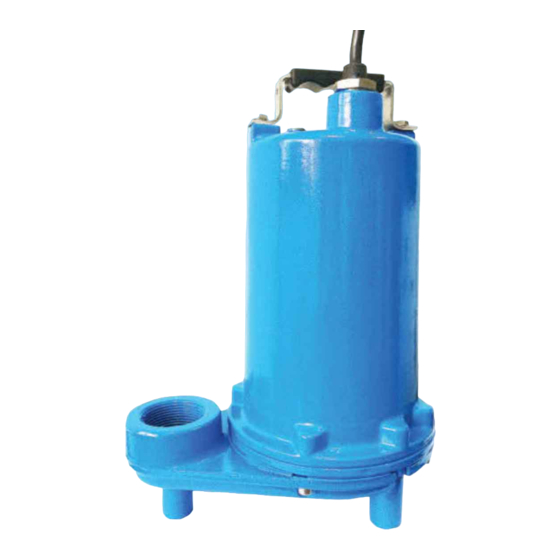

- Page 1 Installation, Operation & Maintenance Manual Submersible Effluent Pumps BPEV512 series 0.5 @ 3450 RPM barmesa.com IMPORTANT! - Read all instructions in this manual before operating or servicing a pump. Last update: 07/15/2021...
- Page 2 IMPORTANT! - Barmesa Pumps is not installations where there is systems, that are required to reduce responsible for losses, injury or human contact with pumped fluid.
-
Page 3: Specifications And Dimensions
Specifications & Dimensions DISCHARGE: 2" NPT, female, vertical. SPHERICAL SLD HNDLG: 3/4" LIQUID TEMPERATURE: 104° F (40° C) max. VOLUTE: Cast iron ASTM A-48 class 30. MOTOR HOUSING: Cast iron ASTM A-48 class 30. IMPELLER: Vortex. Cast iron ASTM A-48 class 30, dynamically balanced, ISO G6.3. SHAFT: 416 series stainless steel. -
Page 4: Receiving And Installation
Receiving & Installation 4Receiving inspection 4 Liquid Level Control Upon receiving the pump, it should Typical Discharge Pipe Mounted: inspected damage Refer to Figure 2 below which shows shortages. If damage has occurred, a typical installation of a 1 phase 115 file a claim immediately with the volt pump using a level control company that delivered the pump. -
Page 5: Installation & Service
Installation & Service Both a check valve and a shut-off This means that overload 3. Name Plate Record valve are recommended for each protector will trip out and shut the information from the pump name pump. The check valve is used to pump off if the windings become too plate to drawing in front of prevent backflow into the sump. - Page 6 Service With a flashlight, visually inspect the Apply pipe thread compound to 7. Remove screws and washers and oil in the housing to make sure it is threads of pipe plug then assemble lift motor housing and stator from clean and clear, light amber in color to housing.
- Page 7 Service 4Reassembly Motor: IMPORTANT! - All parts 5. Slide rotor/shaft with bearings and must clean before seal parts into seal plate until bearing reassembly. Handle seal seats into seal plate. Install snap ring into seal plate. parts with extreme care. DO NOT damage lapped surfaces.
-
Page 8: Repair Parts
Repair Parts 4BPEV512 barmesa.com For Repair Part Please supply: Model Number and Serial as shown on Name Plate, and Part Description and Part Number as shown on Parts List. -
Page 9: Parts List
Parts List 4BPEV512 ITEM DESCRIPTION QTY. MATERIAL Cable assembly 20 ft Pump body HT200 Capacitor 30uf/300V 90° C Plastic Pin Capacitance clip Cross recessed pan head screw M4x10 Q235A Ground lead Upper bearing plate ZL102 Temperature protector 17AM032-05 Stator 10 Rotor 11 Lower bearing plate HT200 12 Bearing 6203 Z3... -
Page 10: Troubleshooting Chart
13. Piping attachments to building structure too loose or rigid NOTE: Barmesa Pumps assumes no responsibility for damage or injury due to disassembly in the field. Disassembly of the pumps or supplied accessories other than at Barmesa Pumps or its authorized service centers, automatically voids warranty. - Page 11 barmesa.com...
