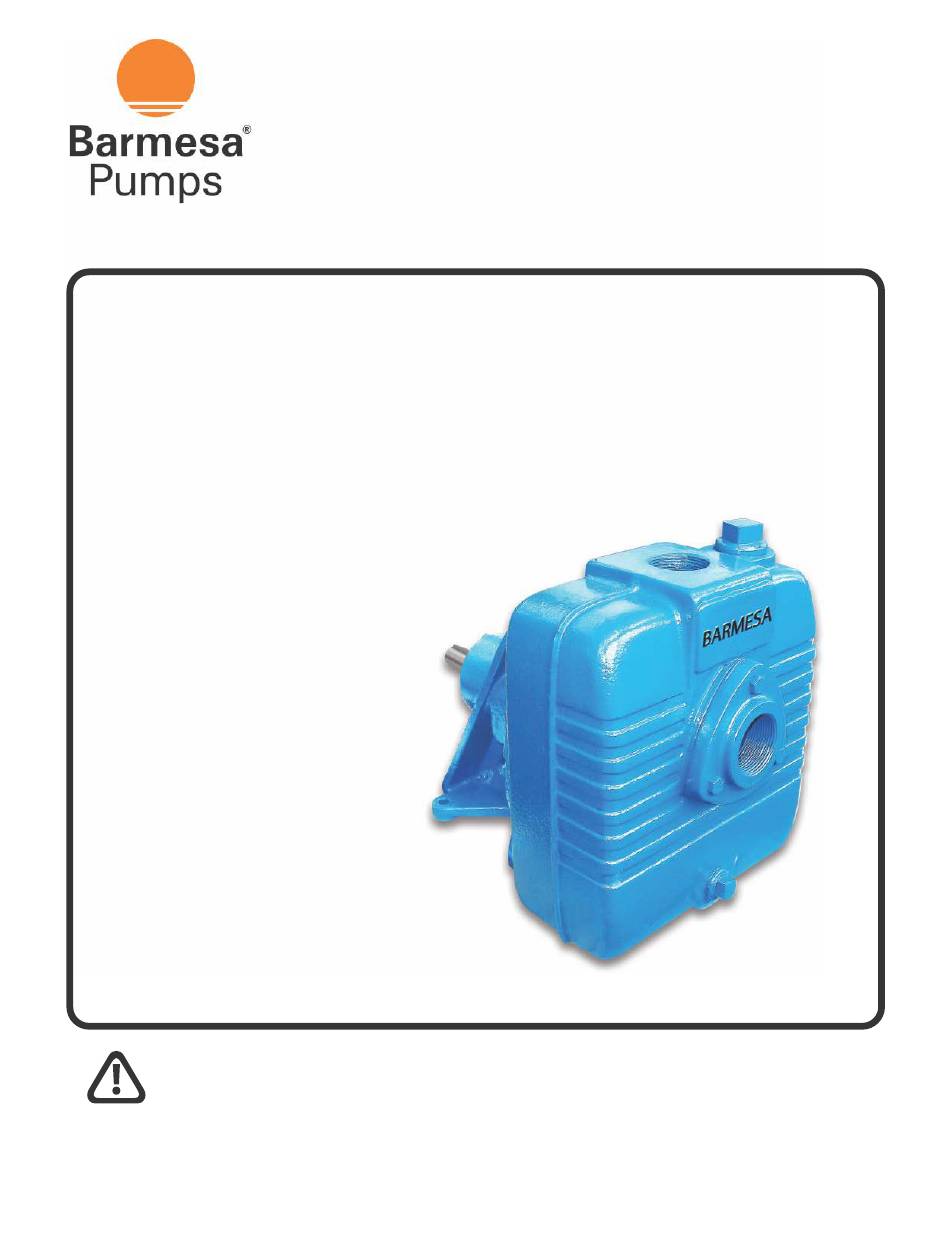

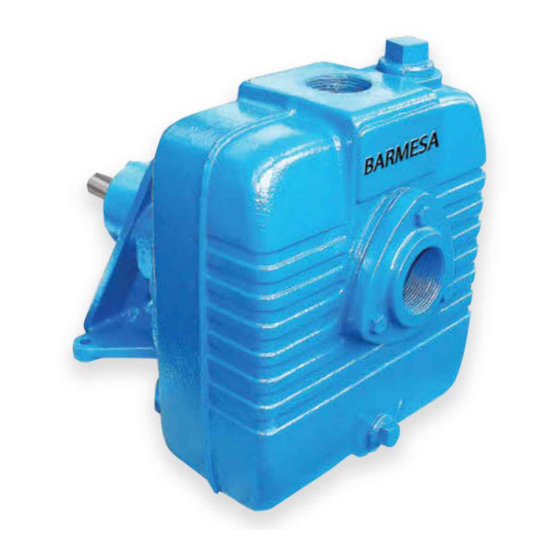

- Page 1 Installation, Operation & Maintenance Manual Self-Priming Frame Mounted Pump BSP5CU & BSP7CU 1½" x 1½" & 2" x 2" Universal Drive barmesa.com IMPORTANT! - Read all instructions in this manual before operating or servicing a pump. Last update: 10/18/2021...
- Page 2 Also record the Voltage and Current from power source before Readings at Startup: IMPORTANT! - Barmesa Pumps is not handling any aspect of the pumping responsible for losses, injury or Model Number: ____________________ system. Lock out power and tag.
- Page 3 Specifications & Dimensions SUCTION/DISCHARGE: 1½" x 1½" (BSP5CU) & 2" x 2" (BSP7CU) NPT, female flange. LIQUID TEMPERATURE: 160 °F (71 °C) max. VOLUTE: Cast iron ASTM A-48 class 30. BODY: Cast iron ASTM A-48 class 30. PEDESTAL: Cast iron ASTM A-48 class 30.
- Page 4 Recommendations, Warnings & Installation 4Receiving inspection 4Controls 4Lubrication Upon receiving the pump, it should Be sure the electrical specification of Lubrication not required as seal and inspected damage the control selected properly match impeller are water lubricated and shortages. If damage has occurred, the electrical specifications of the need no attention.
- Page 5 Operation, Service & Repair Pull volute from pedestal. Unscrew the impeller from shaft in the right hand direction. Take note of the size and quantity of shims used. To reassemble, use the required number of shims to result in an impeller-to-volute clearance of 0.015"...
- Page 6 Service & Repair barmesa.com For Repair Part Please supply: Model Number and Serial as shown on Name Plate, and Part Description and Part Number as shown on Parts List.
- Page 7 Repair Parts barmesa.com For Repair Part Please supply: Model Number and Serial as shown on Name Plate, and Part Description and Part Number as shown on Parts List.
-
Page 8: Troubleshooting Chart
Troubleshooting Chart Always disconnect the pump from the electrical power source before handling. If the system fails to operate properly, carefully read instructions and perform maintenance recommendations. Symptom Possible Cause(s) Corrective Action 1. Fill pump body with water. 1. Casing not filled with water 2. - Page 9 barmesa.com...
