Video-inserter for front- and rear-view camera
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 07.10.2021
Video-inserter
CI-RL4-ELINK
Easy Link infotainment
and two additional video sources
HW: CAM(100)/(V50+V41)
CI-RL4-ELiNK
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL4-ELINK
Summary of Contents for Car-Interface CI-RL4-ELINK

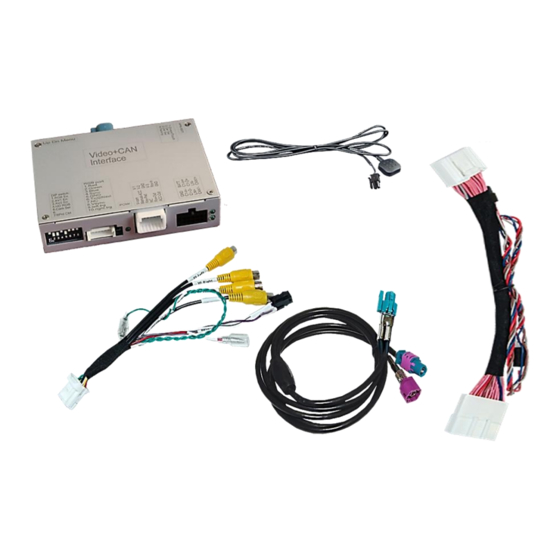

- Page 1 Video-inserter CI-RL4-ELINK Compatible with Renault vehicles with Easy Link infotainment with 7 or 9.3inch monitor Video-inserter for front- and rear-view camera and two additional video sources Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera ...
-
Page 2: Table Of Contents
Case 1: Interface receives the reverse gear signal 3.3.2. Case 2: Interface does not receive the reverse gear signal 3.4. Connection video-interface and keypad 3.5. Picture settings 4. Interface operation 5. Specifications 6. FAQ – Trouble Shooting-Interface functions Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 3: Prior To Installation
The place of installation has to be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 5: Connectors - Video Interface
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 6: Dip Switch Settings
*The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. After each Dip-switch-change a power-reset of the Video Interface has to be performed! See the following chapters for detailed information. Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 7: Activating The Front Camera Input (Dip 1)
If set to OFF, 9.3inch monitors are selected on the interface. Note: Dip4, 6 and 7 are out of function and have to be set to OFF. After each Dip-switch-change a power-reset of the Video Interface has to be performed! Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 8: Dip - Red
If the necessary stabilized power supply for the interface is not taken directly from the battery, the chosen connection has to be checked for being constantly stabile. The interface needs a permanent 12V source! 2.1. Place of installation The interface is designated to be connected behind the vehicle`s monitor. Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 9: Connection Schema
2.2. Connection schema Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 10: Connection - Picture Signal Cable
Note: No liability for vehicle wire colours and pin definition! Changes by the vehicle manufacturer are possible. The given information has to be verified by the installer. Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 11: Connection - Pnp Power/Can Cable
24pin connector of the enclosed PNP Power/CAN cable. Connect the enclosed PNP Power / CAN cable’s opposite female 24pin connector to the previously become free male 24pin connector of the head-unit. Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... - Page 12 2.4.2. Connection – PNP Power/CAN cable for 8pin monitor connection For systems with 8-pin connection, the 24pin PNP power/CAN cable has accordingly to be changed. Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK...
-
Page 13: Analogue Power Supply
Connect the female 12pin connector of the 12pin interface cable to the male 12pin connector of the video interface. Connect the 12pin interface cable’s purple coloured wire Manual ACC +12V ACC terminal 15 or to +12V S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 14: Power Supply Output
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) ACC Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 15: Connection - Video Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 16: Audio Insertion
The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A longer press of the external keypad push button will switch the interface to the next source! Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 17: After-Market Rear-View Camera
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the 12pin interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary, permanent power supply to the camera electronic. Both green cables “Reverse IN” “Reverse OUT” have to remain connected. Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 18: Case 2: Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect permanent power / 12V to the relay’s input connector (30). Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 19: Connection Video-Interface And Keypad
Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the keypad’s invisible connection and availability is strongly recommended. Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 20: Picture Settings
Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. The following settings are available Contrast Brightness Saturation Position H (horizontal) Position V (vertical) Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 21: Interface Operation
Video input 0.7V - 1V Video input formats NTSC / PAL RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions video-box 118 x 25 x 104 mm (W x H x D) Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... -
Page 22: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK... - Page 23 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-05 0068 Made in China Version 07.10.2021 HW: CAM(100)/(V50+V41) CI-RL4-ELiNK...
