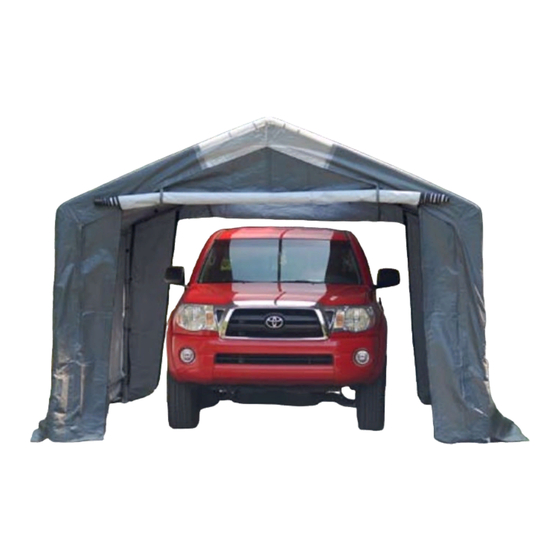

12 ft 6 in Wide x 24 ft Deep x 6 ft 2 in Side Height /
With 10 Legs, Cover with Side Walls, 2 Zippered End Walls,
Woven Steel™ Roof Cables, Elastic Ball Straps, Foot Pads and Anchors.
These Tools Are
Recommended:
Distributed by:
PIC America, LTD.
1730 Five Points Lane • Fuquay-Varina, NC 27526
1-800-800-6296 • www.kingcanopy.com
Atlas
12 ft x 24 ft
™
8 ft 2 in Center Height
King Canopy Item # AT1224S
WARNING:
Keep all flame and heat sources
away from this tent fabric. Meets
the flammability requirements of
CPAI-84 Section 6 and NFPA-701.
It is not fire proof. The fabric will burn if
left in continuous contact with
any flame source.
Advertisement
Table of Contents
Related Manuals for KING CANOPY AT1224S
Summary of Contents for KING CANOPY AT1224S
- Page 1 12 ft 6 in Wide x 24 ft Deep x 6 ft 2 in Side Height / 8 ft 2 in Center Height King Canopy Item # AT1224S With 10 Legs, Cover with Side Walls, 2 Zippered End Walls, Woven Steel™ Roof Cables, Elastic Ball Straps, Foot Pads and Anchors.
- Page 2 PARTS LIST 3X4-2PCS-AT-A 20 pc 2”x39.5” Silver Swedge Pipe 2X0-2PCS-AT-B 10 pc 2”x23.75” White Swedge Pipe 2X7-2PCS-AT-C 10 pc 2”x31.125” Silver Swedge Pipe 2X9PCS-AT-D 20 pc 1.375”x32.5” Silver Pipe 3X4PCS-AT-E 20 pc 1.375”x39.75” Silver Swedge Pipe 3W2PCS-AT-R 2 pc 3-way Connectors - Silver Right Side Peak 3W2PCS-AT-L 2 pc...
- Page 3 ROOF FRAME ASSEMBLY Step A Separate all pieces for the roof section first according to size and shape and arrange per the illustration shown below. Right Corner Left Corner 3-Way 3-Way White connectors used in center peak assembly Left Corner Right Corner 3-Way 3-Way...
- Page 4 COVER & LEGS ASSEMBLY Step A Drape the cover over the the roof frame with the grommets to the bottom facing the roof frame and attach with ball bungees at each end. You may want to fold the sidewall section back onto the roof frame to keep it out of your way off the ground until you attach the legs.
- Page 5 COVER & LEGS ASSEMBLY CONNECT THE LEG POLES TO THE ROOF ASSEMBLY. Step A First insert the pipes (Parts A & C) for the middle poles into the 3 and 4-way connectors, and then connect the end leg pipes in the same way. Do the same for the other side. Push the foot pads onto the bottom of each leg.
- Page 6 ANCHORING YOUR UNIT This canopy is designed for use as a temporary structure. After assembly, the canopy MUST BE securely anchored to the ground to prevent damage from winds. Your canopy will act like a kite in the wind if not properly and securely anchored to the ground.
- Page 7 IMPORTANT NOTICE: PLEASE READ CAREFULLY We are confident that you will be completely satisfied with your King Canopy unit. Please take a moment to read the very important information below, and call us with any questions you may have. King Canopy/PIC America, LTD. has no control over wind, snow, ice, rain or any other weather condition and we are in no way responsible for any damage caused by the canopy or to the canopy.
- Page 8 Improper Anchoring, Strong Winds, Rain Snow, or Ice King Canopy/PIC America, LTD. does not guarantee these canopies under strong weather conditions. These canopies are designed to protect against damages caused by sun, rain, tree sap, birds, etc. They are not designed to hold roof loads that accompany snow, ice or heavy rains.
