Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Installation tools
Mounting hardware used on this product
includes fasteners with hexalobular socket
heads (ISO 10664). Installation requires the
use of matching tools.
Surge Protection
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and
secondary (Type 2) surge arrestors in compliance with EN61643-11/
IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LIGHTING
Installation and Maintenance
Instructions

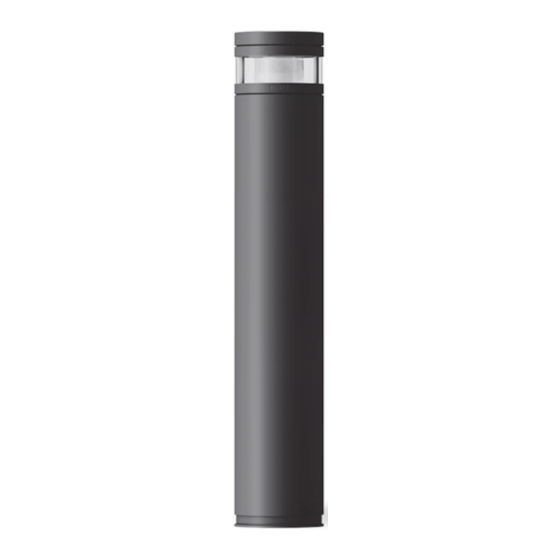

Bollard
CFY259 LED
ZFY230 LED
KTY234 LED
KTX234 LED
INSTALLER
HOTLINE
+61 458 933 399
7am – 7pm AEST
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WE-EF KTY234
Summary of Contents for WE-EF KTY234
- Page 1 WE-EF LIGHTING Installation and Maintenance Instructions Bollard CFY259 LED ZFY230 LED KTY234 LED KTX234 LED INSTALLER HOTLINE +61 458 933 399 7am – 7pm AEST Do not open during installation Surge Protection This product is factory-sealed. For comprehensive protection of a luminaire installation against lightning and...
- Page 3 Bollard ZFY230 ZFY230 H = 600 mm H = 1000 mm ø 180 ø 180 1000 IP66, Class I (Class II, III available on request), ta = 25°C Weight for ZFY230 for ZFY230 1000 Accessories: Planted root – Galvanised steel. ESV4 for ZFY230 300-0461...
- Page 4 H = 270 mm H = 600 mm H = 1000 mm ø 180 IP66, Class I (Class II, III available on request), ta = 25°C Weight for KTX234 for KTY234 for KTY234 1000 Accessories: Planted root – Galvanised steel. ESV4 for KTY234...
- Page 5 Bollard CFY259 CFY259 H = 685 mm H = 1085 mm ø 240 ø 240 1085 CFY259 CFY259 H600 / 6 LED H1000 / 2x6 LED 65° ø 190 ø 240 IP66, Class I, (Class II, III available on request) ta = 25°C Weight WARNING : HEAVY ITEMS for CFY259...
-
Page 6: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. To remove the head of the luminaire during maintenance, loosen screw X with a Torx T-20 tool and rotate anti-clockwise until it can be lifted up. - Page 7 To insert head KTY234 Head For KTY234, ensure that the slim shield on the LED head lines up to the grub screw X. Confirm head is secure by ensuring head cannot be rotated once grub screw secure. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open the luminaire or remove the bollard head while mains supply is switched on.
-
Page 8: Installation Procedure
D (base is integrated If the supplied cable of the KTX luminaire is damaged, on KTX). Note that the rear of the bollard is where it must be replaced by WE-EF or a WE-EF authorized the head retention screw X is positioned. agent. - Page 9 Torque: Screw Torque max. 2.0 Nm Fig. 2 max. 4.0 Nm max. 6.0 Nm max. 15.0 Nm max. 100.0 Nm Fig. 3 Fig. 1...
- Page 12 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING INSTALLER United Kingdom HOTLINE Tel +44 844 880 5346 +61 458 933 399 Fax +44 844 880 5347 7am – 7pm AEST info.uk@we-ef.com TO9235W0218 Rev3 310521 © WE-EF 2021 subject to change.
- Page 13 WE-EF LIGHTING Installation and Maintenance Instructions for Planted Root ESV4...
- Page 14 This page intentionally left blank...
- Page 15 ESV4 300-0464 6.1 kg 3.9 kg Ø150 Ø220 Suitability* Suitability* CFY259 FLC230/240 ZFY250-AP KTX/Y234-AP G_Y234-AP ZFY230-AP C_Y150 G_Y224-AP RRX324 XR_324-AP * If in doubt, please contact you WE-EF authorised agent for the suitability of ESV plant root type with nominated luminaire...
-
Page 16: Installation Instructions
When the ESV is being installed for the following the site specific conditions. products: KTY234 / KTX234 / ZFY230 / CFY259, please orientate the bolt pattern as shown (base The instructions are a guideline for installation to plate is 45°... - Page 17 Installation Instructions 6. Fit the nominated bolts through the mounting 5. Place the ESV in the form work for the concrete plate. Ensure several threads feed through the plate pad, ensuring orientation, position and levels are and tape off top and bottom. The bolts are inserted correct.
- Page 18 This page intentionally left blank...
- Page 19 This page intentionally left blank...
- Page 20 WE-EF LIGHTING WE-EF LIGHTING Australia Thailand Tel +61 3 8587 0444 Tel +66 2 738 9610 Fax +61 3 8587 0499 Fax +66 2 175 2174 info.australia@we-ef.com info.asiapacific@we-ef.com WE-EF LEUCHTEN WE-EF LIGHTING United States of America Germany Tel +1 724 742 0030...
