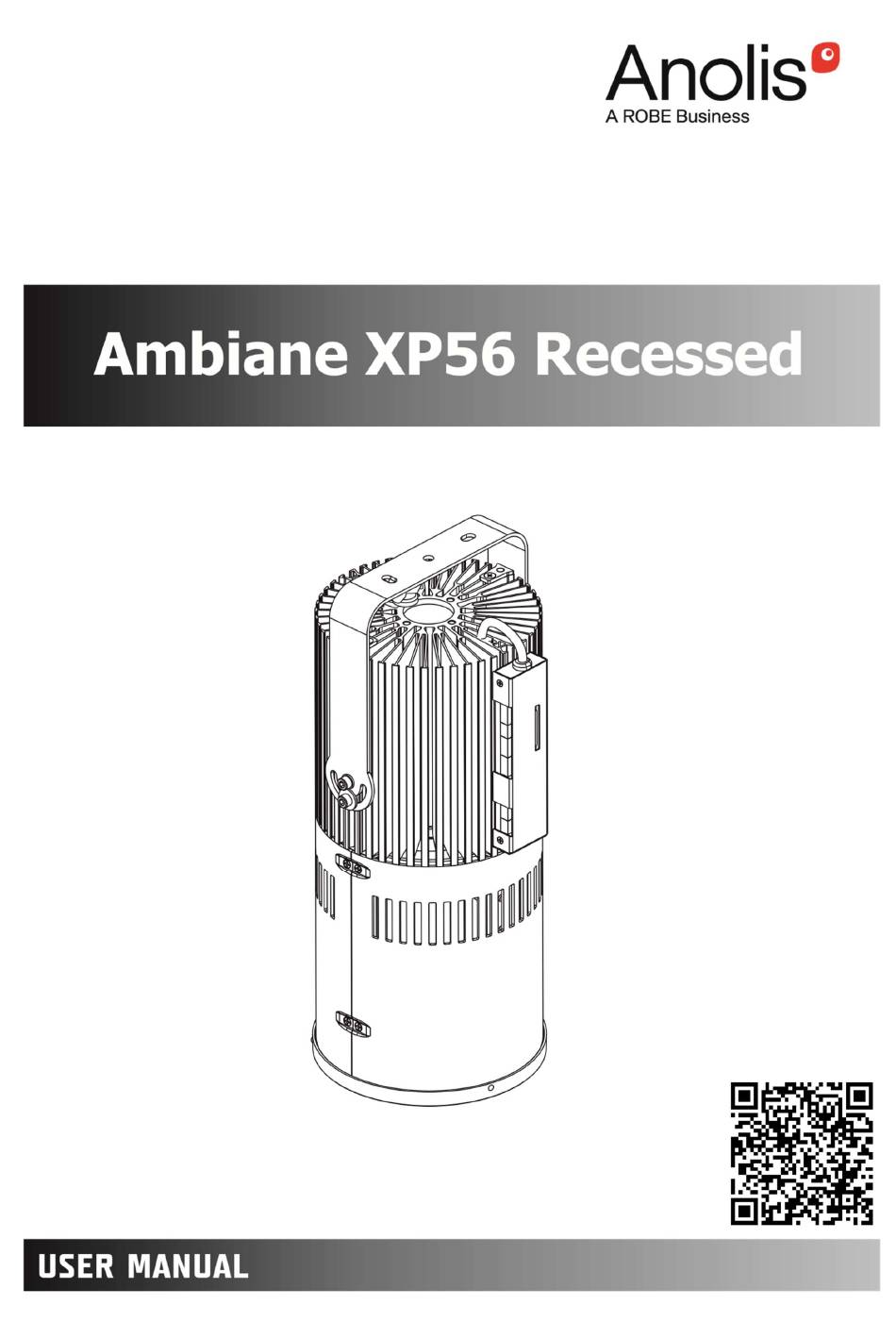

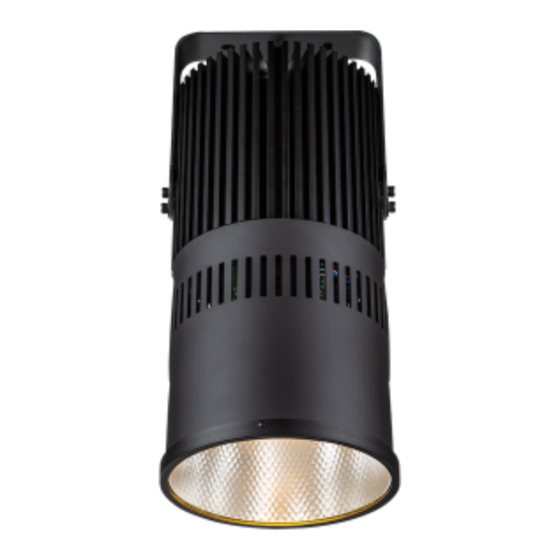

  • Page 1 QR code for user manual Version 2.5...

  • Page 2: Table Of Contents

    Ambiane XP56 Recessed Table of contents 1. Attention ..................................3 2. Installation .................................. 4 2.1. DMX and DALI address setting and control ......................7 2.2 0-10V control ................................ 8 3. RDM .................................... 8 4. Optional accessories installation ..........................10 4.1 Top frame installation ............................10 4.2 Louver installation ..............................

  • Page 3: Attention

    Ambiane XP56 Recessed 1. Attention The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. The unit was designed for indoor use only. Do not install the unit near highly inflammable liquids or materials. Do not allow anything to rest on the unit.

  • Page 4: Installation

    Ambiane XP56 Recessed 2. Installation Always switch off power supply of the unit before connecting or disconnecting the unit 1. Prepare a circular opening (diameter of 186mm) in the lower ceiling (1) as shown on the picture below. If you will use the Louver for Ambiane XP Recessed, this circular opening in the lower ceiling has to be of diameter of 190mm.
  • Page 5 Ambiane XP56 Recessed 3. Connect cables with installed connectors to the Ambiane XP56 Recessed. If you need access to the control PCB RB3729 (8), unscrew the four screws (7) on the cover (6). The aperture (9) in the cover (6) allows you access to DIP switch. The control PCB (RB3729) The green LED on the PCB signals way of DMX address setting: Trimmer for light intensity...
  • Page 6 Ambiane XP56 Recessed The fixture can be controlled by one of the following methods: DMX 512 DALI 0-10V (for PW or TD version only) The fixture is equipped with two DMX and DALI connection blocks for easy connection to DMX or DALI chain (In/Out method).

  • Page 7: Dmx And Dali Address Setting And Control

    Ambiane XP56 Recessed 2.1. DMX and DALI address setting and control The DIP switch on the control PCB (RB3729) allows you to set DMX address and run a test light. DIP 10 - if it is switched to ON=test light (the fixture lights at 3200K (for RGBW and TW version)) DIP 11 - has to be switched to OFF position to receive DMX 512 and DALI, position ON=0-10V control Note: If DIP 11=OFF (fixture is controlled by DMX and DALI), the last coming command switches the fixture to the corresponding operation mode (DMX operation by a DMX command, DALI operation by a DALI command).

  • Page 8: 0-10V Control

    RDM allows you to set a DMX address, select DMX mode, readout software version of the fixture etc. It is also used for fixture software update by means of the Robe Uploader. RDM model ID for the Ambiane XP56 Recessed is 0x0109.
  • Page 9 Ambiane XP56 Recessed SLOT_INFO SLOT_DESCRIPTION DEFAULT_SLOT_VALUE PARAMETER_DESCRIPTION...

  • Page 10: Optional Accessories Installation

    Ambiane XP56 Recessed 4. Optional accessories installation Top frame installation The Top frame for Ambiane XP Recessed (2) serves for covering of the opening in the lower ceiling (1) if it is required. Note: The Top frame has to be placed under lower ceiling before sliding it onto the housing of the Ambiane XP56 Recessed.

  • Page 11: Louver Installation

    Ambiane XP56 Recessed 4.2 Louver installation 1. Unscrew two screws(1) on both sides of the Ambiane XP56 Recessed. 2. Slide the louver (2) onto the housing of the Ambiane XP56 Recessed. 3. Secure it by means of two socket head screws M4 x 14 (3) /screws are enclosed with the louver/ on both sides of the housing of the Ambiane XP56 Recessed.

  • Page 12: False Ceiling Mounting Adaptor Istallation

    Ambiane XP56 Recessed 4.3 False ceiling mounting adaptor installation 1. Insert the bottom part (1) of the false ceiling mounting adaptor into the top part (2) of the false ceiling mounting adaptor and secure it by means of three screws M4x12 (3) /screws are enclosed with the false ceiling mounting adaptor/ on both sides of the installation tool.

  • Page 13: Dmx Protocols

    Ambiane XP56 Recessed 5. DMX protocols Variant RGBW, version 1.1 Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Function Type of Channel Channel Channel Channel Channel value control proportional 0-255 Red LEDs saturation control (0-->100%) Red Fine proportional Red LEDs saturation control (0-->100%) 0-255 Green...
  • Page 14 Ambiane XP56 Recessed Variant TD, PW version 1.1 Mode 1 Mode 2 Function Type of Channel Channel value control Dimmer proportional 0-255 Light intensity coarse (0-->100%) Dimmer Fine proportional 0-255 Light intensity (min.-->max.)

  • Page 15: Technical Specifications

    Ambiane XP56 Recessed 6. Technical specifications Nominal input voltage: 48V DC Input voltage range: 44-50V DC Max. power consumption: 150W Light source: High Power LED module Beam angle: 20°, 30°,45°, 60° Projected Lumen Maintenance: L90B10 >90.000 hrs, Ta = 25°C / 77°F °F) Colour Variants: RGBW (W - 2700K or 4000K), Pure White, Tunable White, Tungsten Dim...
  • Page 16 Ambiane XP56 Recessed Dimensions mm [inch] Ambiane XP56 Recessed with Top frame Dimension L1 depends on U-holder position Ambiane XP56 20°/30°, L2=395 [15 9/16”] Ambiane XP56 20°/30°, L1=448 [17 5/8”] – 528 [20 13/16”] Ambiane XP56 45°, L2=370 [14 9/16”] Ambiane XP56 45°, L1=423 [16 5/8”] –...
  • Page 17 Ambiane XP56 Recessed Ambiane XP56 Recessed with Louver 5° Ambiane XP56 Recessed with Louver 10°...
  • Page 18 Ambiane XP56 Recessed Ambiane XP56 Recessed in the false ceiling mounting adaptor...
  • Page 19 Ambiane XP56 Recessed False ceiling mounting adaptor...
  • Page 20 Ambiane XP56 Recessed Top frame for Ambiane XP Recessed Louver 5° for Ambiane XP Recessed...
  • Page 21 Ambiane XP56 Recessed Louver 10° for Ambiane XP Recessed Included items 1 x Ambiane XP56 Recessed 1 x Set of cable connectors 1 x User manual Optional accessories Trim for Ambiane XP Recessed RAL 9005 (P/N 10980572) Louver 10° for Ambiane XP Recessed RAL9005 (P/N 10980533) Louver 5°...

  • Page 22: Cleaning And Maintenance

    The ROBE Uploader is a software for automatized software update of Robe and Anolis fixtures. It takes advantage of RDM support. Note: Software update by means of the Robe Uploader cannot be used if fixtures are connected by means of DALI connection.

  • Page 23: Disposing Of The Product

    The fixtures have to be connected to power. The control PC should be connected to the Internet. The Robe Uploader software and user manual is available at https://www.robe.cz/robe-uploader/ If you do the software update by means of the Robe Uploader, switching fixtures to the update mode (and from the update mode) is made automatically.
