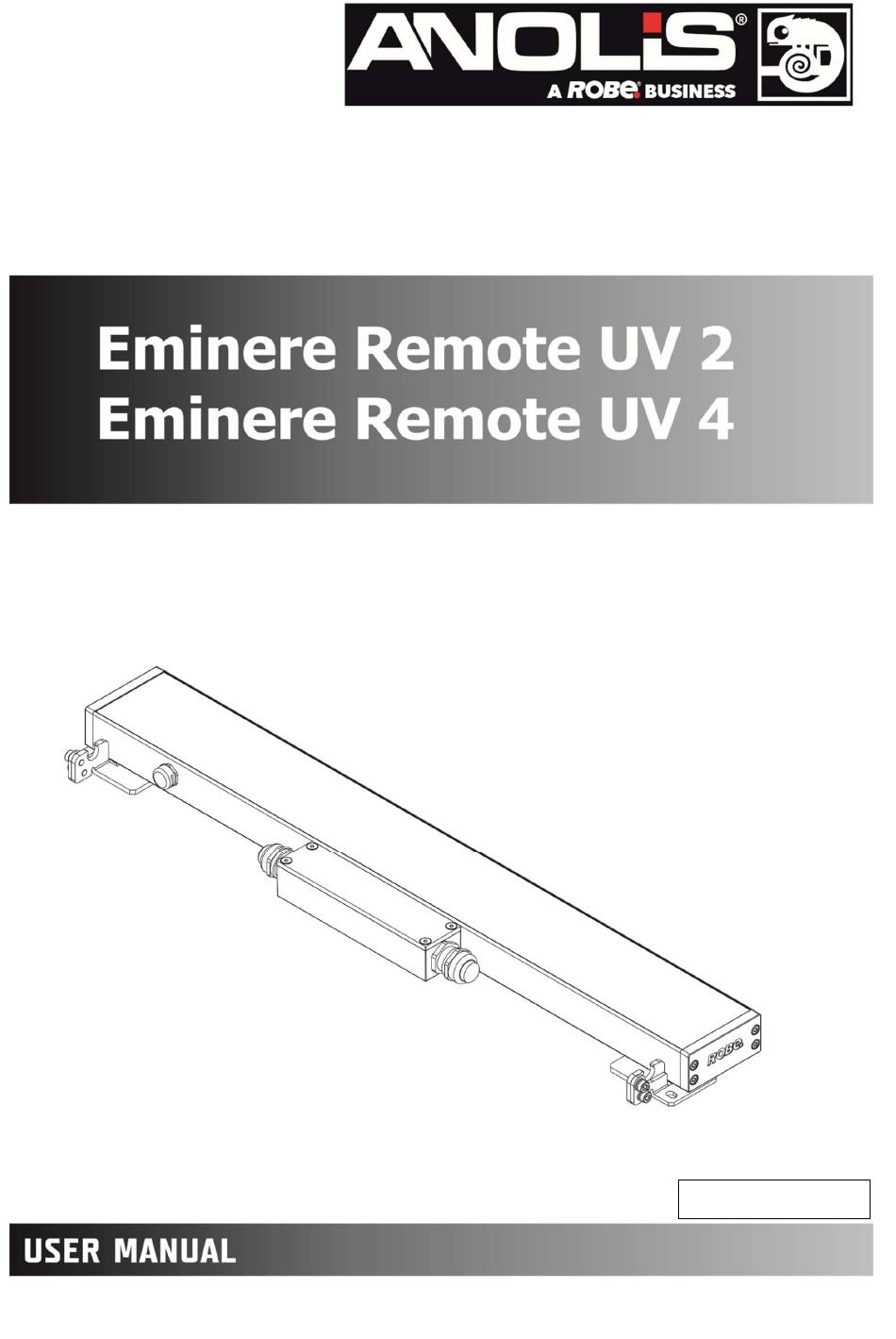

- Page 1 Preliminary version...
-
Page 2: Table Of Contents
Eminere Remote UV Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................5 3. Installation .................................. 6 3.1 Mounting the fixture ............................6 3.2 Connection to driver ............................. 6 3.3 Wiring of the junction box ............................ 8 4. -
Page 3: Safety Instructions
Eminere Remote UV FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Eminere Remote UV ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual. - Page 4 Eminere Remote UV DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT! Always disconnect the fixture from power before cleaning, servicing or installing. The fixture was designed for outdoor use. This fixture must not be used for underwater installation. When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
-
Page 5: Fixture Exterior View
Eminere Remote UV 2. Fixture exterior view 1. Transparent glass cover 2. Gore tex valve 3. Cable gland M20 (IN) 4. Housing 5. Mounting brackets 6. Cable gland M20 (OUT) 7. Junction box... -
Page 6: Installation
Eminere Remote UV 3. Installation 3.1 Mounting the fixture The Eminere Remote UV can be arranged in any orientation on a flat, non-flammable surface by means of two mounting brackets (5) which can be tilted by 30°. 3.2 Connection to driver The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. - Page 7 Eminere Remote UV The table below states max. number of Eminere Remote UV modules connected to the E-box Remote/E-box Remote Basic. Max. number of Emineres Remote UV connected to the E-box Remote/E-box Remote Basic Cable length * Eminere Remote UV 2 Eminere Remote UV 4 25 m 50 m 75 m...
-
Page 8: Wiring Of The Junction Box
Eminere Remote UV 3.3 Wiring of the junction box 1. Unscrew the four screws (9) on the cover (8) of the junction box (7), remove the cover (8) and the gasket (10). 2. Remove the end cap (11) from cable glands before passing cables throw cable glands M20 (3,6). The cable glands M20x1.5 can be used for cables of a diameter of 7-13mm. - Page 9 Eminere Remote UV US version Connector Function LEDs + Data + Data - LEDs - Ground Colour of wire Orange Black White Green Note for E-box Remote Basic. If the Emineres Remote UV are connected to the LED output of the E-box Remote Basic, the last Eminere Remote UV has to be terminated by a terminator.
- Page 10 Eminere Remote UV To keep declared IP rating of the fixture, every cable gland has to be covered with the end cap (11) if the cable gland is not used for cable passing. We recommend to apply an adequate layer of the paste LOCTITE 5331 on the plastic holder of the cable gland before inserting it into the body of the gland and an adequate layer of the paste LOCTITE 577 on the thread of the body of gland (if the cable gland was screwed out).
-
Page 11: Technical Specifications
Eminere Remote UV 4. Technical specifications Power supply • Input voltage: 48 V • Power consumption: Eminere Remote UV 2: 40W Eminere Remote UV 4: 80W Optic • Light source: Eminere Remote UV 2: 16 x UV LEDs Eminere Remote UV 4: 32 x UV LEDs •... - Page 12 Eminere Remote UV Dimensions (All dimensions in mm [inch]) Protection factor • CE: IP 67 • US: Suitable for wet location Impact rating • CE: IK06 Operating ambient temperature range • -20°C /+40°C (-4°F /+104°F) Operating temperature • +67°C (+153°F @ Ambient +40°C @ Ambient +104°F Connection...
-
Page 13: Cleaning And Maintenance
Date of issue Description of changes the manual Specifications are subject to change without notice. January 29, 2022 Copyright © 2020-2022 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
