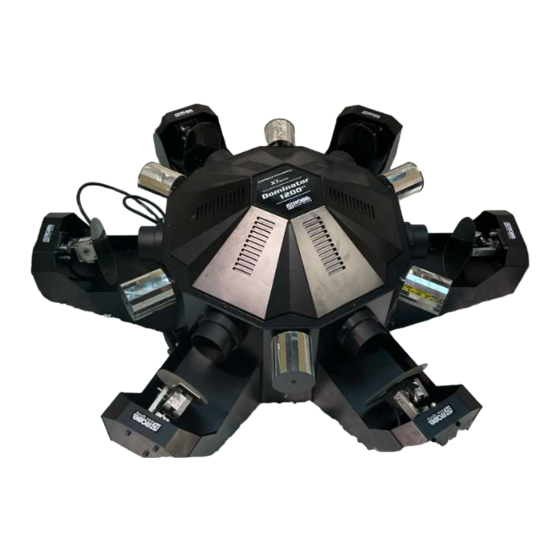

- Page 1 Intelligent Centerpiece Dominator 1200 USER MANUAL www.robe.cz...
-
Page 3: Table Of Contents
DOMINATOR 1200 XT Table of contents 1. Introduction ........................4 1.1 Safety instructions ..................... .4 1.2 Operating instructions ....................4 2. In general ........................5 2.1 Features ........................5 2.2 Description of components ..................5 2.3 Fitting the lamp ......................6 3. -
Page 4: Introduction
Caution ! Keep this device away from rain and moisture ! Unplug mains lead before opening the housing ! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START-UP! Every person involved with the installation, operation and maintenance of this device have to: - be qualilfied - follow the instructions of this manual Caution ! -
Page 5: In General
2. In general 2.1 Features 6 - fold Multiscanner - Intelligent centrepiece - New! Now with additional cylinder-effect for even more change - The rotation speed of the opposed cylinders is freely controllable - New! Now with stepper-motors - New! Now with rotating 3-fold prism-effect - New! All in all 6 different gobos - New! Multicolor-effect - 2 effect-wheels (prism, gobos, colors), which can be mixed individually... -
Page 6: Fitting The Lamp
Internal view 1 - Mirror head 2 - Mirror 3 - Objective 5 - Mirrored cylinder 12 - lense holder 13 - Lamp holder 14 - Side cover 15 - Gobo holder 16 - Prism holder 2.3 Fitting the lamp Caution ! Do not operate this device with opened service lid as continued direct contact with discharge lamps can cause burned skin... -
Page 7: Connection To The Mains
The projector can be installed in any postition without altering its operation characteristics. Caution ! Make sure that the device is fixed properly ! Ensure that the structure to which you are attaching the projector is secure ! For fixing the projector use the hole provided in the bracket. The hole in the adjustable mounting bracket has a diameter of 8mm. -
Page 8: Dmx Protocol
4.3 DMX protocol Channel Value Function Type of control Pan-movement mirrorhead 1and 4 0-255 Gradual pan mirror movement proportional Tilt-movement mirrorhead 1and 4 0-255 Gradual tilt mirror movement proportional Pan-movement mirrorhead 2and 5 0-255 Gradual pan mirror movement proportional Tilt-movement mirrorhead 2and 5 0-255 Gradual tilt mirror movement proportional... -
Page 9: Maintenance And Cleaning
Channel Value Function Type of control Rotation of the mirrored cylinders between mirrorhead 3/4 and 6/1 No rotation step 1-126 Anti-clokwise rotation with decreasing speed proportional 127-128 No rotation step 129-254 Clokwise rotation with increasing speed proportional No rotation step 5 Maintenance and cleaning Danger to life ! Disconnect from mains before starting maintenance operation !
