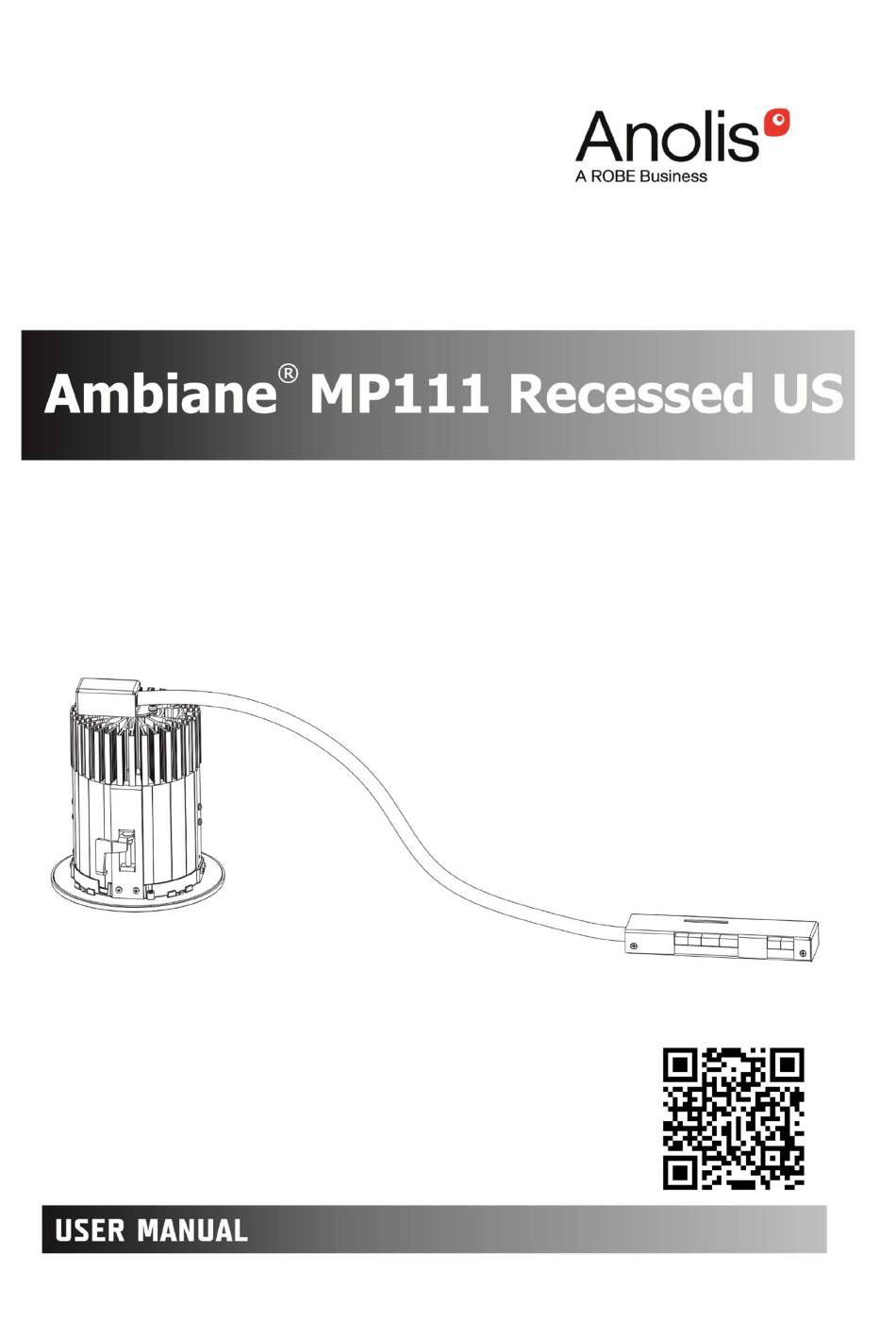

- Page 1 QR code for user manual Version 1.2...
-
Page 2: Table Of Contents
Ambiane MP111 Recessed US Table of contents 1. Attention ..................................3 2. Fixture exterior view ..............................4 3. Installation .................................. 5 3.1. DMX and DALI address setting and control ....................... 11 3.2 0-10V control ..............................12 4. RDM ..................................13 4.1 Example of Control panel in RDM manager ...................... -
Page 3: Attention
Ambiane MP111 Recessed US 1. Attention The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. The unit was designed for indoor use only. This unit falls under protection class III. Do not install the unit near highly inflammable liquids or materials. -
Page 4: Fixture Exterior View
Ambiane MP111 Recessed US and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. -
Page 5: Installation
Ambiane MP111 Recessed US 3. Installation The Ambiane MP111 Recessed must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. Always switch off power supply (Ambiane Power HP, Ambiane Power Rack US) of the control unit before connecting it to (disconnecting it from) the power supply (Ambiane Power HP, Ambiane Power Rack US). - Page 6 Ambiane MP111 Recessed US Example of connection The green LED on the PCB signals way of DMX address setting: LED lights-DMX address is set by means of the DIP switch. LED does not light- DMX address is set by means of RDM. Primary power connection Connector Function...
- Page 7 Ambiane MP111 Recessed US DMX connection Connector Function Data + Data- Data ground (shielding) 0-10V connection Connector Function +10V DMX connectors are used for 0-10V control Primary and secondary power. The primary power input serves for a standard power (e.g. Ambiane Power HP). The secondary power input serves for a backup power (in case that primary power failed) –...
- Page 8 Ambiane MP111 Recessed US 4 Remove the frame with reflector (5) from the Ambiane MP111 housing (6) by pushing and turning the frame with reflector (5) counter-clockwise. The frame with reflector (5) is fastened in the housing by means of four locks (7). 5.
- Page 9 Ambiane MP111 Recessed US Counter-clockwise screwing Clockwise screwing Lever (11) moves up Lever (11) moves down...
- Page 10 Ambiane MP111 Recessed US 7. Insert the frame with reflector (5) to the Ambiane MP111 housing (6) and push and turn it clockwise until it snaps into locks (7) in the Ambiane MP111 housing (6). Important. The positions of the triangle marks (10) have to be aligned before inserting and turning the frame with reflector (5).
-
Page 11: Dmx And Dali Address Setting And Control
Ambiane MP111 Recessed US 3.1. DMX and DALI address setting and control The DIP switch on the control PCB (RB3729) allows you to set DMX address and run a test light. DIP 10 - if it is switched to ON=test light (the fixture lights at 3200K (for RGBW and TW version)) DIP 11 - has to be switched to OFF position to receive DMX 512 and DALI, position ON=0-10V control Note: If DIP 11=OFF (fixture is controlled by DMX and DALI), the last coming command switches the fixture to the corresponding operation mode (DMX operation by a DMX command, DALI operation by a DALI command). -
Page 12: 0-10V Control
Ambiane MP111 Recessed US DALI control Addressing of the fixture has to be made by means of an external DALI controller. If you need to start the permanent DALI control of the fixture (fixture will not respond to DMX commands), the external DALI controller has to send activating command (8=ON). -
Page 13: Rdm
RDM allows you to set a DMX address, select DMX mode, readout software version of the fixture etc. It is also used for fixture software update by means of the Robe Uploader. RDM model ID for the Ambiane MP111 Recessed is 0x0140. -
Page 14: Example Of Control Panel In Rdm Manager
Ambiane MP111 Recessed US Example of Control panel in RDM manager Ambiane MP RGBW Manufacturer PIDs: DMX hold [00]- last received DMX values are held in case of DMX signal lost. DMX hold [01]- option “DMX lost“ is activated and influences behaviour of the fixture at DMX signal lost. Default value is [00]. -
Page 15: Dmx Protocols
Ambiane MP111 Recessed US Power Switch [00]- the fixture uses primary power. Power Switch [01]- the fixture uses secondary power. Default value is [00]. 5. DMX protocols Variant RGBW, version 1.0 Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Function Type of Channel... - Page 16 Ambiane MP111 Recessed US Variant TW, version 1.1 Mode 1 Mode 2 Mode 3 Mode 4 Function Type of Channel Channel Channel Channel value control White colour selection 0-255 White from 2700K-->4000K proportional Warm White 0-255 Warm white LEDs saturation control ( proportional 0-->100%) Cool White...
-
Page 17: Technical Specifications
Ambiane MP111 Recessed US 6. Technical specifications Nominal input voltage: 48V DC Input voltage range: 44-50V DC Max. power consumption: Light source: High Power LED module Beam angle: 20°, 40°,60°, 80° Projected lumen maintenance: L90B10 >90.000 hrs, Ta = 25°C / 77°F °F) Colour variants: RGBW (W - 2700K or 4000K), PureWhite, Tunable White, Tungsten Colour temperature of white:... - Page 18 Ambiane MP111 Recessed US Dimensions mm [inch]...
- Page 19 Ambiane MP111 Recessed US Control unit...
- Page 20 Ambiane MP111 Recessed US Included items 1 x Ambiane MP111 Recessed US 1 x Control unit 1 x Set of cable connectors 1 x User manual Optional items Ambiane Power HP (P/N 10064073) Ambiane Power Rack US (P/N 10063873)
-
Page 21: Cleaning And Maintenance
The fixture has to be connected to power during software update. Software update by means of the Robe Uploader The ROBE Uploader is a software for automatized software update of Robe and Anolis fixtures. It can take advantage of RDM support. -
Page 22: Disposing Of The Product
The fixtures have to be connected to power. The control PC should be connected to the Internet. The Robe Uploader software and user manual is available at https://www.robe.cz/robe-uploader/ If you do the software update by means of the Robe Uploader, switching fixtures to the update mode (and from the update mode) is made automatically. -
Page 23: Changelog
Notice about Protection class III added to Safety instructions Specifications are subject to change without notice February 16, 2024 Copyright © 2023-2024 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
