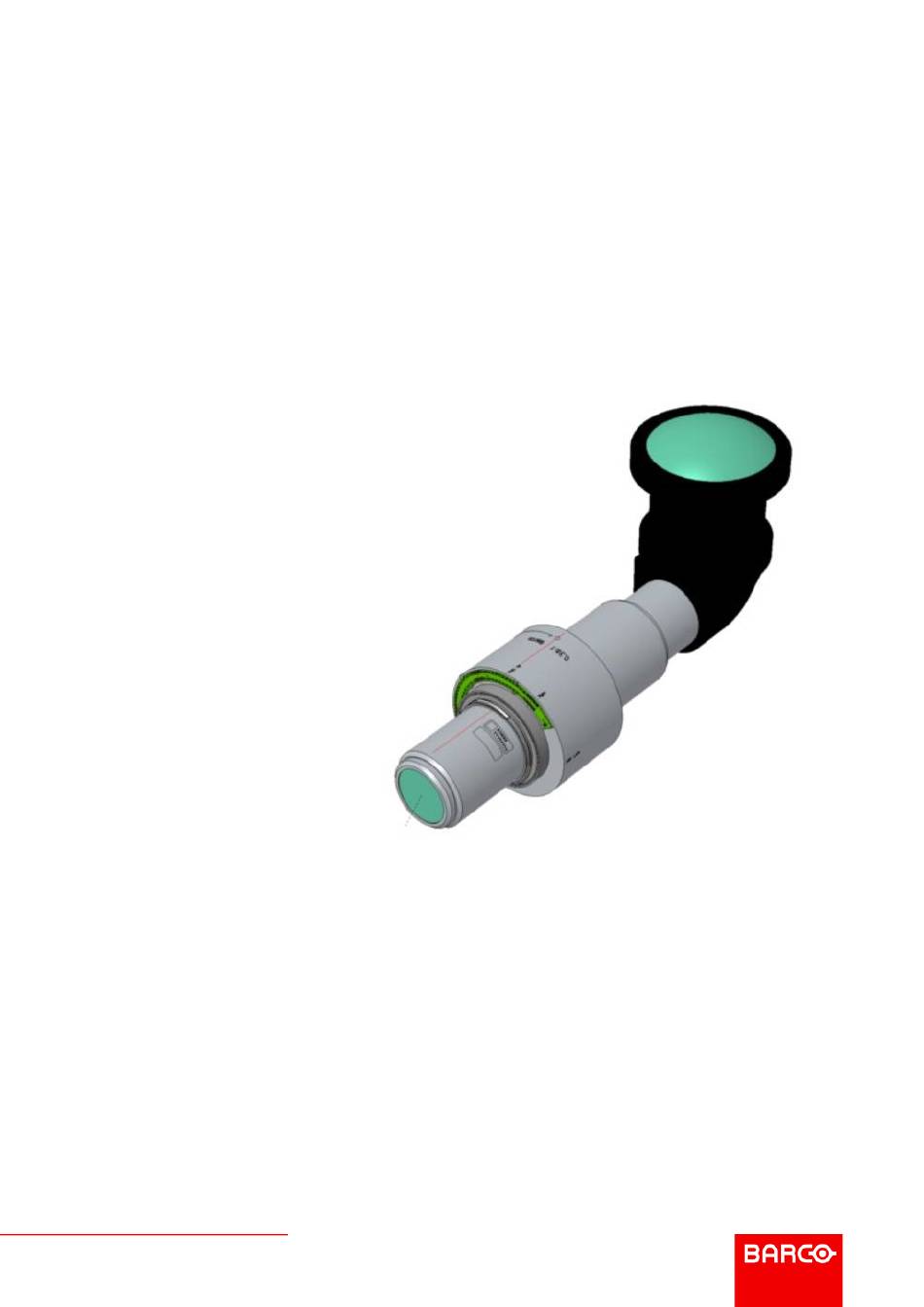

- Page 1 UST-Lens for G100 series Installation manual ENABLING BRIGHT OUTCOMES...
- Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
-
Page 3: Table Of Contents
2 Mounting the lens ..................................... 9 Adapting the lens for the projecting position........................10 Mounting the lens adapter .................................12 When mounting the lens without the support ........................13 Mounting the UST lens ................................14 Lens adjustment ....................................17 R5914435. /00 UST-Lens for G100 series... - Page 4 R5914435. /00 UST-Lens for G100 series...
-
Page 5: General
General About the UST lens.........................6 Parts indication..........................7 R5914435. /00 UST-Lens for G100 series... -
Page 6: About The Ust Lens
The motor housing must be turned to the correct position before the lens is mounted in the projector. Image 1–1 How your image is displayed Projection to the side for any projector: Image 1–2 Side view Top view Up projection for any projector: R5914435. /00 UST-Lens for G100 series... -
Page 7: Parts Indication
Image 1–4 UST-adapter cover UST-adapter hook Lens support frame kit The UST lens support kit for the G100 includes 3 mechanical parts and some screws. These parts are the following: Image 1–5 R5914435. /00 UST-Lens for G100 series... - Page 8 General Base plate Lens holder module Lens clamp module R5914435. /00 UST-Lens for G100 series...
-
Page 9: Mounting The Lens
Mounting the lens adapter ......................12 When mounting the lens without the support ...................13 Mounting the UST lens........................14 Lens adjustment ...........................17 CAUTION: When mounting the lens without the support, always use a safety cable as shown in the image. R5914435. /00 UST-Lens for G100 series... -
Page 10: Adapting The Lens For The Projecting Position
Note: Always use the correct tool (delivered with the kit) to avoid damage to the screw heads ! Image 2–1 Image 2–2 Slide the motor housing a few mm to the backside of the lens (2) to disengage focusing gear and motor gear. R5914435. /00 UST-Lens for G100 series... - Page 11 The turned out old screws can be thrown away. Use again a tool with a long shaft (Allen wrench 2 mm, delivered with the kit). The lens is ready to be mounted on the projector. R5914435. /00 UST-Lens for G100 series...
-
Page 12: Mounting The Lens Adapter
Slide the UST-adapter cover onto the lens input and over the adapter hook as illustrated. Make sure the contact points of the cover touch the contact points of the lens. Fasten the adapter cover and hook, using the 7 hex screws provided in the kit. R5914435. /00 UST-Lens for G100 series... -
Page 13: When Mounting The Lens Without The Support
When mounting the UST lens in a projector without using the mounting support (not recommended), it is strongly advised to use the safety cable set provided by Barco instead. Failing to use either the correct type of safety cable or the mounting support may damage the lens and/or projector. -
Page 14: Mounting The Ust Lens
Turn the projector back on its feet. Note: If the projector is to be mounted in the rigging frame, do this first. For more information, see the installation manual of the G100. Carefully insert the lens into the lens holder. R5914435. /00 UST-Lens for G100 series... - Page 15 Drive in the screws partially, but do not fasten yet! It must be possible to move the plate a little bit while mounting the other plates. Image 2–12 Mount the lens clamp module onto the lens holder module, using screws and washers.. Image 2–13 R5914435. /00 UST-Lens for G100 series...
- Page 16 Use a 3 mm Allen wrench to release the 3 screws holding the parts together Image 2–15 In the case the lens points to the left side of the projector, you can also secure the lens and adapter plate with 3 hex screws. R5914435. /00 UST-Lens for G100 series...
-
Page 17: Lens Adjustment
Screw for vertical shifting Focus adjustment screw How to adjust the lens Shift the lens to the desired position as much as possible using the lens holder and software. Adjust with hand if necessary. R5914435. /00 UST-Lens for G100 series... - Page 18 Use the focus ring at the end of the lens to help focus the image. • If necessary, loosen screws 2 and 3 a bit to push the lens a bit upward or downward to spot any variation in image quality. R5914435. /00 UST-Lens for G100 series...
- Page 19 Once shift, tilt and focus is all as desired, tighten adjustment screws 1 – 4. Have a final check, using the focus feature and the focus ring of the lens. Repeat all previous steps if the end result is not as desired. R5914435. /00 UST-Lens for G100 series...
- Page 20 Mounting the lens R5914435. /00 UST-Lens for G100 series...
- Page 22 R5914435. /00 | 2021-04-07 www.barco.com...
