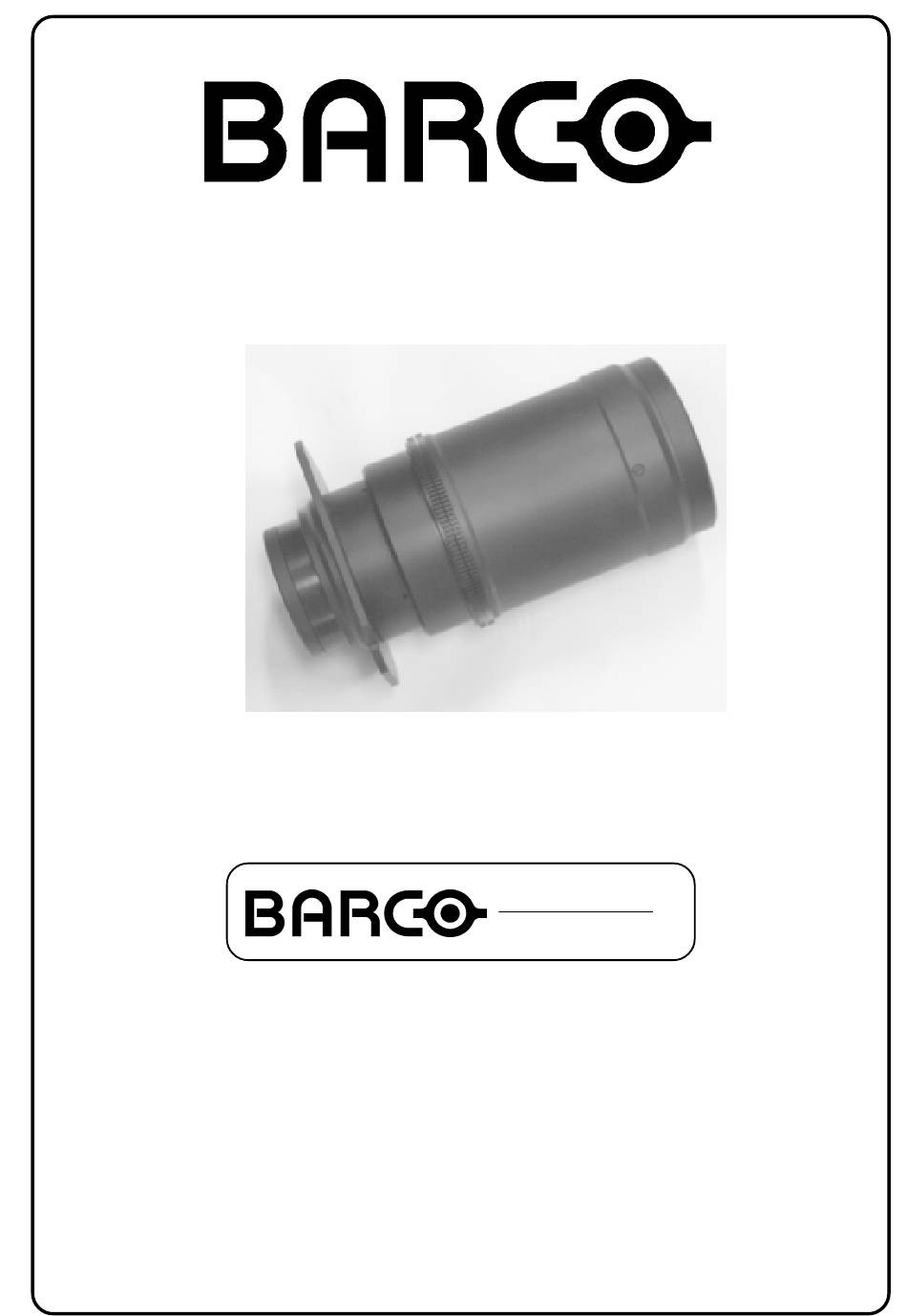

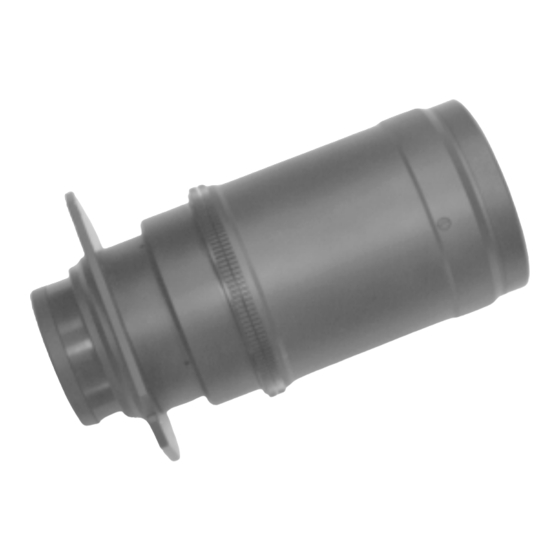

- Page 1 BARCO PROJECTION SYSTEMS QGD(2-2.8:1) R9829790 INSTALLATION MANUAL LENS QGD(2-2.8:1) FOR 6000 SERIES Date : Rev : Art. No. : 060799 R5975749...
- Page 2 Produced by BARCO NV, July 1999. All rights reserved. Trademarks are the rights of their respective owners. BARCO n.v./Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...
- Page 3 If not, turn the lens a little. While pushing down, tighten wing bolts (B) firmly to ensure good functioning of safety latches and motorization. Re-install the lens cover. Lens QGD(2-2.8:1) Image 1 Image 2 To be continued on next page. BARCO ——————————————————— 1 ————————————— Projection Systems...
- Page 4 Do not use fabric softener when washing the cleaning cloth or softener sheets when drying the cloth. Do not use liquid cleaners on the cloth as doing so will contaminate the cloth. Order number for a new Toraysee cloth : R379058. Toraysee Cloth Order Number BARCO ——————————————————— 2 ————————————— Projection Systems...
