RFID cam locks operate with an RFID Card. In assigned use functionality, an RFID Card is assigned to operate the lock. To unlock,
the user presents the assigned RFID Card then rotates the knob/lever to the unlocked position. To lock, the user closes the door then
rotates the knob/lever to the locked position. Management staff operates the lock with either the Programming Key unique to the lock
system or any registered Manager Bypass Key.
Lock Parts
Front Unit
Key Slot
Unlocked Position
Locked Position
DCR1-APV1 with Knob
Rear Unit
Rear Cover
Keys
Programming Key
■
Registers Manager Bypass Keys
■
Provides lock access in case of forgotten/lost user
credential (card or key)
■
Allows management audit/inspection
1 Programming Key required per lock system
■
Key Insertion
Vertical Body
Digilock logo must face up on vertical body locks.
Product Guide
RFID Cam Locks Advanced Security
LED Usage Indicator
Reader
Key Symbol Button
Knob
Vertical Body
Rear Cover Screw
Cam
Manager Bypass Key
Assigns RFID Card and User Key
■
Provides lock access in case of forgotten/lost
■
user credential (card or key)
■
Allows management audit/inspection
■
Provides external power in case of battery failure
Up to 25 Manager Bypass Keys may be registered
■
per lock
Assigned Use
DCR1-APV1
Key Slot
Unlocked Position
Locked Position
Vertical Body

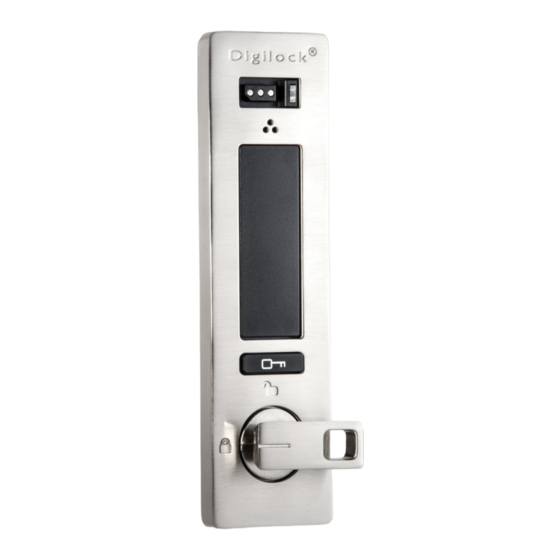

DCR1-APV1 with Lever
LED Usage Indicator
Reader
Key Symbol Button
Lever
RFID Card
User Key
Operates the lock instead of
■
RFID Card
■
ADA compliant*
*US Access Board requires 5% of all
locks to be ADA compliant.
Phone: 707 766 6000
www.digilock.com | sales@digilock.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digilock DCR1-APV1
Summary of Contents for Digilock DCR1-APV1
- Page 1 Provides external power in case of battery failure ■ locks to be ADA compliant. Up to 25 Manager Bypass Keys may be registered ■ per lock Key Insertion Vertical Body Digilock logo must face up on vertical body locks. Phone: 707 766 6000 www.digilock.com | sales@digilock.com...
- Page 2 *The Programming Key will continue to function in express registration mode until it is used to operate a lock. Register/Add Manager Bypass Key(s) Up to 25 Manager Bypass Keys may be registered to a lock. If required, contact your Digilock Product Representative to order additional Manager Bypass Key(s).
- Page 3 To lock: Close the door, then turn the knob/lever to the locked position. ▪ *The lock will remain in the locked position if the knob/lever is not turned within approximately 6 seconds. Phone: 707 766 6000 www.digilock.com | sales@digilock.com...
- Page 4 Manager Bypass Key to the lock. For immediate access, operate with another registered Manager Bypass Key or with the Programming Key. Does not Operate with the Programming Key The lock does not recognize the Programming Key. Contact Digilock Support for assistance. No Audible Feedback when is Pressed The batteries may need to be replaced.
