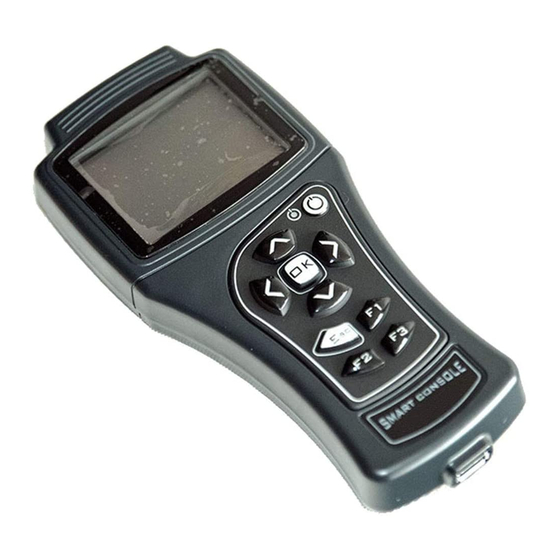

ZAPI SMART CONSOLE
Introduction for WPT45

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMART CONSOLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zapi SMART CONSOLE

Summary of Contents for Zapi SMART CONSOLE

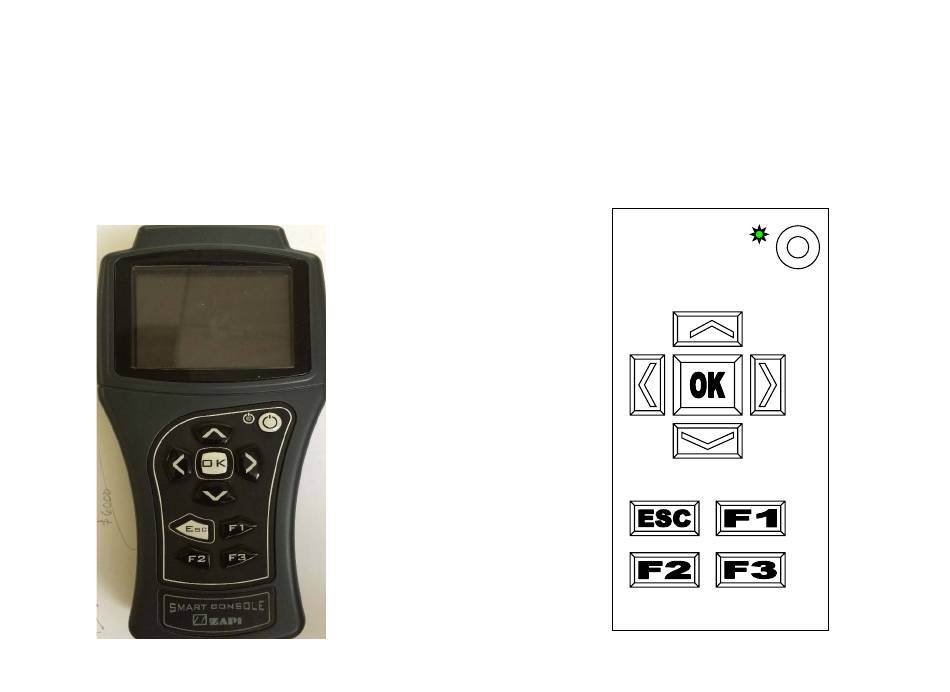

  • Page 1 ZAPI SMART CONSOLE Introduction for WPT45...
  • Page 2 Location of Controller Socket...
  • Page 3 Traction VACC Key on the truck, connect the flash Cons AFG ZP021* connecting line. The Display will show: Press button until RS232 CONSOLE shows on the display Cons AFG ZP021* The Display will show : RS232 CONSOLE Press OK to go into the Traction Menu ACOT2SE4 CI2.33 The Display will show:...
  • Page 4 Press OK to go into the Main Menu The Display will show: Main Menu Press button until PROGRAM VACC shows on the display MAIN MENU The Display will show: PROGRAM VACC Press OK to go into the PROGRAM VACC function The Display will show the minimum and VACC SETTING maximum throttle voltage values.
  • Page 5 Press OK to clear these values. Display will show 0.0 The display will show: FORWARD x.xV x.xV BACKWARD x.xV x.xV Slowly depress the accelerator forward to its maximum value. The new minimum and maximum voltages will be displayed on the Console plus an arrow indicating the direction.
  • Page 6 The Display will ask : APPLY APPLY CHANGES? CHANGES ? YES= OK NO=ESC Press OK for yes When finished, the Console shows : Main Menu Press and hold power button for 3s to turn off the Console...
