4 Cable and Wiring

4.1 Electrical safety

To avoid electrical hazards please note the following:
• Do not access the inside of any electrical equipment. Refer servicing to
Void-approved service agents.

4.2 Cable considerations for fixed installations

We recommend specifying installation-grade Low Smoke Zero Halogen (LSZH) cables
for permanent installations. The cables should use Oxygen Free Copper (OFC) of grade
C11000 or above. Cables for permanent installations should be compliant with the
following standards:
• IEC 60332.1 Fire retardancy of a single cable
• IEC 60332.3C Fire retardancy of bunched cables
• IEC 60754.1 Amount of Halogen Gas Emissions
• IEC 60754.2 Degree of acidity of released gases
• IEC 61034.2 Measurement of smoke density.
We suggest using the following maximum copper cable lengths to keep level losses below 0.6 dB.
Imperial AWG 16 Ω load
Metric mm 2
2.50 mm 2 13 AWG
4.00 mm 2 11 AWG

4.3 Phoenix connector polarity

Figure 4.1 shows the rear panel of a Cyclone Series loudspeaker with the polarity of the
Phoenix connector labelled. When viewed from the rear the connectors are negative,
positive, negative, positive, from left to right.
UG10567-1.0 - Cyclone 4 User Guide V1.0
8 Ω load
76 m 36 m
120 m 60 m
- + - +

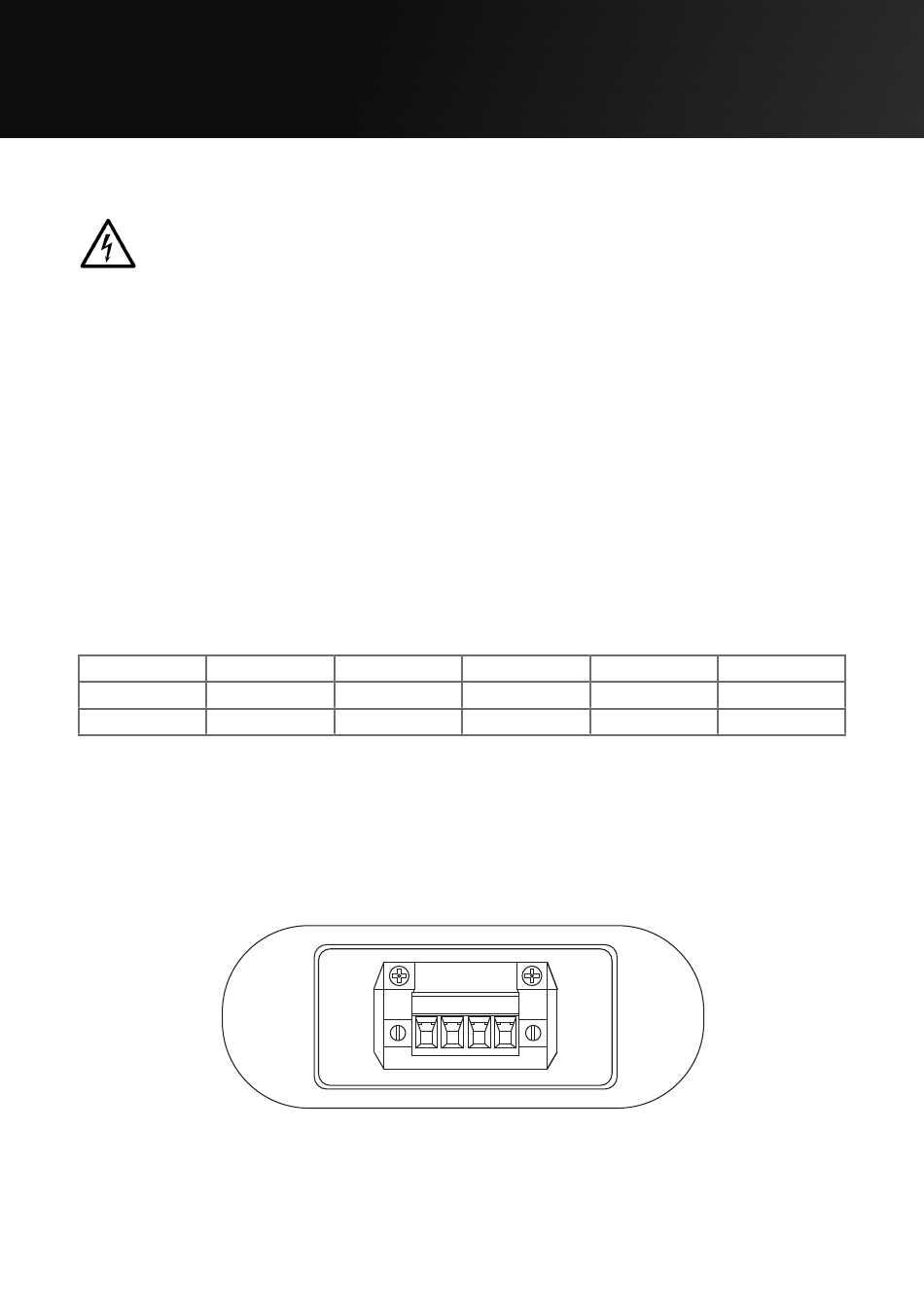

Figure 4.1: Phoenix connector diagram
4 Ω load 2 Ω load
18 m 9 m
30 m 15 m
