Assembly Instructions & User's Manual
for
GREYSON COLLECTION

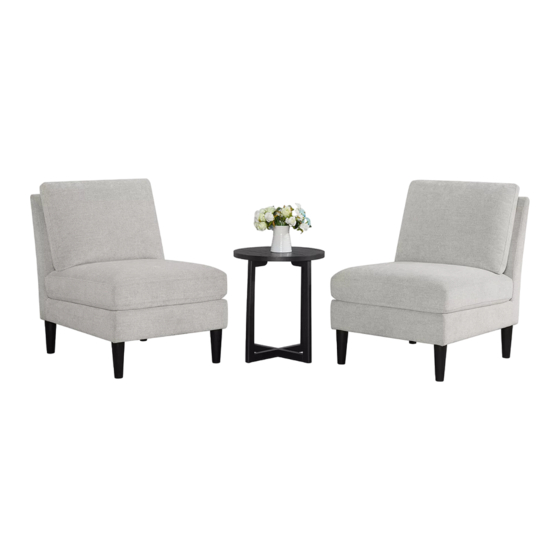

3-piece chair with accent table set
Item Number: 990286387
Model Number: 2821-8562F-48&58
Customer Assistance
:
1-800-318-9669
(spare/replacement parts)
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Member's Mark GREYSON 2821-8562F-58
Summary of Contents for Member's Mark GREYSON 2821-8562F-58

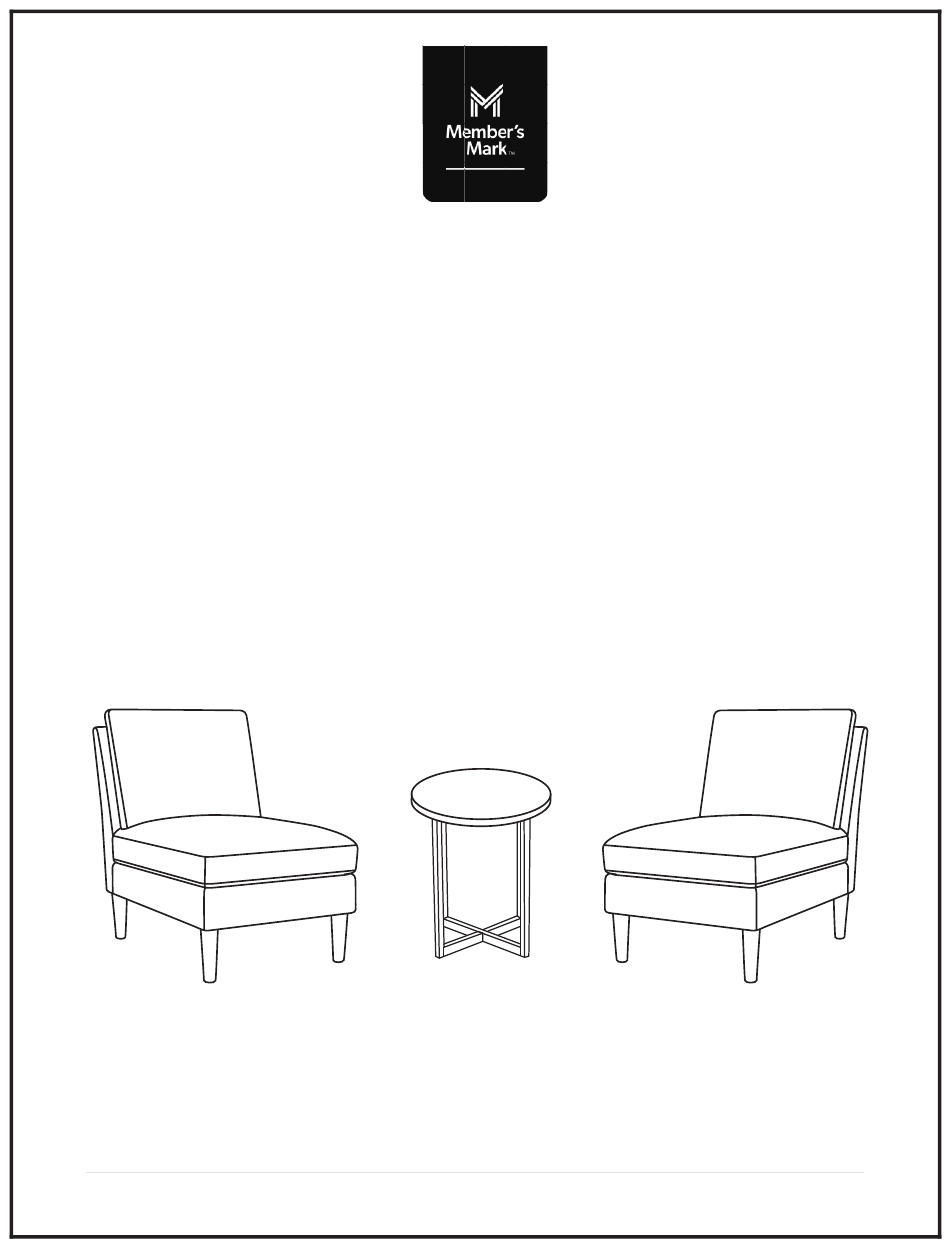

- Page 1 Assembly Instructions & User’s Manual GREYSON COLLECTION 3-piece chair with accent table set Item Number: 990286387 Model Number: 2821-8562F-48&58 Customer Assistance 1-800-318-9669 (spare/replacement parts) THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
-
Page 2: Table Of Contents
Table of Contents Quality Statement ..........................3 Important Safety Information ......................3 Before Assembly ..........................3 Care & Use ............................3 Package Contents ..........................4 Product Information ........................... 5 Components ............................5 Hardware .............................. 5 Tools ..............................5 Step 1 – Step 6 ..........................6-11 Warning .......................... -
Page 3: Quality Statement
Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Package Contents
Package Contents Component Description Quantity Chairs Legs Table top Table leg Table leg Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 5: Product Information
Product Information 2821-8562F-48 Dimensions: 26.5” x 35” x 35.75” (67.4cm x 88.9cm x 90.8cm) 2821-8562F-58 Dimensions: 18.5” x 18.5” x 22” (47cm x 47cm x 55.9cm) Chair Weight Capacity: Supports up to 300 lbs. (136 kg.) Components Chairs Legs Table top Qty: 2 Qty: 8 Qty: 1... -
Page 6: Step 1 - Step 6
Step 1 Remove all parts from the carton and separate them into part number groups as indicated in the parts list. Open the velcro on the bottom of the chair (A), then take out the legs (B) and hardware bag out of the box. The other chair does the same. - Page 7 Step 2 Attach legs (B) to the four corners of the chair (A) using 5/16”x 2³⁄4” L bolts with washers for chair (H) by allen key (I) as shown. The other chair does the same. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 8 Step 3 Stick the velcro on the bottom of the chair. The other chair does the same. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 9 Step 4 bottom Attach table leg (E) to the bottom of the table top (C) using 1/4” x2” L bolts with washers for table (G) by allen key (I) as shown. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 10 Step 5 I： bottom II： Attach table leg (D) to the table top (C) using 1/4” x 2” L bolts with washer (G) and 1/4” x1¹⁄8” L bolts with washers (F) to table leg (E), tighten with allen key (I). Need Assistance? Visit us at: samsclub.com/membersmarkhelp 10 | P a g e...
- Page 11 Step 6 Example of completely assembled product. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 11 | P a g e...
-
Page 12: Warning
Warning Please make sure all screws are tightened securely, otherwise it may affect the use of the chair. Danger Don't drag the chair on the floor. Troubleshooting Problem Possible Cause Prevention / Solution Tilting / Leaning Surface not level Put the chair and table on a level surface Shaking Screw is not tightened... - Page 13 NOTE: Please consider recycling all applicable packaging material. Distributed by Sam’s West Inc. 2101 SE Simple Savings Dr. Bentonville, Arkansas 72716-0745 Made in Vietnam Need Assistance? Visit us at: samsclub.com/membersmarkhelp 13 | P a g e...
