Transport, Installation and Connection
4.8.4
Laying the special cable KW6 for Ex-proof
housings

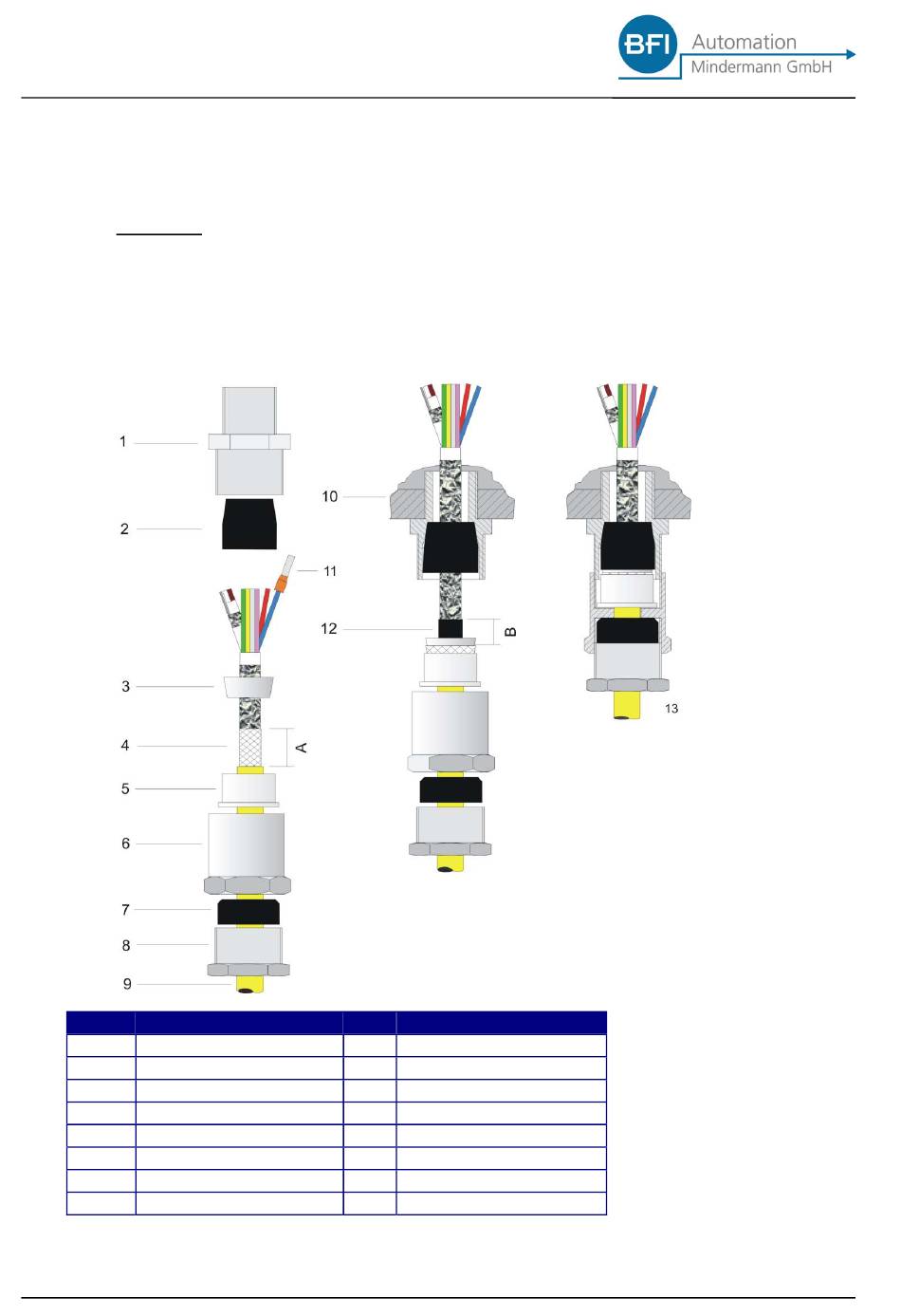

The outer braided shield shall be clamped
between clamp collar I & II on the scanner side.
Assembly:
First the cable and the clamp collars must be
fixed with screwed cap I.
On the second stage the PUR sheath must
be tightend with screwed cap II.
The inner screening shall be cut of on the scanner
side and connected to ground at the flame controler.
No.
Item
1
Screwed coupler
2
Rubber casket 1
3
Clamp collar 1
4
Outer braided shield
5
Clamp collar 2
6
Screwed cap 1
7
Rubber casket 2
4-14
No.
Item
8
Screwed cap 2
9
PUR cable sheath
10
Ex de IIC housing
11
wire end ferrule
12
heat-shrinkable tubing
13
cable gland
A
15 mm (0.59 inch)
B
10 mm (0.39 inch)
