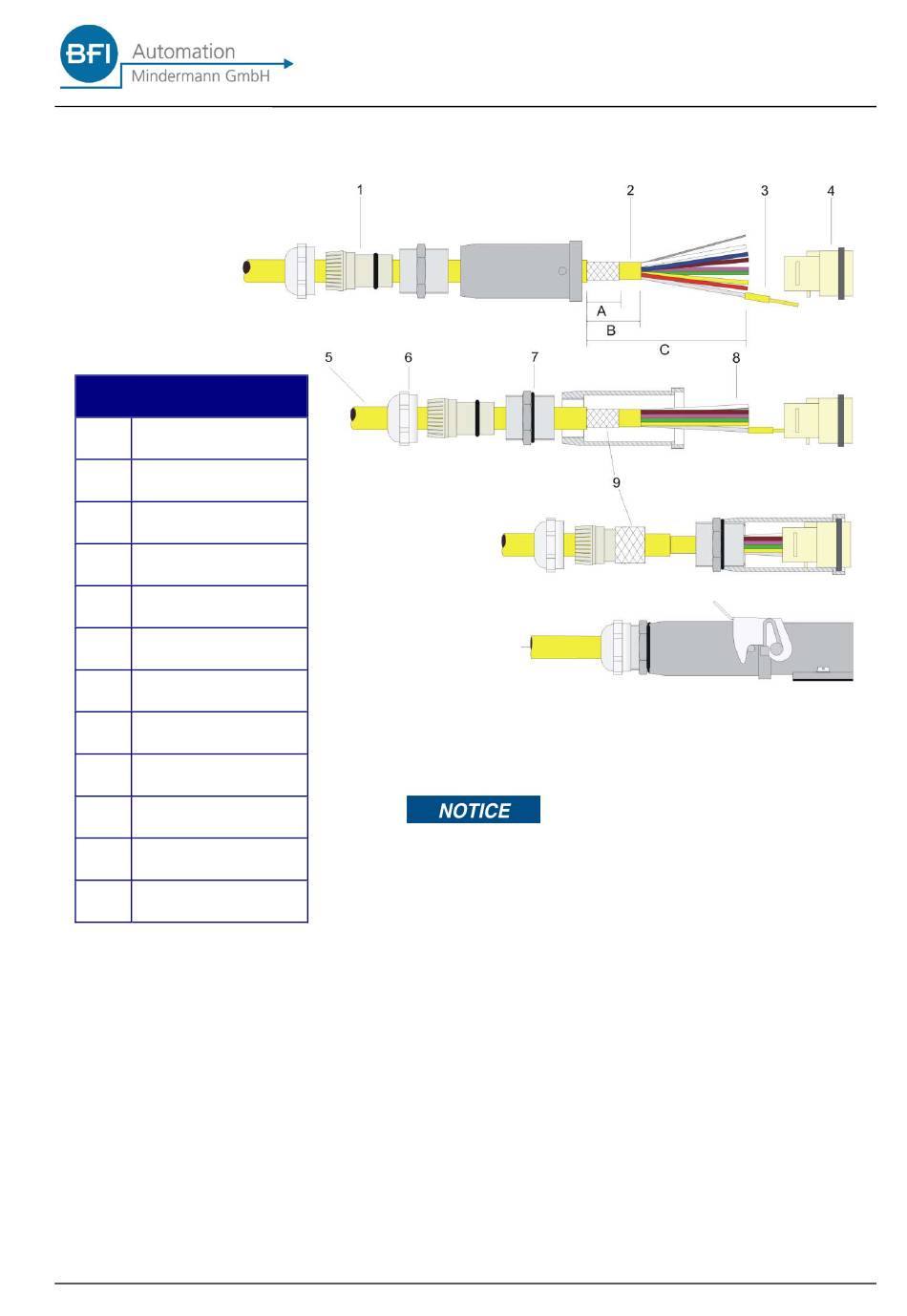

Item
1
Plastic insert
2
Inner PUR jacket
3
Crimp contact
4
Contact insert
5
Outer PUR jacket
6
Union nut
7
Thread
8
Single core
9
Outer shielding
A
15 mm (0.59 inch)
B
20 mm (0.78 inch)
C
55 mm (2.16 inch)
Transport, Installation and Connection
4.8.3
Laying the special cable KW6 for standard
housing
No contact chamber may remain bare !
All contact chambers in the contact insert have to be fitted
with crimp contacts !
For this purpose use a suitable crimp tool (BFI part No.
8980-4801-00) !
On the flame scanner side the external shielding is con-
nected to the housing mass by means of a clamp connec-
tion located between the plastic insert the threaded part in
the cable gland. On the other side the outer shielding is
cut off. The internal shielding is cut on both sides.
