Transport, Installation and Connection

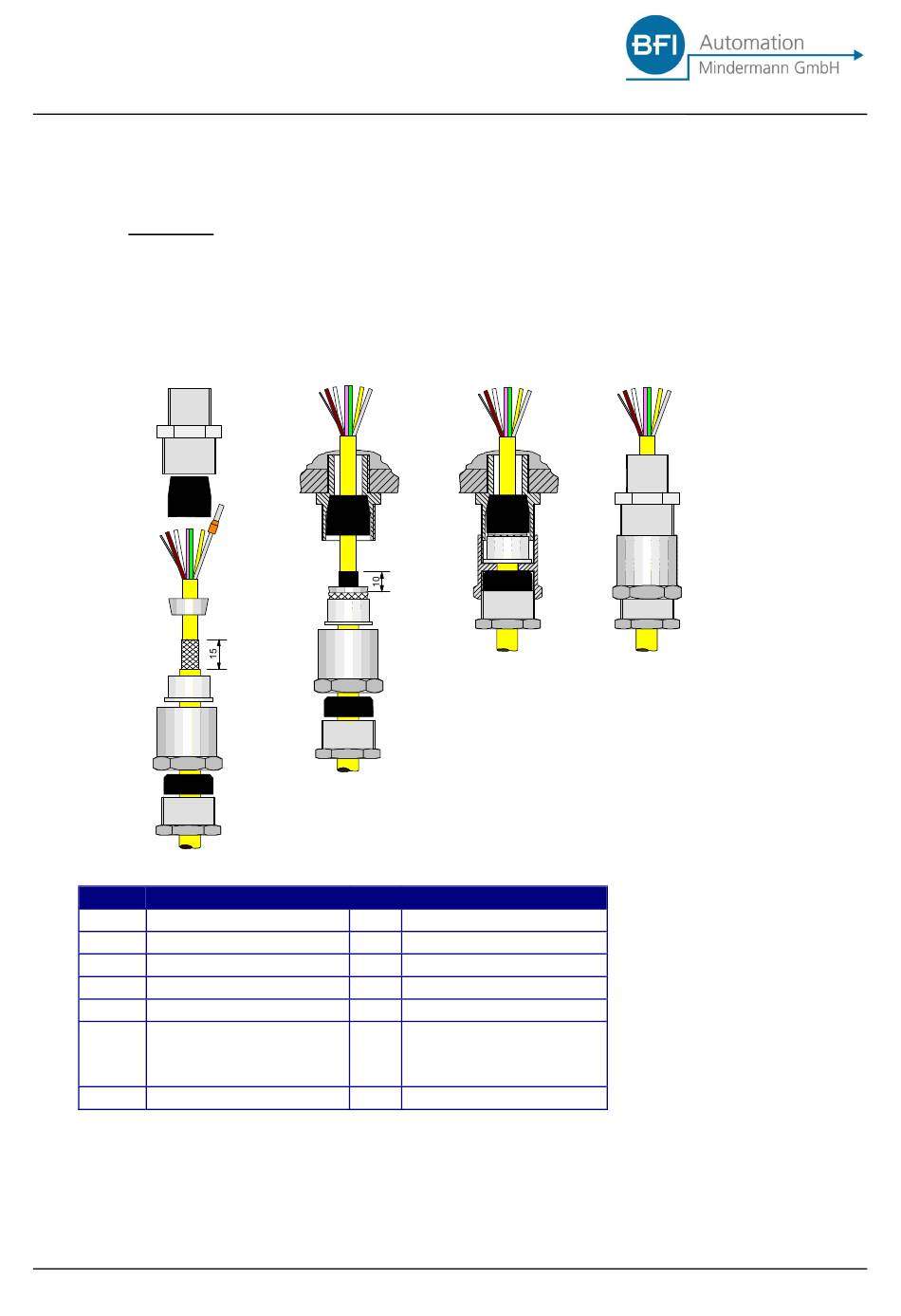

4.8.4 Laying the special cable KW6 for Ex-proof
housings
The outer braided shield shall be clamped
between clamp collar I & II on the scanner side.
Assembly:
First the cable and the clamp collars must be
fixed with screwed cap I.
On the second stage the PUR sheath must
be tightend with screwed cap II.
The inner screening shall be cut of on the scanner
side and connected to ground at the flame controler.
1
2
3
4
5
6
7
8
9
No. Item
1 Screwed coupler
2 Rubber casket 1
3 Clamp collar 1
4 Outer braided shield
5 Clamp collar 2
6 Screwed cap 1
7 Rubber casket 2
4-14
10
11
12
No.
8
9
10
11
12
13
Item
Screwed cap 2
PUR cable sheath
Ex de IIC housing
wire end ferrule
heat-shrinkable tubing
cable gland
Reg.-No.: Ex-dIIC
ISSEP 96D.103.1226
13
