Transport, Installation and Connection
The use of a ball flange ( optional, Part No.: 6590-9020-01 )
allows adjustments to be carried out easily in order to me-
chanically obtain the optimum observation point. If tem-
peratures of over 180 °C (356 °F) occur at the sensor
head SKL caused by the heat dissipation of the sighting
tube despite the inflow of cooling air, a heat insulator (op-
tional, Part No.: 1598-0141-00) must be employed. At
pressurised firing installations, an additional 3-port shut-
off device (optional, Part No.: 1594-8831-00) should be in-
stalled for the sake of safety. This prevents an escape of
hot gases after the removal of the compact flame control-
ler and provides additional cooling and purging of the in-
stallation.

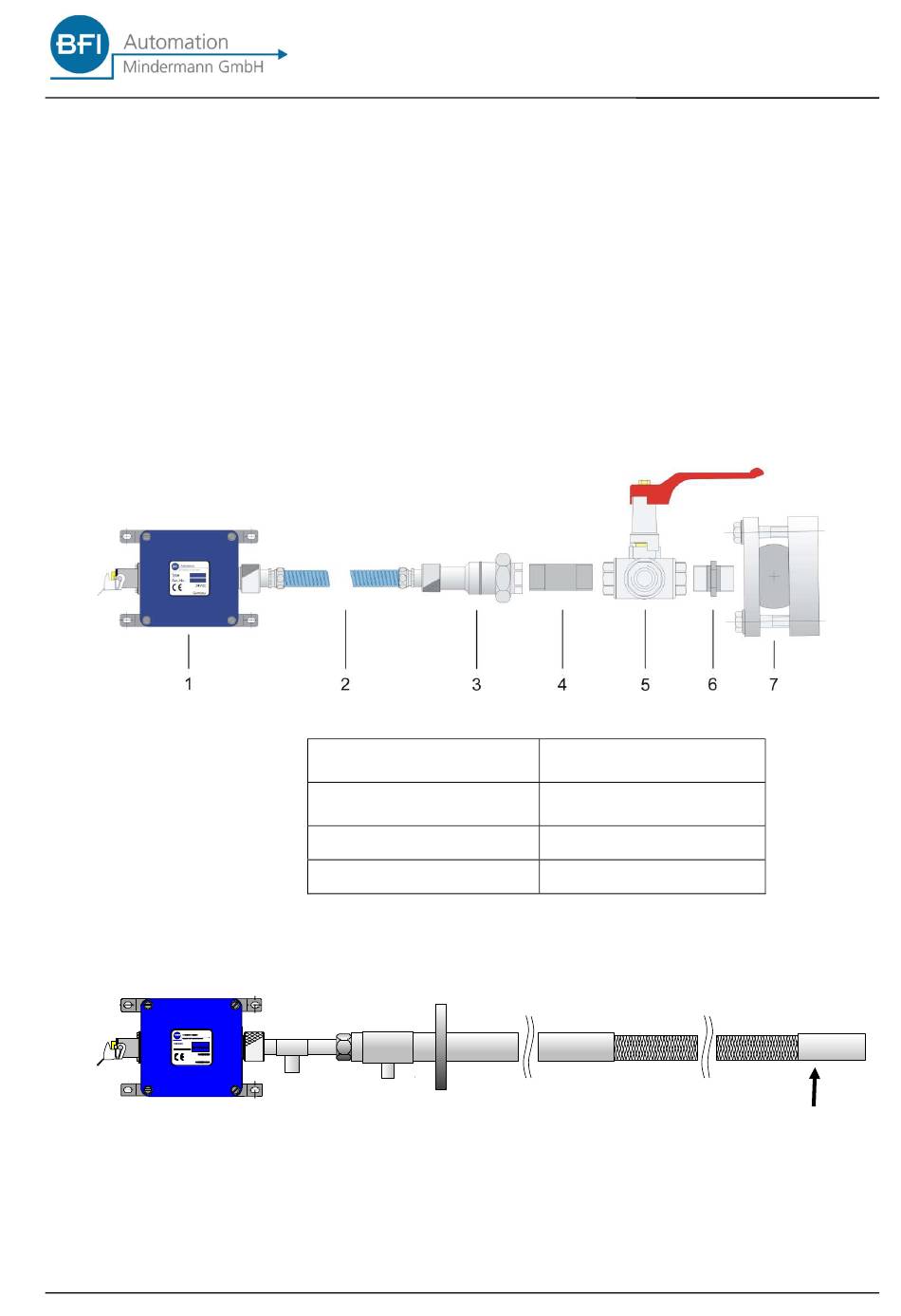

The entire mechanical peripheral system can be supplied
by BFI Automation.
1
OE-Converter
2
Fibre optic cable
3
SKL
4
Heating insulator
Alternative lance solution for tiltable burner
5 3-Way valve
6 Double nipple
7 Swivel mount
8 Fibre optic lance
8
4-7
