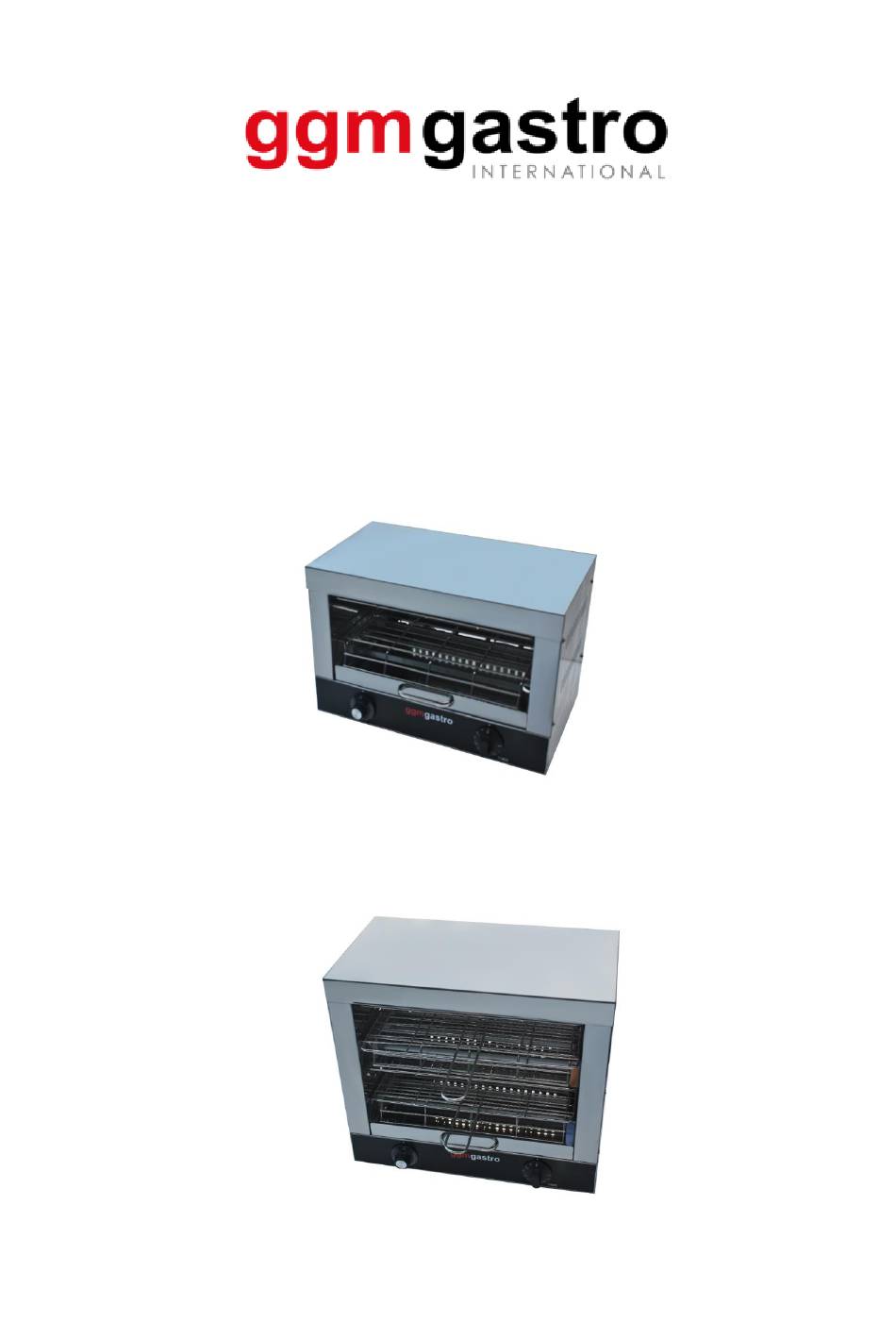

- Page 1 Electric salamander User manual SMJ30 SMJ30D...
- Page 2 Thanks for your purchasing and using Electric salamander. For making full use of function of this product and reducing unnecessary damage and injure. Please read this manual carefully before using this machine and keep it well for future reference. Warning ! Any refitting and wrong installation, adjustment and maintenance can lead to property loss and causality.
- Page 3 1.1 Conveyor toaster technical data sheet： Name Model Voltage Power Temperature Temperature Product outer controller range Dimension: weight number 220 ～ Electric SMJ30 2.4KW 440*300*290 9.8KG 50～300 ℃ salamander 240V 220 ～ Electric SMJ30D 3.6KW 50～300 ℃ 440*300*405 12.5KG...
- Page 4 During transportation, this product should be handled with care to prevent severe vibration. The packaged product should generally be placed in a well-ventilated place to avoid long-term open storage. It should be stored in a warehouse without corrosive gas. For temporary storage, rain-proof measures should be adopted.
- Page 5 waterproof regulations. 4.10 Warning：For people who have physical, sensory or intellectual defects, or lack of experience and knowledge (including children), this manual is not applicable. 4.11"Equipotential Mark"-" "Instructions for use: scope of application: used in various equipment, indicating those terminals that make each part of the equipment or system reach the same potential after being connected to each other, which is not necessarily ground potential, such as local interconnection lines 5.
- Page 6 6. Operation method: 6.1 The is located on the front side of the machine， Used to control the machine proportioner chamber temperature. 6.2 Put through power supply , Set the timer first clockwise to the desired time period, and then adjust the proportioner knob clockwise to the desired position, the current has been supplied to the furnace, and the heating tube starts to work.
- Page 7 SMJ30 SMJ30D...
- Page 8 9. General troubleshooting methods： Fault phenomenon The reason Elimination method 1. Cable or inside wires dis-connected 1.Put through power supply， When 2. Temperature limiter 1. Connect the cable and wires the timer and power off protection 2. Temperature limiter reset are turned on, the proportioner 3.
- Page 9 10. Product exploded drawing SMJ30 Spare parts name Top/Side sealing board Connector terminal Wire Wire clip Quartz tube Cross porcelain Concave convex porcelain bead Machine shell Foot Bottom sealing board Timer Timer knob Temperature limiter proportioner proportioner knob Slag tank...
- Page 10 SMJ30D Spare parts name Top/Side sealing board Connector terminal Wire Wire clip Quartz tube Cross porcelain Concave convex porcelain bead Machine shell Foot Bottom sealing board Timer Timer knob Temperature limiter proportioner proportioner knob Slag tank Handle Grill rack Quartz tube protective frame Quartz tube protective frame...
