Summary of Contents for GGMgastro SMRM10

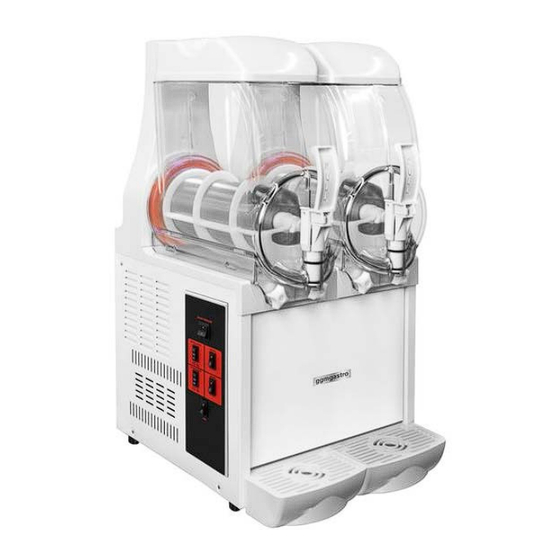

- Page 1 USER MANUAL FOR COMMERCIAL SLUSH-MACHINES MODEL: SMRM10-SMRM20-SMRM30...
- Page 2 1. PRESENTATION Dear user; Thank you for choosing our product and for trusting us. Our product is manufactured according to the standard rules. We would like to remind you that you should read the instruction manual carefully to get the best performance you expect from the product and to use it for a long time.
-
Page 3: Safety Information
4. SAFETY INFORMATION • - The appliance works with 220 Volt ~ 50 Hz electricity. - If the power cable is damaged, please contact customer service. - The appliance should be switched off before it is connected to the mains. - All flammable solid and liquid materials (fabrics, alcohol types, petrochemical materials, wood materials, plastic materials and curtains) should be removed from the area where the appliance is operated. - Page 4 5. USE OF THE DEVICE 5.1. FIRST USE: • - Unpack the appliance from the box and check whether it is damaged or not. Do not operate it if it is damaged. - If present, remove the protective tapes. - Clean the parts of the appliance that come into direct contact with food thoroughly and carefully.
-
Page 5: Lifting And Moving
5.3. CLEANING: • - Disconnect the plug from the socket before cleaning. - The food container, the tap and the cover should be cleaned very well after each use. You can use cleaning agents if necessary. - The heating element (air circulation) should be cleaned at least once a month. Failure to do so will damage the appliance and invalidate the warranty. -
Page 6: Maintenance
6. CLEANING AND MAINTENANCE 6.1 CLEANING: • - Clean the outer surface with a sponge using dishwashing liquid and dry it after each use. - Do not use nitric acid or other CHEMICAL MATERIALS to clean the appliance. 6.2. MAINTENANCE: •... -
Page 7: Errors And Solutions
6.5. ERRORS AND SOLUTIONS CAUSE SOLUTION PROBLEM The main switch is set to (0). Switch the main switch to (1). Device does not work. Plug in the device. It is not plugged into the socket. The tap seal is not fitted The tap drips. - Page 8 7. TECHNICAL FEATURES AND THE LABELS PRODUCT WEIGHT POWER CODE LITRE DIMENSIONS SMRM20 670 W 63 kg 455*550*830mm SMRM30 950 W 675*550*830mm 80 kg Electrical Slush Machine PRODUCT CODE: SMRM20 Slush-Machine - 2 x 10 Litre MODEL: Voltage............: 220 - 230 V 50-60 Hz Rated Current......
- Page 9 8. ASSEMBLY OF THE PARTS Pull towards yourself. Remove the mixing pallet by pulling it towards you. Remove the food container from its lock by pulling it slightly upwards. Remove the food container...
- Page 10 8. ASSEMBLY OF THE PARTS Attach seal to mixer spring as shown in (A). Apply the food oil (Haynes, Lubri, Film) to the seal (A). Take out the faucet handle (#1-B in the direction of the arrow). Push the spring up (C in the direction of the arrow), take out the spring.
-
Page 11: Parts Of The Machine
9. PARTS OF THE MACHINE... - Page 12 9. PARTS OF THE MACHINE Cooler Screws Fan motor Solenoid valve clips Solenoid valve coil double Propeller 250 Ø 28° Screw nut solenoid valve housing Double solenoid valve Washer Stainless Bottom right plastic corner Screw Bottom left plastic corner Washer Screw Screw Condenser 12 X2-Tropic Version...
- Page 13 9. PARTS OF THE MACHINE CODE Description Mixer spring (plastic) Illuminated cover (based on standard and quick freeze models) Non-illuminated cover (budget models) Food containers Dashboard Cover of the tapping chucks Thread cutter (stainless steel) Tap spring Tap plunger Tap seal Tap cork seal Front mixer seal Cooler seal...
