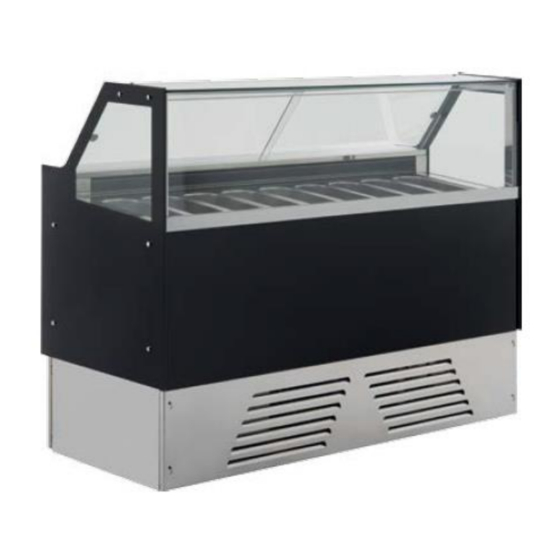

- Page 1 EITC65/EITC95 GELATO SHOWCASE USER GUIDE (OPERATION MANUAL) Manual Number: V002 – 19.02.2019...
-
Page 2: Table Of Contents
1.TABLE OF CONTENTS 1.TABLE OF CONTENTS .......................... 1 2.CONGRATULATIONS AND THANK YOU! ..................... 2 3.SYMBOLS IN MANUAL ........................2 4.CONTACT DETAILS & HELP DESK ......................4 5.ELECTRICAL CONNECTION NOTICE ..................... 5 6. WARNINGS & SAFETY ........................5 7. LIFTING AND TRANSPORTATION ....................... 7 8. -
Page 3: Congratulations And Thank You
2.CONGRATULATIONS AND THANK YOU! Congratulations and thank you for acquiring a Gelato Showcase. If you encounter a problem with machine, please contact your local service technician. Please familiarize yourself with the machine by taking some time to study this manual. If you get to know this little ice-cream factory, it has the potential of making good profit. - Page 4 ELECTRIC DANGER This symbol indicates the presence of electric shock hazards. NOTE It points out significant information for the stuff involved. PROTECTIONS This symbol means that operator must use protection against an implicit risk of accident. MACHINE OPERATOR He/She is the person who has no specific expertise and she/he will operate the freezer.
-
Page 5: Contact Details & Help Desk
4.CONTACT DETAILS & HELP DESK When calling the manufacturer have the following information ready: 1.Serial Number: Found on body panel manufacturer manufacturers address model ID number manufacturer type power supply voltage nominal frequency ... -
Page 6: Electrical Connection Notice
5.ELECTRICAL CONNECTION NOTICE 1. Please make sure that the power supply conforms to the electrical data label (Rating Plate). 2. Check the data label (Rating Plate) for the required circuit breaker amperage. Only plug into an electrical wall socket that complies with the required amperage of the machine. 3. - Page 7 Read and understand all safety messages in this manual. The information provided in this manual concerns your safety. Read and understand the safety decals on your freezer. To safeguard both the display unit and the operator, all safety equipment must be kept in good working order.
-
Page 8: Lifting And Transportation
Using non-original spare parts can cause the display unit to malfunction in a way that is hazardous for the operator and persons in the vicinity. Do not, under any circumstances, modify any part of the display unit without express authorisation in writing from the manufacturer. ... -
Page 9: Installation
Pay due attention to legally required safety measures. At work wear suitable clothing. Do not wear ties, jeweler’s chains or belts, which could get caught in the machine. Do not shift or dislocate the safety switches or protective parts. Make sure that the lifting device is in good condition and that its load Capacity exceeds the weight of the appliance (refer to the technical specifications data sheet). -
Page 10: Selection Of Installation Place
The following must be observed before using the product and installing. Do not place your product in the area of direct sunlight, heat sources such as stove, heating pad, oven, cooker, radiant and infrared. Otherwise, this may cause the performance of your product to fall, become damaged or unusable. -
Page 11: Starting
Do not position your product so that it is exposed to open air. Be careful not to put cardboard, box material etc. in front of the bottom louvres so that your product can cool well. Take care to position your product away from sources of heat or heat. ... - Page 12 Green Key: It provides energy to the device. Yellow Key: The LED on the device allows the lights to be turned on. Dixell Digital Thermostat: Electronic multi-purpose thermostat that adjusts the temperature. Your product's internal temperature is set in our factory so that you can keep and protect your food stored in the appliance.
- Page 13 Electric connection Warnings for the electric connection do not use electric or pneumatic screwdrivers on the device terminal board if the device has been taken from a cold to hot place, humidity could condense inside; wait about 1 hour before powering it ...
- Page 14 the “off” status: the device is not powered; utilities are off. Hereafter, if the POF parameter is set to 0, with the word “switch-on” means the passage from “off” status to “on” status; the word “switch-off” means the passage from “on” status to “off”...
- Page 15 To exit the procedure: 5. Touch the key or do not operate for 60 s. 6. Touch the key. If the second analog input is absent (that is to say, if the P4 parameter is set to 0), the “Pb2” label shall not be displayed. Compressor operation hours To show the compressor operation hours: 1.
- Page 16 To lock the keyboard proceed as follows: 1. Make sure no procedure is in progress. 2. Do not operate for 30 s: the display will show the message “Loc” for 1 s and the keybord shall lock automatically. To unlock the keyboard: 3.
- Page 17 Manufacturer’s settings To access the procedure: 1. Make sure no procedure is in progress. key for 4 s: the display will show “PA”. 2. Touch the key. To restore the manufacturer’s settings: 3. Touch the key within 15 s to set “149”. 4.
- Page 18 USE OF LEDS Each LED function is described in the following table.
- Page 19 LOCAL ALARMS...
- Page 20 When the cause of the alarm disappears, the device restores normal operation, except for the following alarms: compressor shut down alarm (code “CSd”) which requires the switching off of the device or the temporary suspension of the power supply ...
- Page 21 ERRORS When the cause of the error disappears, the device restores normal operation.
-
Page 22: Use
10. USE Be sure to read the manual carefully before using the device. Before you start up the machine, the following must be checked by licensed and specialised technical staff: • System hooked up and earthed correctly. • System hooked up to its electrical and water supplies correctly. The machine is designed to expose the ice cream to the temperature requested by the client, which may not be lower than -18/-20°C. - Page 23 Remove the product stored in the cooling compartment of the device and place it in the housing of a special refrigerator to ensure proper storage. Disconnect the electrical connection by pulling the device's plug from the socket. Remove all equipment that can be removed manually. ( Ice cream cuvette, sleds etc.) ...
- Page 24 WARRANTY DOCUMENT AND CONDITIONS MANUFACTURER WARRANTY Invoice Date/No: Delivery Date: SEAL&SIGNATURE This warranty given by the manufacturer does not apply in the following cases: 1) The failures results from misusage of product or usage of other applications. 2) After the delivery, the failures resulted from moving, carrying of the machine. On the condition that any distortions made on warranty or on the serial number the product will be out of the warranty.
