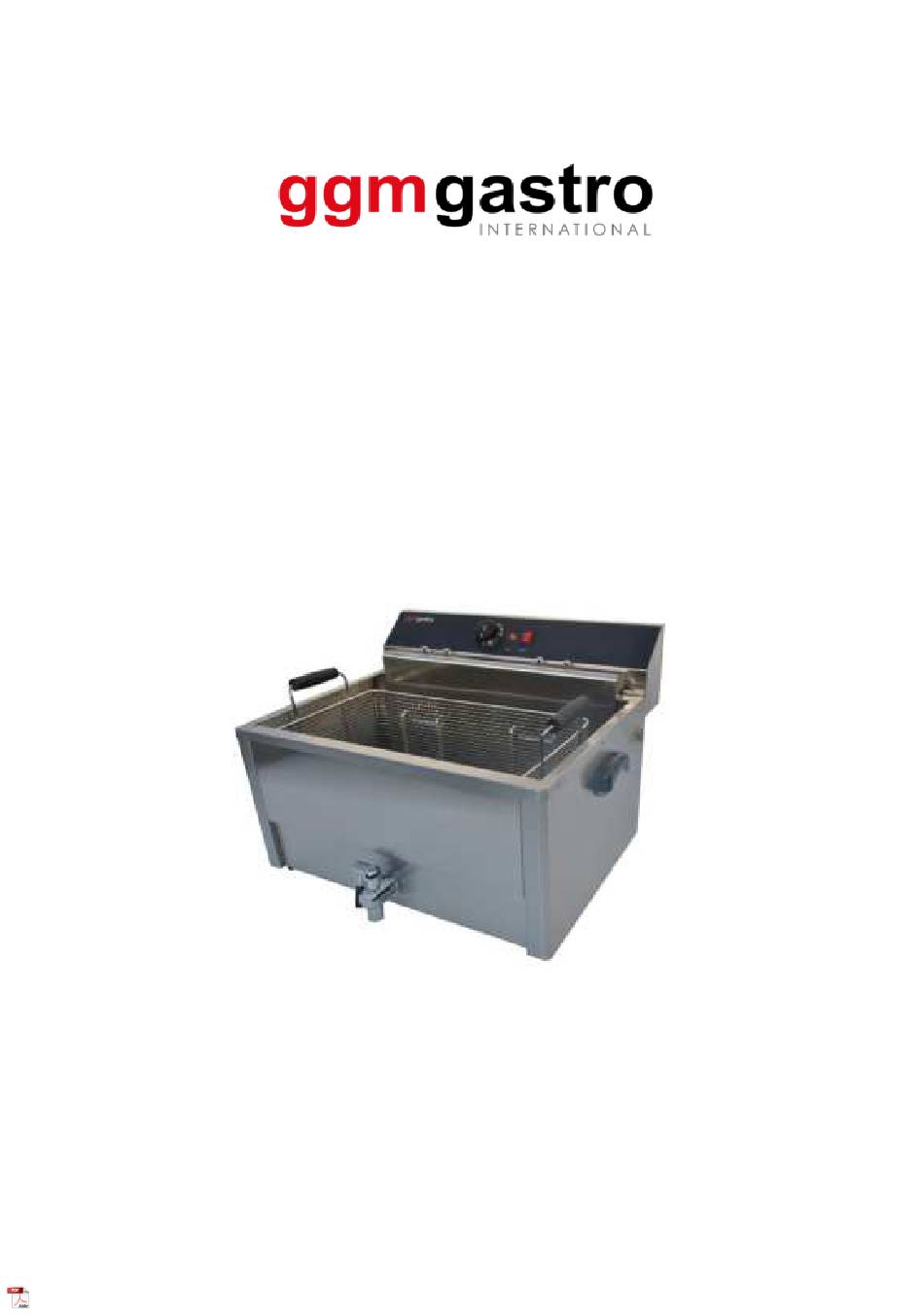

- Page 1 Fryer 30 liter User manual EFJ-30...
- Page 2 Thanks for your purchasing and using Fryer 30 liter. For making full use of function of this product and reducing unnecessary damage and injure. Please read this manual carefully before using this machine and keep it well for future reference. Warning ! Any refitting and wrong installation, adjustment and maintenance can lead to property loss and causality.
- Page 3 Temperature Temperature Product outer controller range Dimension: weight number ℃ EFJ-30 3N380V 50～200 550*470*386 10.6KG Fryer 30 ～400V liter 2. Instructions： Do not damage, excessively bend, stretch, or twist the power cord, and do not place heavy objects or clamp the power cord.
- Page 4 rain-proof measures should be adopted. Do not invert or stack the product to prevent damage to the product. 4. Installation Precautions： 4.1 The power supply and voltage used by this equipment must be consistent with the power supply voltage of the product power plate. 4.2 The user needs to install a sufficient amount of power switch or air switch or (fuse breaker and leakage protector, etc.) near the equipment, and no debris is allowed in front of the switch for easy operation.
- Page 5 experience and knowledge (including children), this manual is not applicable. 4.11"Equipotential Mark"-" "Instructions for use: scope of application: used in various equipment, indicating those terminals that make each part of the equipment or system reach the same potential after being connected to each other, which is not necessarily ground potential, such as local interconnection lines 5.
- Page 6 electric heating tube, turn on the power, and rotate the thermostat clockwise to align the required temperature value to the required temperature position, and the orange indicator light is on, The current has been supplied to the furnace, and the heating tube starts to work. When the temperature rises to the required temperature, the thermostat can automatically cut off the power, and the orange indicator light goes out, and the heating tube stops working.
- Page 7 9. General troubleshooting methods： Fault phenomenon The reason Elimination method 1. Turn on the power, power 1. Power switch is broke 1. Change new power switch light is not on 2. Wires are not connected 2. Check and make sure wires correctly are connected well 2、The orange indicator light does...
- Page 8 Spare parts name 10. Product exploded drawing AC Contactor Thermostat Light Switch Thermostat gasket Thermostat knob Micro switch Temperature limiter Electrical box sealing board Connect Terminal Wire clip Wire Handle Element Basin Surrounding board Foot Gasket Valve AC Contactor fixed piece Electrical box Element sealing...
