Code Alarm CA-630 Installation Instructions Manual page 7

1. Basic Harness (B),
Type 1 (POS) & Type 3 (NEG)
Second stage unlock
Connect the 2/B wire to the vehicle lock wire.
Connect the 13/B wire to the vehicle unlock wire.
*Select Polartiy with Fuse Location
Type 2 Reverse Polarity Door Lock Systems
Type 2 Door Lock Systems
Trunk Motor 13/B
Trunk Switch 9/A
Lock Motor 2/B
Lock Switch 1/A
Vehicle Master Switch
630.p65
cont'd

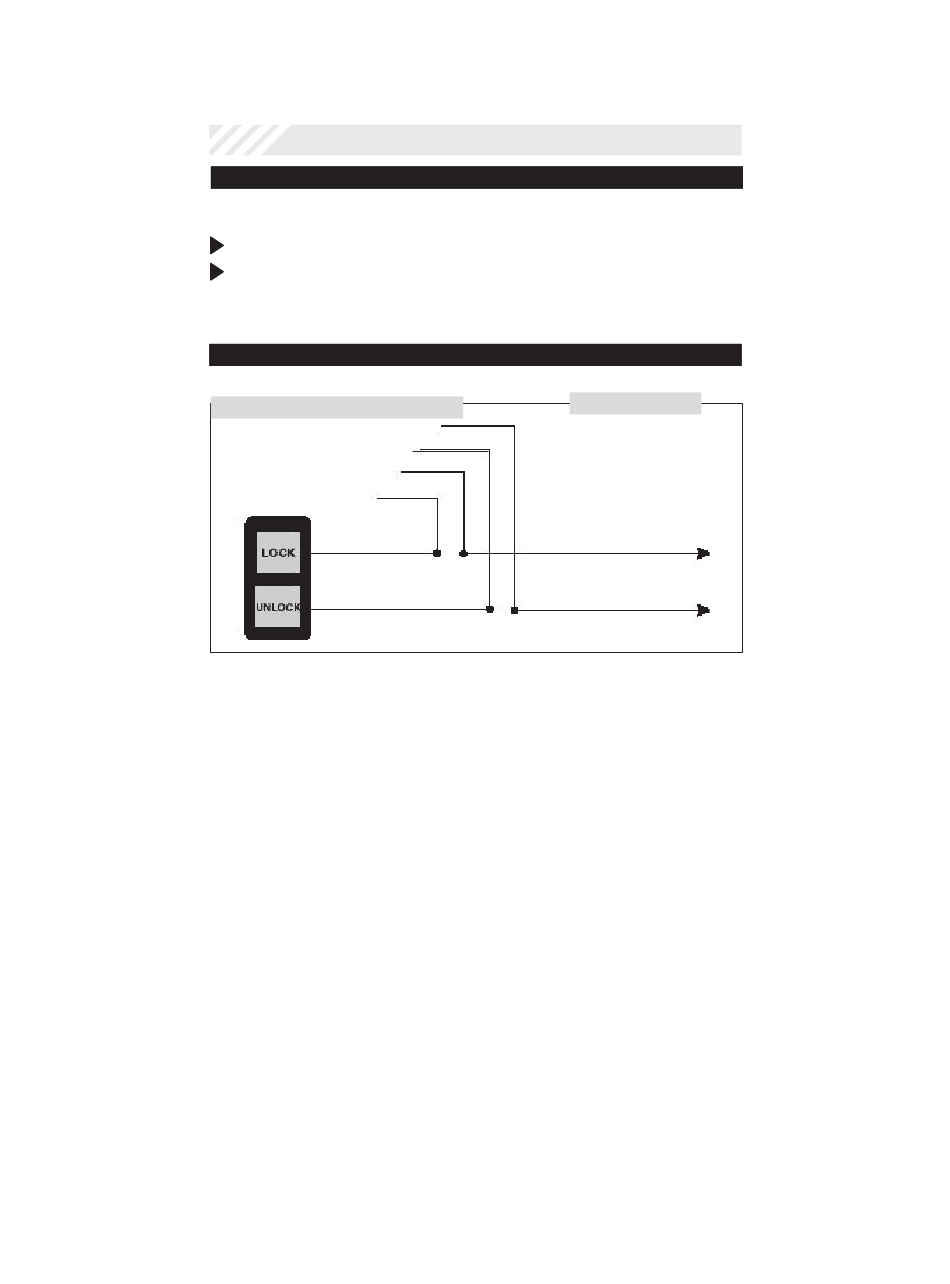

3-wire door lock system
To Door Lock Motors
7
Diagram 3
