Code Alarm CA-630 Installation Instructions Manual page 12

3. Car Start Harness (C)
3/C Ignition 2 Output (14 AWG+) (PINK/WHITE)
Note: Use the 3/C wire if the vehicle requires connection to a
second ignition circuit for the vehicle to operate properly during
remote start.
Connect this wire to the
vehicle second ignition wire at
the ignition switch.

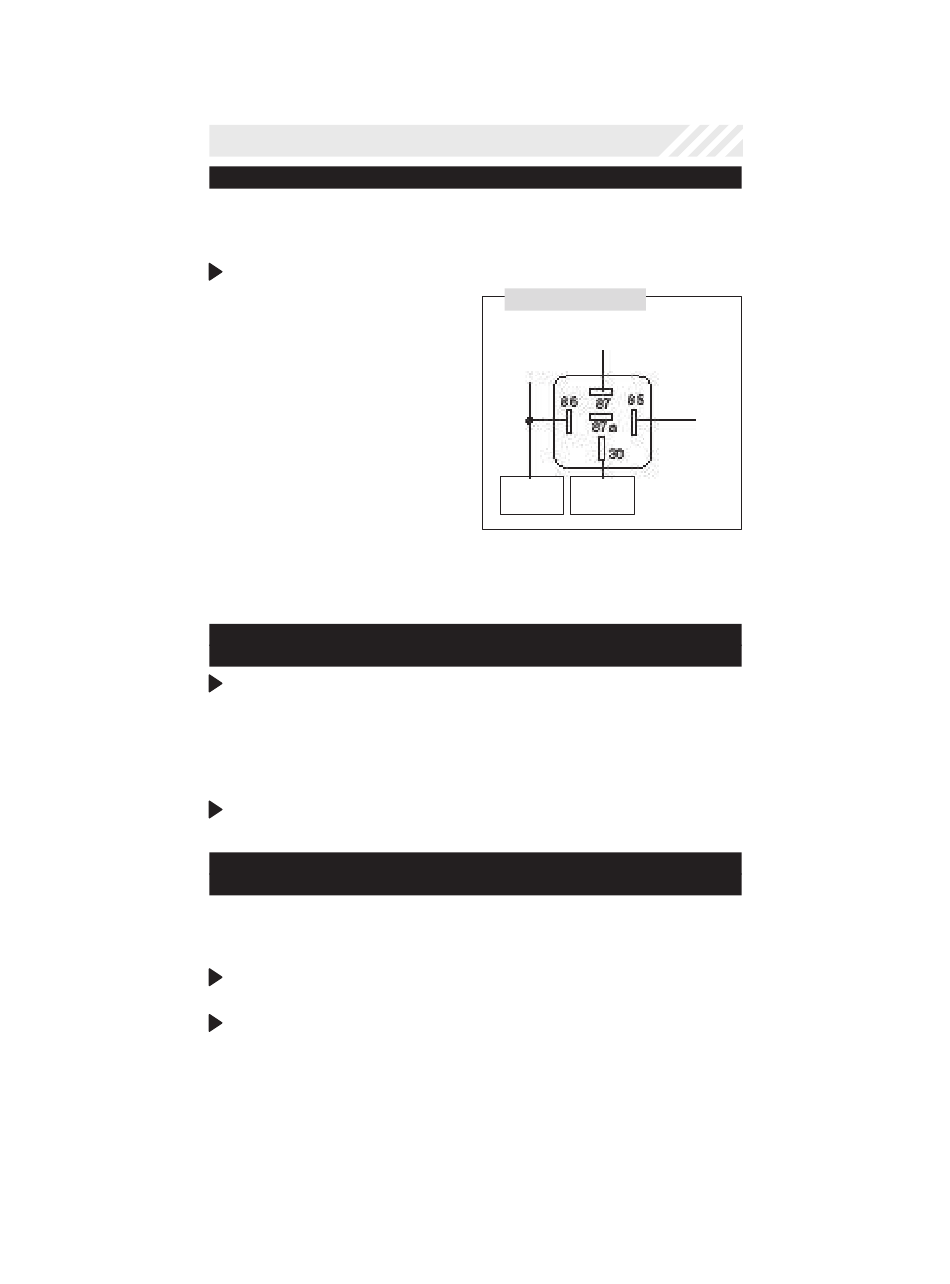

Connecting To a Third Ignition/
Heater Wire
Some vehicles may require
connection to more than two
ignition or heater wires. If so,
use a 30- amp SPDT or
SPDT relay (not supplied),
and connect as shown in
the diagram (Diagram 12).
Note: Never "jump" vehicle
ignition or heater wires
together!
4/C HVAC1 Output (14 AWG +) (ORANGE)
2/C Battery (#14 AWG) (RED)
Connect the 4/C wire to the vehicle heater / accessory wire at the
ignition switch.
Verification: This wire registers voltage when the key is turned to
the ON (or RUN) position, but not the ACC (Accessory) position.
The voltage drops when the key is turned to the START (or
CRANK) position.
Connect 2/C to a main power wire at the ignition switch, preferably
to a wire other than the 4/B main power connection.
5/C HVAC 2 Output (14 AWG+) (ORANGE/WHITE)
1/C HVAC 2 Polarity Input (14 AWG) (BLUE)
Note: Use these wires if the vehicle requires connection to a
second heater/AC circuit for the vehicle to operate properly during
remote start.
Connect the 5/C HVAC 2 output wire to the second heater/AC wire
at the ignition switch.
Connect the 1/C wire to a main power wire at the ignition switch,
preferably to a wire other than the 4/B main power connection.
12
630.p65
Diagram 12
To 3/C
or
4/C
To Second
Ignition /
Heater Wire Heater Wire
12
12V+
Constant
10/C
Active
Out
To Third
Ignition /
10/17/03, 7:29 PM
