9. Mounting the Module / Finishing the Installation
Perform System Test (page 19-22) before and after
1. Use the supplied long tie wraps to mount the module to a brace or
wire harness under the dash. The module and harnesses must be
clear of moving parts.
2. Completely uncoil the antenna and route up the nearest front
window pillar to the headliner. Be careful not to pinch the antenna
under vehicle panels, or route near moving parts.
3. Route the antenna across the headliner to a position behind the
rearview mirror.
4. Attach the antenna to the inside of the windshield behind the
rearview mirror:
• The glass surface must be clean before mounting antenna.
Use rubbing alcohol to thoroughly clean the mounting location.
• Remove protective backing and press firmly against windshield.

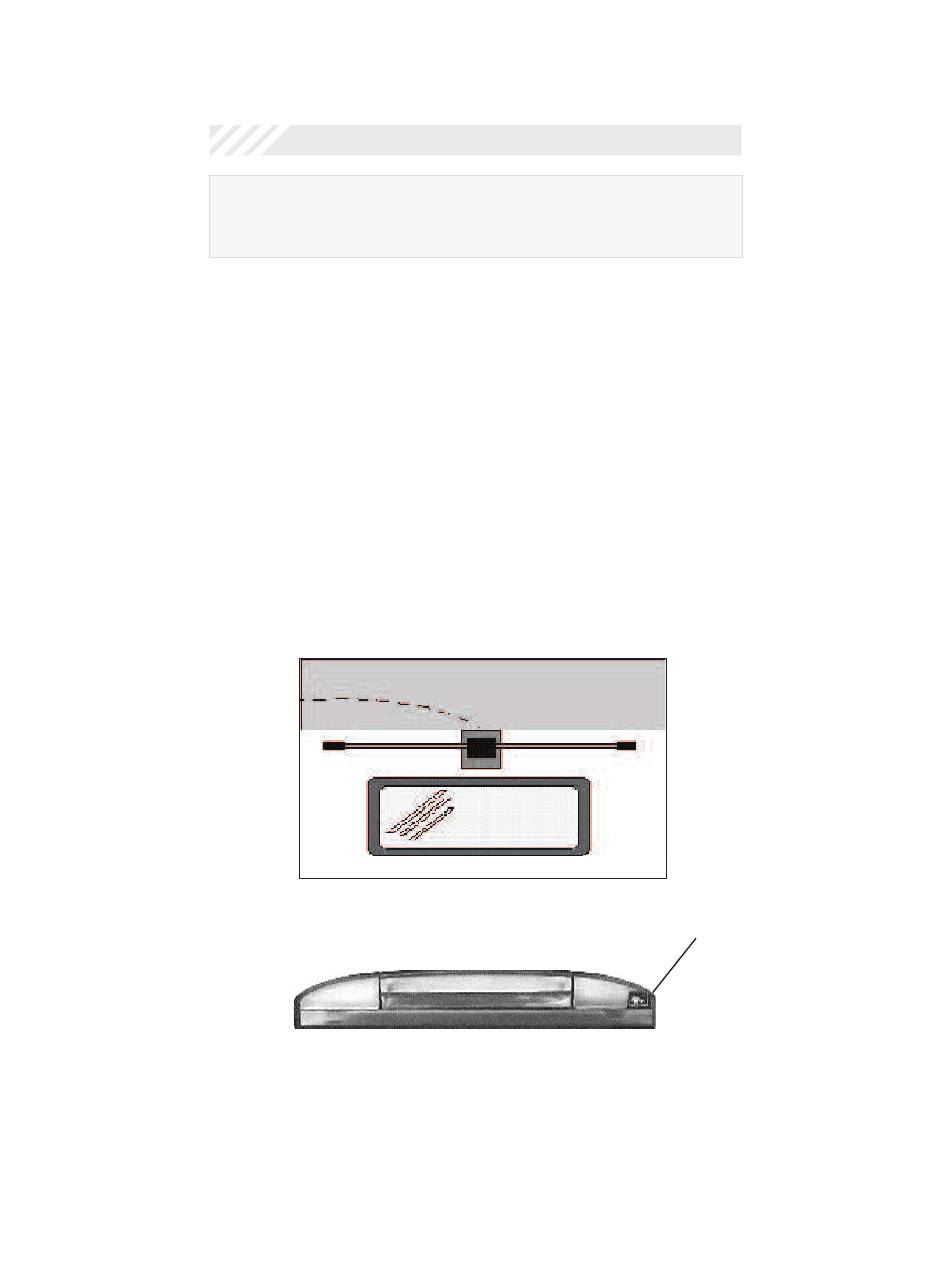

• Antenna should be mounted as shown below.
5. Plug antenna into the Antenna Plug located in the back of module
as shown below.
