- Page 1 PROFESSIONAL SERIES Security and Remote Start Installation Guide for models: CA 6150 CA 6550 2009 Audiovox Electronics Corporation. All rights reserved.
-
Page 2: Table Of Contents
Table of Contents Before You Begin ..................4 Wire Connection Guide ................5 5 Pin Main Harness ................... 7 6 Pin Start Harness ................... 8 6 Pin Output Harness ................10 8 Pin Input Harness ................. 11 2 Pin Door Lock Output Harness ............14 Additional Ports .................. -
Page 3: Audiovox Electronics Corporation. All Rights Reserved
Feature Descriptions ................23 Transmitter Button Functions ............. 27 Security Trigger Zones ................. 28 Remote Start Shutdown Diagnostics ..........28 System Layout ..................29 2009 Audiovox Electronics Corporation. All rights reserved. -
Page 4: Before You Begin
BEFORE YOU BEGIN PROFESSIONAL INSTALLATION STRONGLY RECOMMENDED Installation Precautions: Roll down window to avoid locking keys in vehicle during installation Avoid mounting components or routing wires near hot surfaces Avoid mounting components or routing wires near moving parts Tape or loom wires under hood for protection and appearance Use grommets when routing wires through metal surfaces... -
Page 5: Wire Connection Guide
5 Pin Main Harness 6 Pin Start Harness 6 Pin Output Harness 2009 Audiovox Electronics Corporation. All rights reserved. -
Page 6: Pin Input Harness
8 Pin Input Harness 3 Pin Lock Output Harness 2009 Audiovox Electronics Corporation. All rights reserved. -
Page 7: Pin Main Harness
5 Pin Main Harness WHITE/RED PARKING LIGHT INPUT WHITE PARKING LIGHT OUTPUT Locate the parking light output wire at the vehicle’s light switch. Verification: This wire registers positive voltage when the parking lights are turned on. Positive switching Parking Lights: Connect the WHITE/RED wire to a 15 Amp max fused battery source. -
Page 8: Pin Start Harness
BATTERY 12V ( + ) Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch. Verification: This wire will register ( + ) voltage in all positions of the ignition switch. Connect the RED wire to the constant 12 Volt battery wire. NOTE: Remove all fuses until all connections are made. - Page 9 BATTERY 12V ( + ) Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch. Verification: This wire will register ( + ) voltage in all positions of the ignition switch. Connect the RED wire to the constant 12 Volt battery wire. NOTE: Remove all fuses until all connections are made.
-
Page 10: Pin Output Harness
6 Pin Output Harness BROWN/BLACK HORN OUTPUT ( - ) Locate the vehicle’s horn wire. Verification: This wire will register at positive voltage and register ground when the horn switch is pressed. Connect the BROWN/BLACK wire to the vehicle’s horn wire. This is a low current output, 500mA. -
Page 11: Pin Input Harness
VIOLET/BLACK AUX 1 This wire provides a ( - ) 500mA output capable of driving relays. For Control of optional accessories (i.e. Power Window/Sunroof, etc.). To activate refer to the transmitter button configuration chart. Please refer to the selectable options for timing. RED/WHITE TRUNK RELEASE OUTPUT ( - ) Locate the vehicle’s trunk release wire at the trunk release switch. - Page 12 GREEN DOOR TRIGGER INPUT ( - ) Locate the vehicle’s dome light or door pin switch wire. Verification: This wire will register ground (NEG) when the door is opened and the interior light is on. This wire will register positive voltage when the door is closed and the interior light is off.
- Page 13 BLACK/WHITE NEUTRAL SAFETY INPUT ( - ) Locate the vehicle’s neutral safety circuit. Verification: This wire registers ( - ) voltage when the vehicle’s gear selector is in park or neutral. Connect the BLACK/WHITE neutral safety input wire to the neutral safety wire of the vehicle or an optional toggle switch.
-
Page 14: Pin Door Lock Output Harness
3 Pin Lock Output Harness BLUE UNLOCK ( - ) GREEN LOCK ( - ) The door lock / unlock outputs are designed to control several different types of systems which may require additional parts. Please review the wire and location chart to see which type of door lock system is in your vehicle. - Page 15 Positive Switching Locks All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock / unlock switch. Verification: These wires will register positive voltage when the Lock and Unlock switches are activated. Connect the GREEN and BLUE wires shown in the diagram below. Positive Locks: Fused +12 Volt Battery Souce...
- Page 16 Negative Multiplexed Locks All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle’s lock / unlock switch. Verification: This wire will show variable ground when the switch is activated. Please consult the wire and location chart for specific resistor values for your vehicle.
- Page 17 Adding Aftermarket Actuators After installing aftermarket actuators, (not supplied). Connect the GREEN and BLUE wires shown in the diagram below using (2) SPDT relays (not supplied). Fused +12 Volt Battery Source Door Lock GREEN (-) Lock Output Actuator Chassis Ground Fused +12 Volt Battery Source BLUE (-) Unlock Output...
-
Page 18: Additional Ports
Additional Ports Antenna / LED / Programming Port Mount the supplied antenna/receiver to a clear spot on the vehicle's windshield that will not block the driver's vision. A good location is usually high on the windshield near the rear view mirror. Be careful not to mount the antenna/receiver on any metallic window film, as this will effect system range. -
Page 19: Set Up & Programming
Set Up & Programming Transmitter Programming - Feature Bank 1 1. Turn the ignition ON. 2. Press and hold the valet/override button. 3. Within 10 seconds the system will chirp (3) three times. 4. Press 1 button of each transmitter you wish to program. 5. -
Page 20: Programming Feature Banks
Defaulting All Features: Pressing the button anytime while in any of the feature banks will default all features and return you to feature bank 2 - 4 chirps. NOTE: The system will remain in feature programming mode as long as the ignition is on, there is no time limit. -
Page 21: Tach Programming
Tach Programming The unit will not operate unless tach is programmed or tachless option is turned ON. If an attempt is made to start the vehicle via the remote start without first programming tach, the unit will flash the parking lights 7 times indicating tach has not been learned and stored. -
Page 22: Adjusting The Shock Sensor
NOTE: If the unit fails to learn tach rate due to an improper tach connection or a poor tach source, the parking lights will not flash. To correct this situation, locate and connect the PURPLE/WHITE wire to the proper tach signal, and then repeat the tach learn routine. -
Page 23: Feature Descriptions
Feature Descriptions Feature Bank 2 - Security 1 - Silent Choice: Controls the normal arm/disarm chirps of the security system. ON - Silent arming/disarming upon first press of lock/unlock, pressing lock/ unlock a second time will activate the arm/disarm chirps respectively. The system will only sound the arm/disarm chirps upon a second press of the lock/unlock buttons. - Page 24 Feature Bank 3 - Output Control 1 - Extended Lock Pulse: Controls the timing of the BLUE and GREEN lock output wires. 1 Second - Single 1 second lock pulse, single 1 second unlock pulse. 3.5 Seconds - Single 3.5 second lock pulse, single 3.5 second unlock pulse. 1 Second Lock, Double Pulse Unlock - Single 1 second lock pulse, double 1 second unlock pulse.
- Page 25 6 - AUX 1: Controls the VIOLET/BLACK AUX 1 output activation type and timing. Push and Hold - Output is continuously active until transmitter button is released. Latched - Output stays active until button is pressed again. Latched until IGN ON - Output stays active until the ignition is turned on. Dome Light Output - Output is used for illuminated entry and is not controlled by the AUX 1 function of the transmitter.
- Page 26 5 - Voltage Level: The voltage variance for remote start when set to tachless. (see tach mode) HIGH - The variance in battery voltage from before the remote start is activated to after the engine is running must be greater than 0.5 volts. LOW - The variance in battery voltage from before the remote start is activated to after the engine is running may be less than 0.5 volts.
-

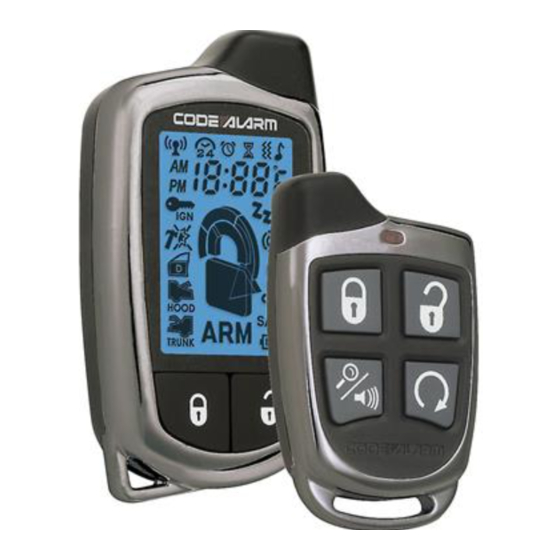

Page 27: Transmitter Button Functions
11 - 2 or 3 Hour Start: When activated, the remote start will activate and run for the programmed time and shut down every 2 or 3 hours. 12 - Turbo Timer: When activated, the vehicle will run for the programmed time. 1 Minute 3 Minutes 5 Minutes... -
Page 28: Security Trigger Zones
Security Trigger Zones If the security system has been triggered the LED will flash one of the patterns below indicating the zone. LED FLASHES TRIGGER ZONE 2 Flashes Hood / Trunk Input 3 Flashes Door Input 4 Flashes Shock Sensor 5 Flashes Ignition Input Remote Start Shutdown Diagnostics... -
Page 29: System Layout
CA 6150 / CA 6550 2009 Audiovox Electronics Corporation. All rights reserved. - Page 30 Audiovox Electronics Corporation. Customer Service 1-800-421-3209 WWW.CODE-ALARM.COM FCC COMPLIANCE This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
