Code Alarm ca6553 Owner's Manual

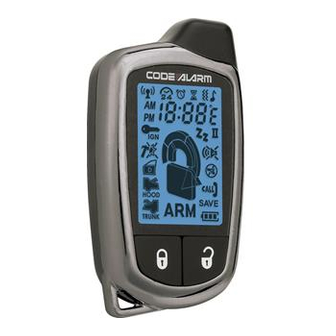

Professional series deluxe vehicle security and remote start system with 2 way confirming lcd remote control
Hide thumbs
Table of Contents

Advertisement

Quick Links

PROFESSIONAL
SERIES
Owner's Guide
For Models:
ca6553
ca6553sst
Deluxe Vehicle Security and
Remote Start System with 2 Way
Confirming LCD Remote Control
IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is
applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR
SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information.
2012 Audiovox Electronics Corporation. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ca6553 and is the answer not in the manual?

Questions and answers

Related Manuals for Code Alarm ca6553

Summary of Contents for Code Alarm ca6553

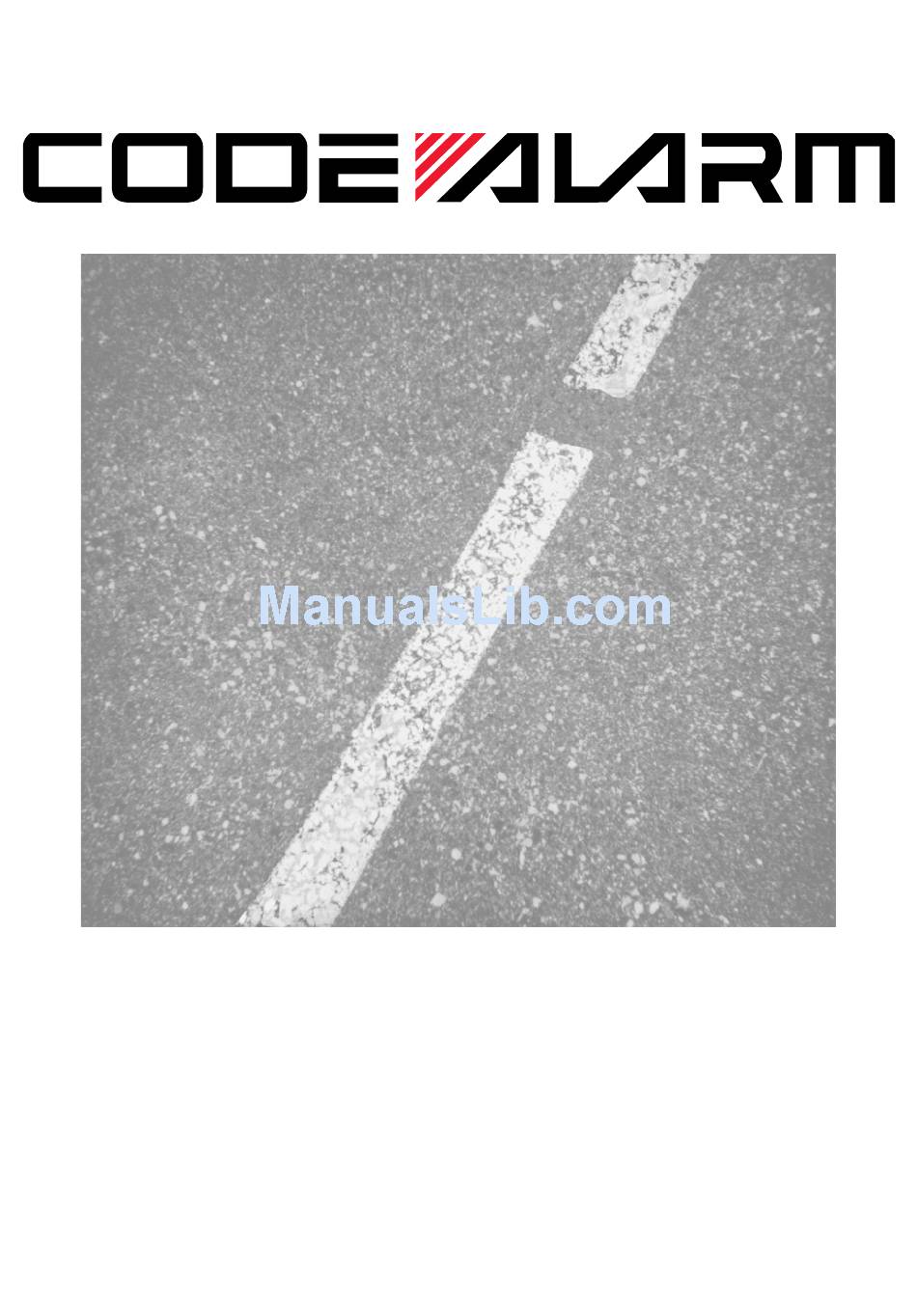

  • Page 1 PROFESSIONAL SERIES Owner’s Guide For Models: ca6553 ca6553sst Deluxe Vehicle Security and Remote Start System with 2 Way Confirming LCD Remote Control IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR SAFETY PRECAUTIONS may not apply.

  • Page 2: Table Of Contents

    Remote Start Safety Features ............10 LED and Siren/Horn Indications ............11 Additional 2-Way LCD Remote Control Functions ...... 12 LCD Remote Control ICON’s ............14 Transmitter Button Functions ............15 Replacing Remote Control Batteries ..........17 Warranty Information ................. 18 ca6553/6553sst revA...

  • Page 3: Using Your Remote Control

    Using Your Remote Control Arming the Security System To arm the system, exit the vehicle, close all doors, then press the button. The parking lights will flash 2 times, indicating the system is armed, has locked the doors (if equipped and connected) and activated the starter disable feature. The LED status indicator will blink steadily, once per second.

  • Page 4: Two Stage Door Unlock (Optional)

    Activating outputs while in AUX Mode: AUX 2: Press and Hold for 3 seconds. AUX 3: Press and Hold for 3 seconds. AUX 4: Press and Hold for 3 seconds. AUX 5: Press and Hold for 3 seconds. ca6553/6553sst revA...

  • Page 5: Using The Progressive Car Finder Feature

    Using the Progressive Car Finder Feature Press the button to locate your vehicle. The system will flash the parking lights and sound 5 times at low volume, increasing in volume each time the button is pressed. Using the Personal Protection Alarm (Panic) Press and hold the button for 3 seconds to activate the personal protection alarm.

  • Page 6: Manually Overriding The Security System

    THE SYSTEM WILL REMAIN IN THIS STATE UNTIL THE BATTERY IS DEPLETED. OVERRIDE THE SYSTEM TO TURN OFF CAR JACK MODE: Turn the ignition OFF then On and press the valet button within 10 seconds. ca6553/6553sst revA...

  • Page 7: Using Your Remote Vehicle Starter

    Using Your Remote Vehicle Starter Remote Starting Your Vehicle To activate the remote vehicle start function, press and release the button 2 times within 2 seconds. The system will sound, the parking lights will flash 1 time and the system will check the vehicle to ensure it is safe to start. If all safety parameters are correct, the vehicle will start within 5 seconds.

  • Page 8: User Programmable Run Time / Run Time Extension

    Be certain that the vehicle is outdoors before using this or any remote starting device. A running engine produces dangerous carbon monoxide fumes which can be harmful or fatal if prolonged exposure occurs. DO NOT remote start the vehicle if it is garaged. ca6553/6553sst revA...

  • Page 9: Turbo Timer Mode (Optional)

    To begin the 2 / 3 hour start up timer mode: Turn the vehicle’s ignition ON then OFF. Press and hold the valet button. Press the button 4 times, the system will; When set for 3 Hour (default) - chirp 2 times and flash the parking lights 4 times.

  • Page 10: Operating The Daily Start Timer

    The vehicle hood is open. The brake pedal is pressed prior to turning the ignition key to the ON position. The engine is over-revved (tach checking only). Valet mode is active. ca6553/6553sst revA...

  • Page 11: Led And Siren/Horn Indications

    LED and Siren/Horn Indications LED Display Indications Function DISARMED SLOW FLASH ARMED FAST FLASH PASSIVE ARMING ON (SOLID) VALET MODE 2 FLASH... PAUSE ZONE 2 TRIGGER, HOOD/TRUNK 3 FLASH... PAUSE ZONE 3 TRIGGER, DOOR 4 FLASH... PAUSE ZONE 4 TRIGGER, SHOCK 5 FLASH...

  • Page 12: Additional 2-Way Lcd Remote Control Functions

    To stop the alarm trigger melody if the system has been triggered WITHOUT disarming the system, press any button one time only, this will not send a command to the vehicle at this time and the alarm will continue to sound. ca6553/6553sst revA...
  • Page 13 Button Lock Press and release then press hold the for 2 seconds to toggle the button lock on or off. When the button lock is active, the remote control will beep/vibrate 2 times when a button is pressed indicating it is locked. Illumination Press and release 2 times then press and hold...

  • Page 14: Lcd Remote Control Icon's

    BATTERY SAVE MODE MELODY MODE VIBRATE/SILENT MODE TIME DISPLAY 2 CAR MODE ALARM CLOCK ENGINE RUNNING TIMER / TEMP. AUX MODE START MODES AUX 2 OUTPUT AUX 1 OUTPUT AUX 3 OUTPUT AUX 4 OUTPUT AUX 5 OUTPUT ca6553/6553sst revA...

  • Page 15: Transmitter Button Functions

    Transmitter Button Functions 1 Way Car Find / Lock Unlock Start Operation Method Transmitter Panic Lock Press and Release Unlock Press and Release 2 Step Unlock Press and Release 2 times Trunk Push and Hold (3 Sec) Car Finder Press and Release Panic Push and Hold (3 Sec) Press and Release (1 or 2 times...
  • Page 16 Press and Hold F for 2 seconds Enter AUX Mode LCD displays AU AUX 2 Push and Hold (3 Sec) AUX 3 Push and Hold (3 Sec) AUX 4 Push and Hold (3 Sec) AUX 5 Push and Hold (3 Sec) ca6553/6553sst revA...

  • Page 17: Replacing Remote Control Batteries

    Replacing Remote Control Batteries 1 Way 4 Button Remote Control - ca6553 / ca6553SST (catxmt / catxmss) The batteries inside each remote control should last approximately 1 year under normal use. When the batteries become weak you will notice the remote control range (the distance from the vehicle the remote control will work) deteriorate and the small LED on the remote control will dim.

  • Page 18: Warranty Information

    Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state ca6553/6553sst revA...
  • Page 19 2012 Audiovox Electronics Corporation. All rights reserved.
  • Page 20 2. This device must accept any interference received, including any interference that may cause undesired operation. Warning! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ca6553/6553sst revA...

This manual is also suitable for:

Ca6553sst
