1. Basic Harness (B),
Refer to Diagram 2 to connect to the vehicle's drivers unlock wire.

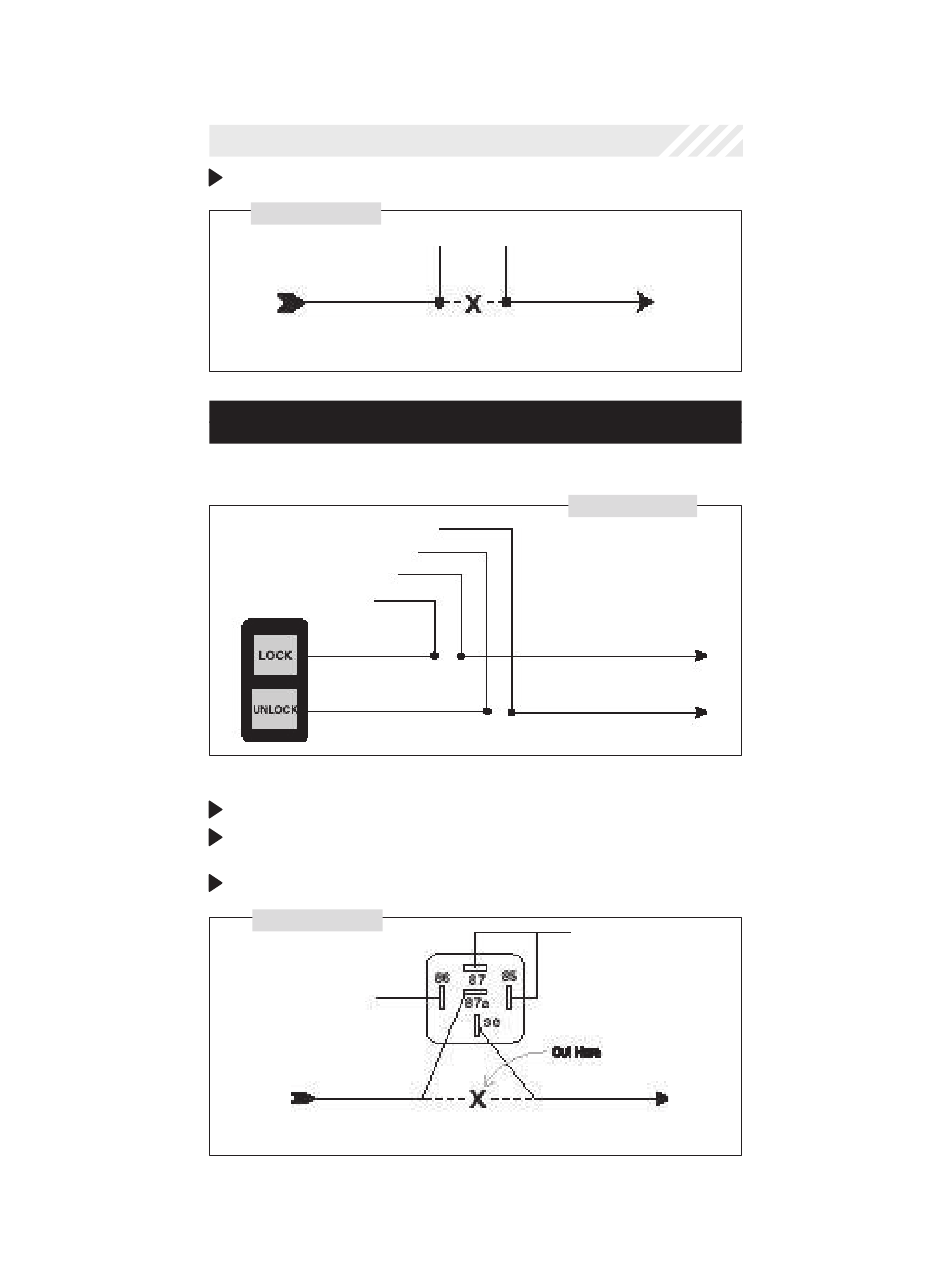

Diagram 2
From driver's
Door Unlock Relay only
Type 2: Positive 5-Wire Door Lock System
Polarity fuse = Positive (+)
Single-Stage Unlock
Unlock Motor 14/B
Unlock Switch 3/A
Lock Motor 2/B
Lock Switch 1/A
Vehicle Master Switch
Two-Stage Unlock
Connect wires 2/B, 1/A as shown in Diagram 3 (above).
Use a SPDT relay ( Not Supplied) and connect the 24/B wire to the
vehicle's unlock wire as shown in Diagram 4 (below).
Connect wires 14/B, 3/A as shown in Diagram 2 (above).
Diagram 4
24/B
From Door Unlock
Switch or Relay
4
630.p65
cont'd
Wires from control module
14/B
3/A
Unlock Unlock Motor
Switch
Cut
To Door Lock Motors
To Door Unlock
Motor
4
To driver's
Door Motor only
Diagram 3
Fused +12v
